EAST1616RGBA8 footprint, schematic symbol and 3D model by Everlight

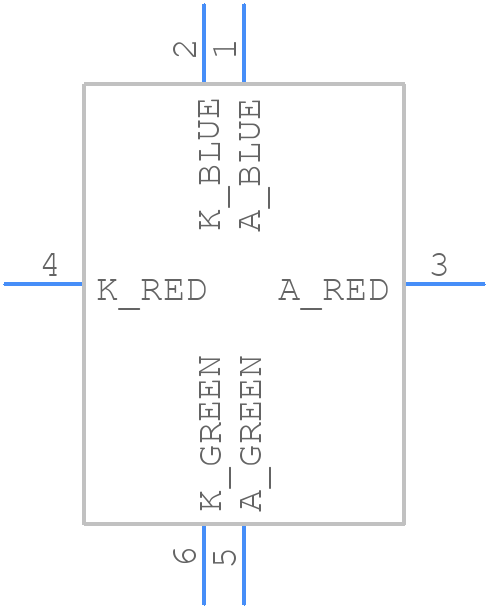

Symbol

PCB Footprints

3D Models

EAST1616RGBA8 Details

The recommended storage temperature range for the EAST1616RGBA8 is -40°C to 100°C.
Yes, the EAST1616RGBA8 is suitable for outdoor applications, but it's recommended to use a protective coating or enclosure to prevent moisture and UV damage.
The maximum current rating for each LED in the EAST1616RGBA8 is 20mA, but it's recommended to operate at a maximum of 15mA for optimal performance and lifespan.
To ensure proper soldering, use a soldering iron with a temperature range of 250°C to 300°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the LEDs.
Yes, the EAST1616RGBA8 is designed to withstand moderate vibration, but it's recommended to use a secure mounting method and ensure the module is properly secured to prevent damage.

Expert Contribution

System Verified

Community Approved

Use the download button to access the EAST1616RGBA8 schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like EAST1, or try a keyword search, such as Visible LEDs
