EAW0J-B24-CE0128L - Bourns

Description: Rotary Encoder Mechanical 128 Binary (Absolute) Vertical

Download EAW0J-B24-CE0128L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

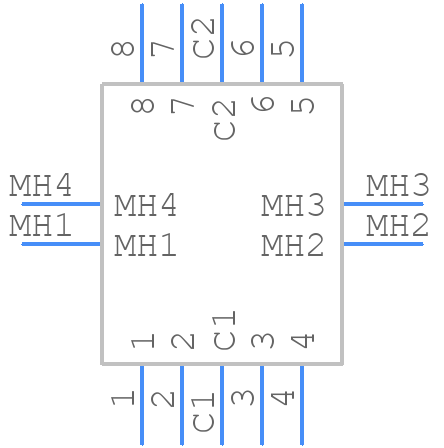

Symbol
EAW0J-B24-CE0128L - Bourns - PCB symbol
click to zoom

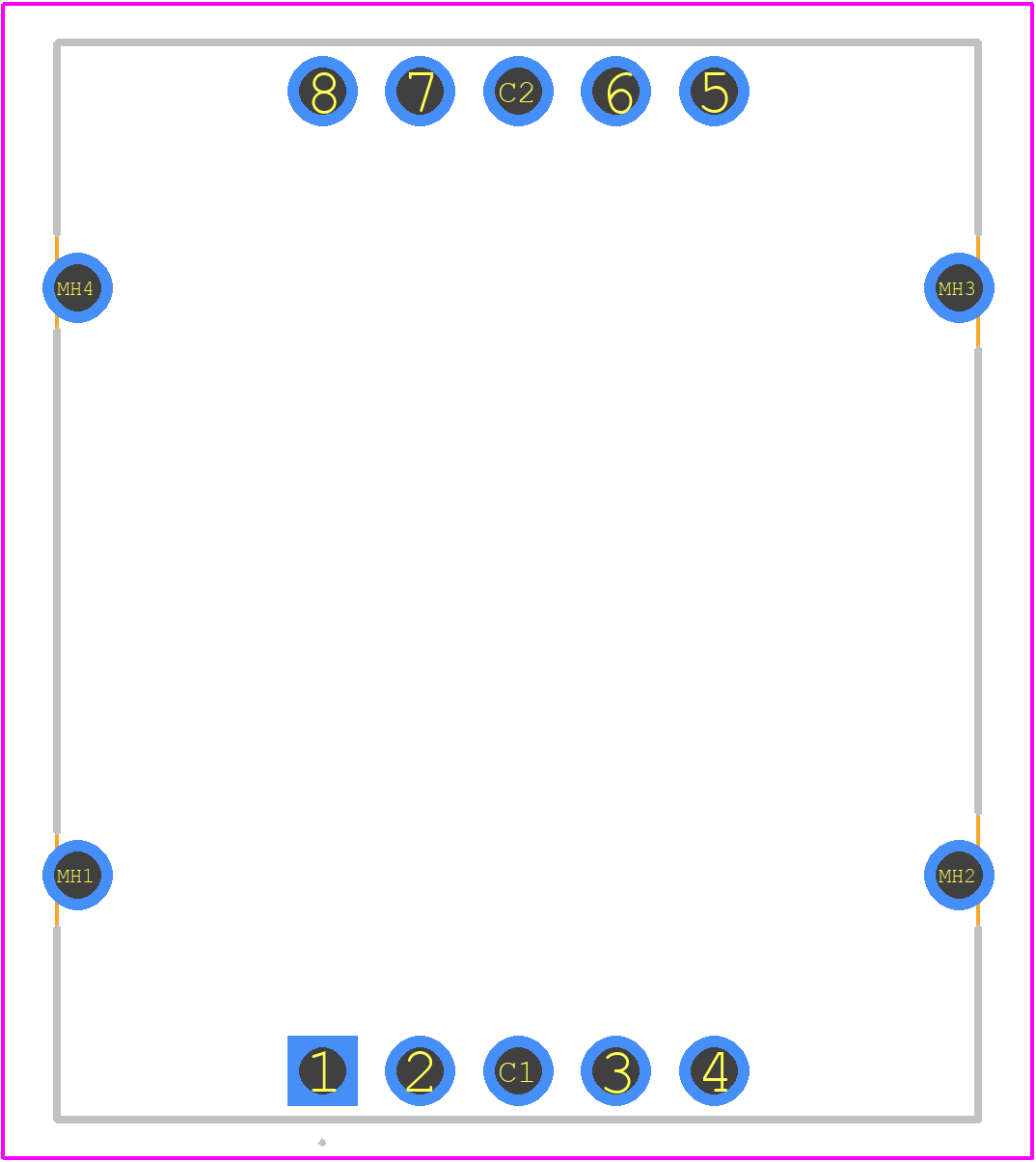

PCB Footprints
EAW0J-B24-CE0128L - Bourns PCB footprint - Other - Other - EAW0J-B24-CE0128L-6
click to zoom
3D Models
EAW0J-B24-CE0128L - Bourns - 3D model - Other - EAW0J-B24-CE0128L-6
click to zoom

EAW0J-B24-CE0128L Details

  • Manufacturer Part Number:

    EAW0J-B24-CE0128L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Bourns Inc

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

  • Terminal Finish:

    TIN

EAW0J-B24-CE0128L Frequently Asked Questions (FAQs)

  • The recommended soldering temperature is 260°C (500°F) with a maximum soldering time of 3 seconds. It's essential to follow the recommended soldering profile to prevent damage to the component.
  • The EAW0J-B24-CE0128L is designed to withstand vibrations up to 10G (10 Hz to 2 kHz). However, it's recommended to perform additional testing and validation for specific vibration profiles to ensure the component meets the required specifications.
  • Store the EAW0J-B24-CE0128L in a dry, cool place (below 30°C/86°F and 60% RH). Avoid exposing the component to direct sunlight, moisture, or extreme temperatures. Handle the component by the body, avoiding touching the pins or electrical contacts.
  • Yes, the EAW0J-B24-CE0128L is AEC-Q200 qualified, making it suitable for automotive applications. However, it's essential to verify the component's specifications meet the specific requirements of the automotive system.
  • The typical lead time for the EAW0J-B24-CE0128L is 8-12 weeks. The minimum order quantity varies depending on the distributor or supplier, but it's typically 1,000 pieces. It's recommended to check with authorized distributors or Bourns Inc for the most up-to-date information.
