EAW0J-C24-AE0128L - Bourns

Description: Rotary Encoder Mechanical 128 Binary (Absolute) Vertical

Download EAW0J-C24-AE0128L Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EAW0J-C24-AE0128L - Bourns - PCB symbol
click to zoom
PCB Footprints

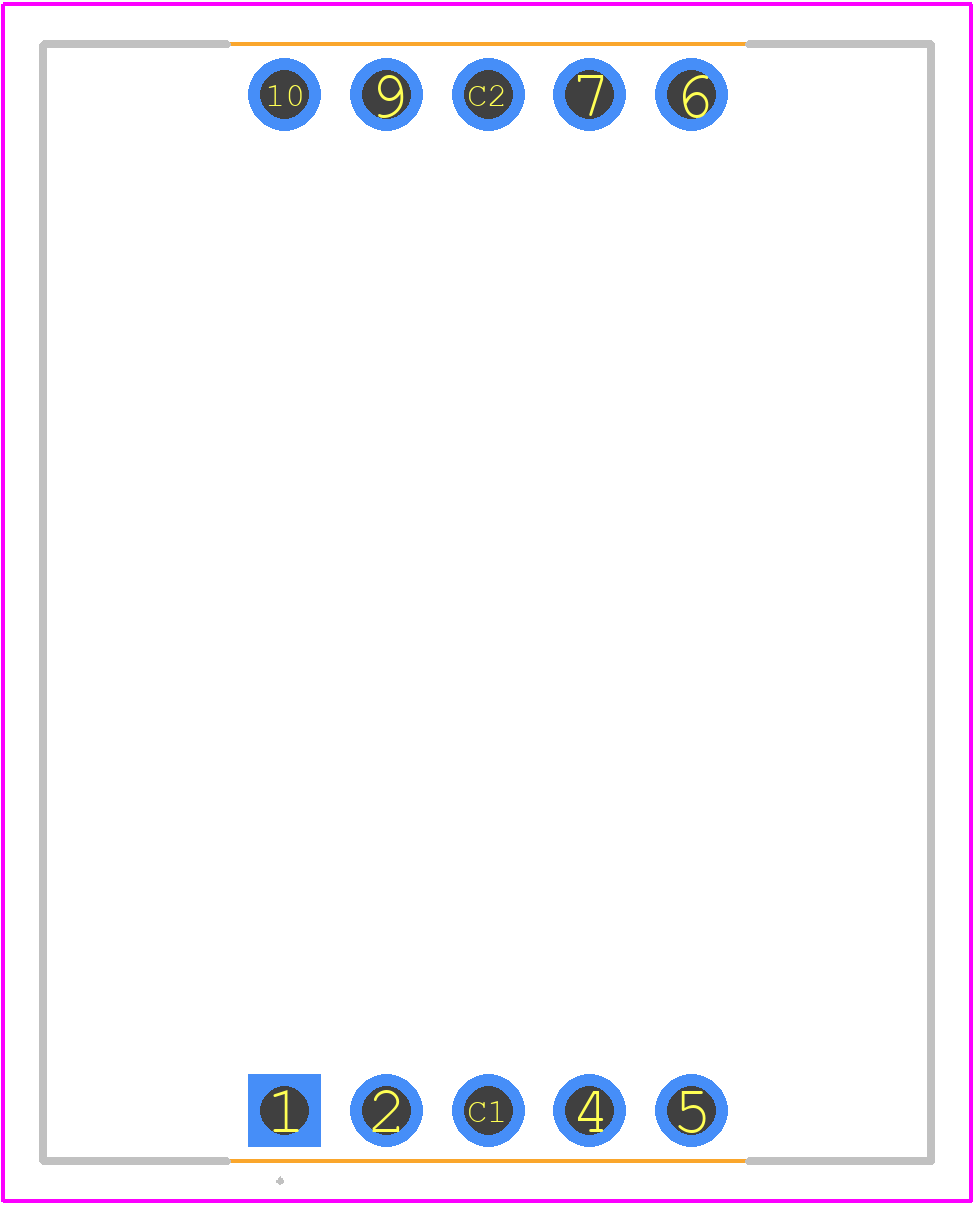

EAW0J-C24-AE0128L - Bourns PCB footprint - Other - Other - EAW0J-C24-AE0128L-1
click to zoom
3D Models
EAW0J-C24-AE0128L - Bourns - 3D model - Other - EAW0J-C24-AE0128L-1
click to zoom

EAW0J-C24-AE0128L Details

  • Manufacturer Part Number:

    EAW0J-C24-AE0128L

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT PACKAGE-10

  • Country Of Origin:

    Mexico

  • Factory Lead Time:

    4 Weeks

  • Manufacturer:

    Bourns Inc

  • JESD-609 Code:

    e3

  • Number of Functions:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Optoelectronic Device Type:

    ROTARY POSITION ENCODER

  • Terminal Finish:

    TIN

EAW0J-C24-AE0128L Frequently Asked Questions (FAQs)

  • The operating temperature range of the EAW0J-C24-AE0128L is -40°C to 125°C.
  • Yes, the EAW0J-C24-AE0128L is RoHS compliant, meaning it meets the European Union's Restriction of Hazardous Substances directive.
  • The recommended storage temperature is -40°C to 30°C, and the recommended storage humidity is 60% RH or less.
  • Yes, the EAW0J-C24-AE0128L is designed to withstand high-vibration environments, making it suitable for use in industrial, automotive, and other applications where vibration is a concern.
  • Yes, the EAW0J-C24-AE0128L is designed and manufactured to meet the requirements of high-reliability applications, such as aerospace, defense, and medical devices.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EAW0J-C24-AE0128L Overview

Use the download button to access the EAW0J-C24-AE0128L schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EAW0J, or try a keyword search, such as Optical Position Encoders
