EB167A-03-M-180 - Adam Tech

Description: Pluggable Terminal Blocks EURO BLOCK, 3 POSITION

Download EB167A-03-M-180 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EB167A-03-M-180 - Adam Tech - PCB symbol
click to zoom
PCB Footprints

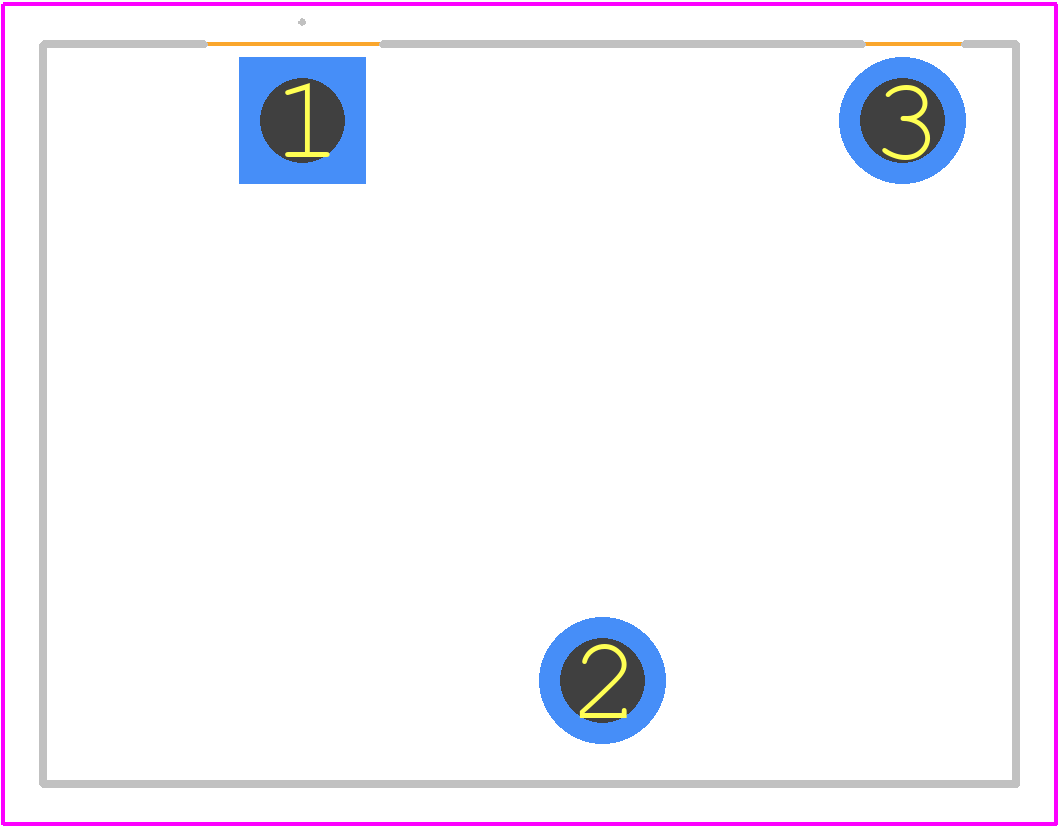

EB167A-03-M-180 - Adam Tech PCB footprint - Other - Other - EB167A-03-M-180-2
click to zoom
3D Models
EB167A-03-M-180 - Adam Tech - 3D model - Other - EB167A-03-M-180-2
click to zoom

EB167A-03-M-180 Details

  • Manufacturer Part Number:

    EB167A-03-M-180

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: UL 94V-0, PA

  • Fastening Method:

    SPRING CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    3

  • Rated Current:

    40 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    8.37 mm2

  • Wire Gauge:

    8 AWG

EB167A-03-M-180 Frequently Asked Questions (FAQs)

  • The recommended storage temperature for EB167A-03-M-180 is -40°C to 100°C, as per the manufacturer's guidelines.
  • Yes, the EB167A-03-M-180 component is RoHS (Restriction of Hazardous Substances) compliant, meaning it meets the European Union's directive on the restriction of certain hazardous substances in electrical and electronic equipment.
  • The operating temperature range for EB167A-03-M-180 is -40°C to 85°C, as specified in the datasheet.
  • While the datasheet doesn't explicitly mention vibration tolerance, Adam Technologies Inc recommends consulting their application notes or contacting their support team for guidance on using the component in high-vibration environments.
  • The EB167A-03-M-180 component is not specifically designed for automotive applications, but it can be used in certain automotive systems. However, it's essential to consult with Adam Technologies Inc's support team to ensure the component meets the specific requirements of your automotive application.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EB167A-03-M-180 Overview

Use the download button to access the EB167A-03-M-180 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EB167, or try a keyword search, such as Terminals and Terminal Blocks
