EB171A-04-H footprint, schematic symbol and 3D model by Adam Tech

Symbol

click to zoom

PCB Footprints

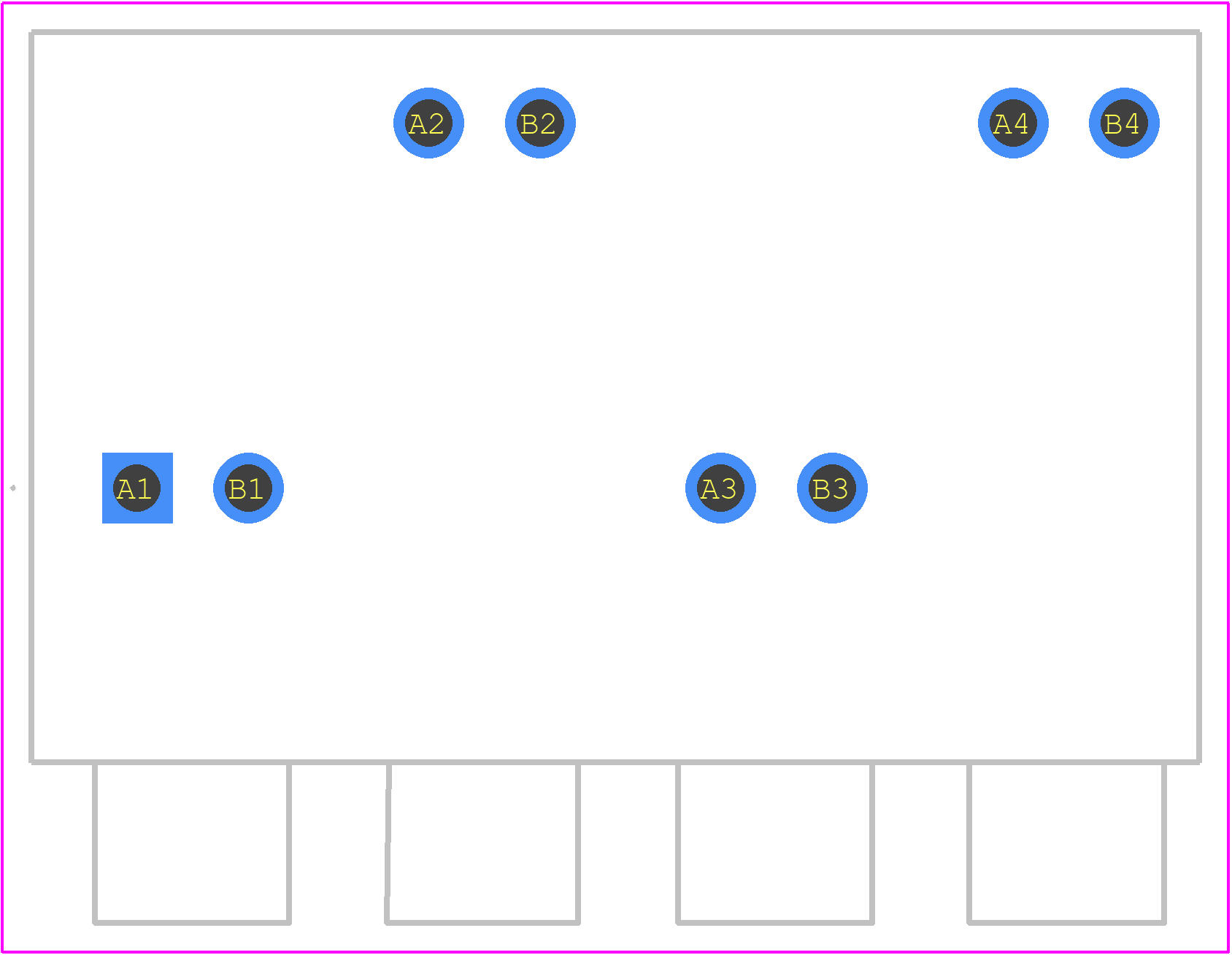

EB171A-04-H - Adam Tech PCB footprint - Other - Other - EB171A-04-H-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EB171A-04-H
Part Number EB171A-04-H
Manufacturer Adam Tech
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - EB171A-04-H-1
Released Date Sep 20, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EB171A-04-H Details

Manufacturer Part Number:
EB171A-04-H
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.90.40.00
Manufacturer:
Adam Technologies Inc
YTEOL:
7.3
Additional Feature:
STANDARD: 94V-0, PA
Fastening Method:
SPRING CLAMP
Mounting Type:
BOARD
Number of Decks:
1
Number of Rows:
1
Number of Ways:
4
Rated Current:
51 A
Rated Voltage:
600 V
Safety Approval:
UL
Terminal and Terminal Block Type:
BARRIER STRIP TERMINAL BLOCK
Wire Cross Section:
21.2 mm2
Wire Gauge:
4 AWG

EB171A-04-H Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.0 in-lbs).
Yes, the connector is rated IP67, making it suitable for outdoor use and able to withstand harsh environmental conditions.
The maximum operating temperature range for the EB171A-04-H connector is -40°C to 105°C (-40°F to 221°F).
Yes, the EB171A-04-H connector is designed to withstand high-vibration applications, with a vibration rating of 10-2000 Hz, 10G peak acceleration.
Yes, the EB171A-04-H connector meets UL (UL 1977) and CE (EN 61984) standards for safety and performance.

Trust Checks

Community Provided

System Verified

Community Approved

EB171A-04-H Overview

Use the download button to access the EB171A-04-H schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like EB171, or try a keyword search, such as Terminals and Terminal Blocks
