EB171A-05-H - Adam Tech

Description: 5 Position Wire to Board Terminal Block Horizontal with Board 0.394" (10.00mm) Through Hole

Download EB171A-05-H Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EB171A-05-H - Adam Tech - PCB symbol
click to zoom
PCB Footprints

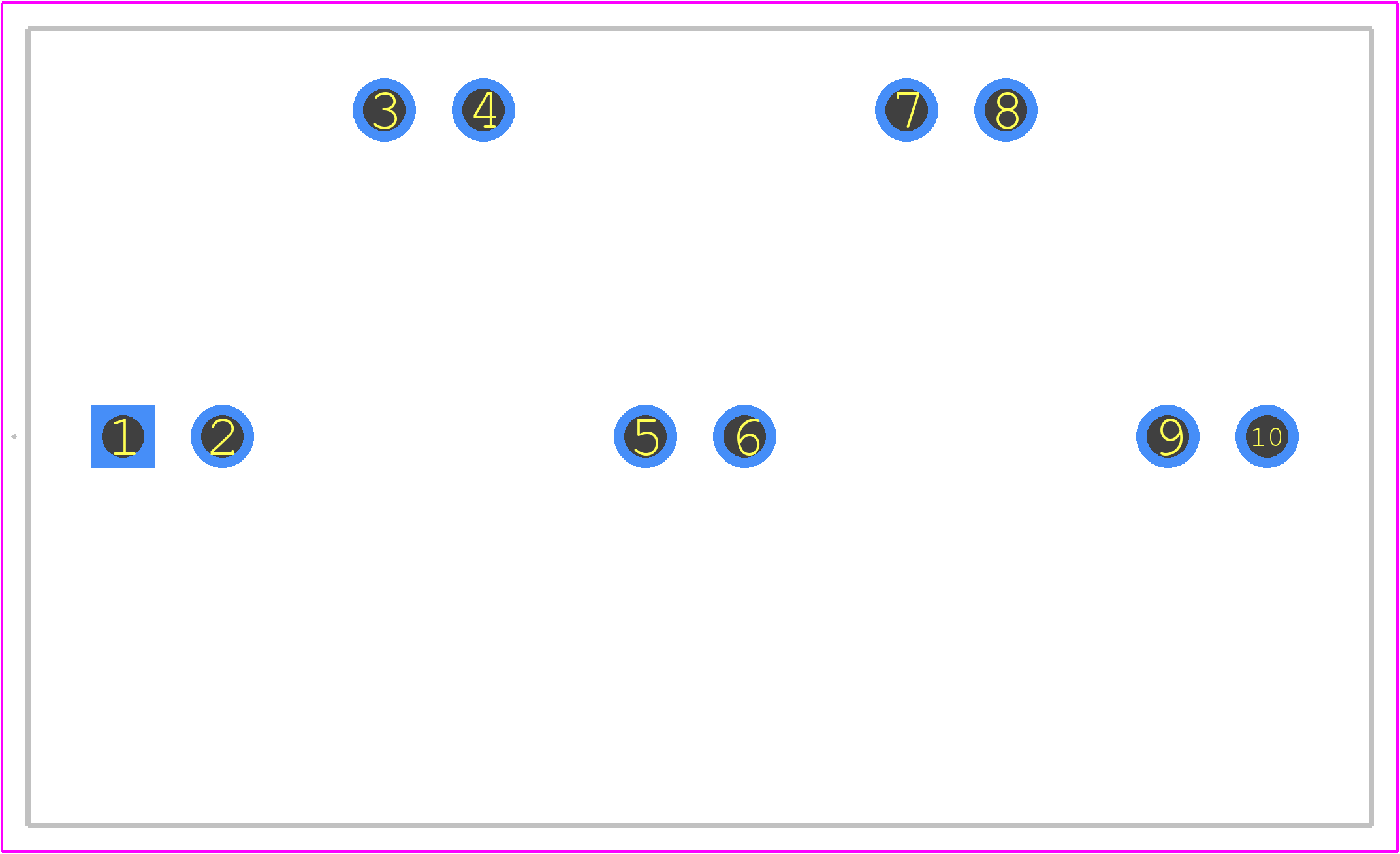

EB171A-05-H - Adam Tech PCB footprint - Other - Other - EB171A-05-H-2
click to zoom
3D Models
EB171A-05-H - Adam Tech - 3D model - Other - EB171A-05-H-2
click to zoom

EB171A-05-H Details

  • Manufacturer Part Number:

    EB171A-05-H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Adam Technologies Inc

  • YTEOL:

    7.3

  • Additional Feature:

    STANDARD: 94V-0, PA

  • Fastening Method:

    SPRING CLAMP

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    5

  • Rated Current:

    51 A

  • Rated Voltage:

    600 V

  • Safety Approval:

    UL

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

  • Wire Cross Section:

    21.2 mm2

  • Wire Gauge:

    4 AWG

EB171A-05-H Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-0.8 Nm (4.4-7.4 in-lbs).
  • Yes, the connector is rated for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures.
  • The maximum wire size that can be used with the EB171A-05-H connector is 16 AWG (1.5 mm²).
  • The EB171A-05-H connector is rated for up to 600V AC/DC, making it suitable for high-voltage applications.
  • Yes, the connector is rated for operation in temperatures ranging from -40°C to +125°C (-40°F to +257°F).

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EB171A-05-H Overview

Use the download button to access the EB171A-05-H schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EB171, or try a keyword search, such as Terminals and Terminal Blocks
