Technical Content
Part Image

EBA28DCSD - Sullins

Description: CONN EDGE DUAL FMALE 56POS 0.125

Download EBA28DCSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EBA28DCSD - Sullins - PCB symbol
click to zoom
PCB Footprints

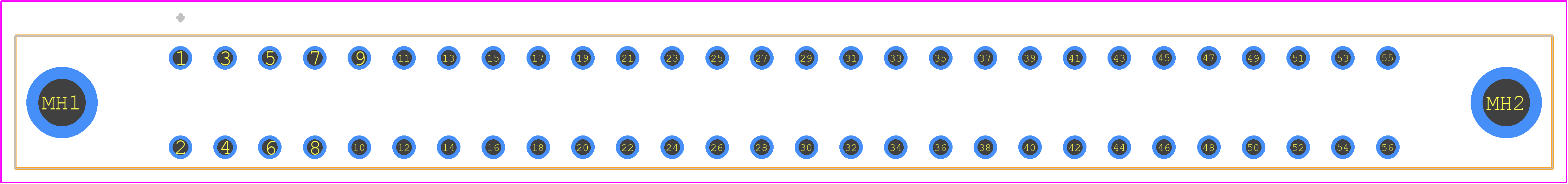

EBA28DCSD - Sullins PCB footprint - Other - Other - EBA28DCSD-2
click to zoom
3D Models
EBA28DCSD - Sullins - 3D model - Other - EBA28DCSD-2
click to zoom

EBA28DCSD Details

  • Manufacturer Part Number:

    EBA28DCSD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    7

  • Body Breadth:

    0.37 inch

  • Body Depth:

    0.61 inch

  • Body Length:

    4.305 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.125 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • PCB Contact Pattern:

    RECTANGULAR

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Terminal Length:

    0.16 inch

  • Terminal Pitch:

    3.175 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    56

EBA28DCSD Frequently Asked Questions (FAQs)

  • The recommended mating sequence is to mate the guide pins first, followed by the signal pins. This ensures proper alignment and prevents damage to the connector.
  • Yes, the EBA28DCSD connector is designed to withstand high-vibration environments. It has a ruggedized design and secure locking mechanism to ensure reliable connections in demanding applications.
  • The operating temperature range for the EBA28DCSD connector is -55°C to +125°C. However, it's essential to note that the temperature range may vary depending on the specific application and environmental conditions.
  • Yes, the EBA28DCSD connector is designed to be compatible with automated assembly processes. It has a pick-and-place friendly design and can be easily integrated into automated assembly lines.
  • The typical lead time for delivery of the EBA28DCSD connector varies depending on the quantity and availability. However, Sullins Connector Solutions typically quotes a lead time of 6-8 weeks for standard orders.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBA28DCSD Overview

Use the download button to access the EBA28DCSD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBA28, or try a keyword search, such as Headers and Edge Type Connectors
