EBC10DRAS - Sullins

Description: 20 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue

Download EBC10DRAS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

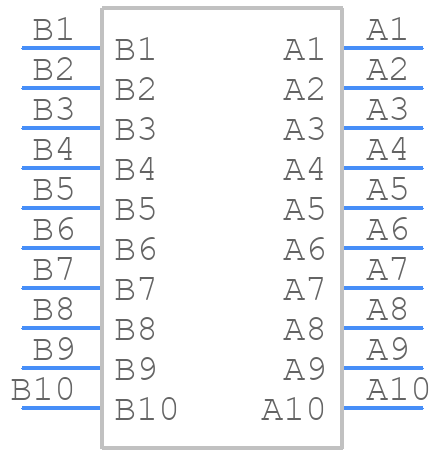

EBC10DRAS - Sullins - PCB symbol
click to zoom
PCB Footprints

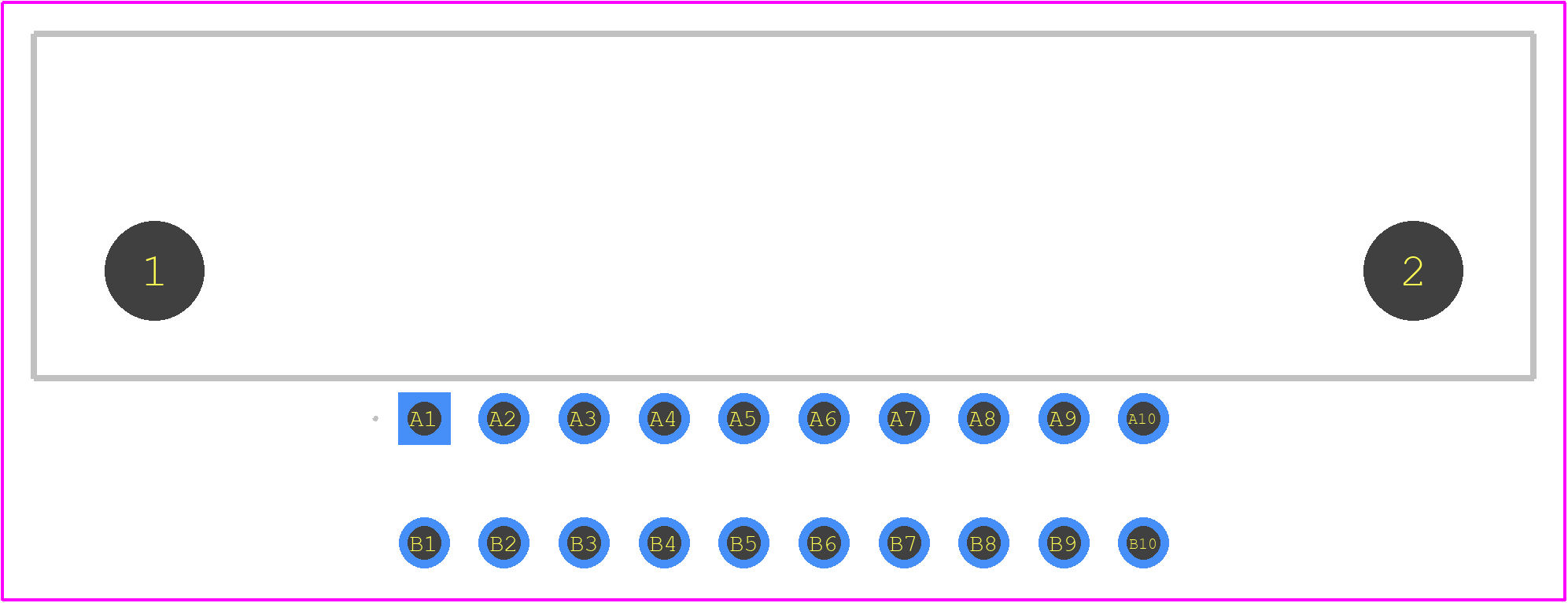

EBC10DRAS - Sullins PCB footprint - Other - Other - EBC10DRAS-3
click to zoom
3D Models
EBC10DRAS - Sullins - 3D model - Other - EBC10DRAS-3
click to zoom

EBC10DRAS Details

  • Manufacturer Part Number:

    EBC10DRAS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    7

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.637 inch

  • Body Length:

    1.875 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

EBC10DRAS Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC10DRAS connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBC10DRAS connector is designed to withstand high-vibration environments. However, it's crucial to ensure proper mounting and screw torque to prevent connector damage or disconnection. Consult Sullins Connector Solutions for specific vibration testing and recommendations.
  • The EBC10DRAS connector is rated for operation in temperatures ranging from -40°C to 105°C (-40°F to 221°F). However, it's essential to consider the specific application and environmental conditions to ensure reliable performance.
  • Yes, the EBC10DRAS connector is compatible with lead-free soldering processes. Sullins Connector Solutions uses lead-free materials and manufacturing processes to ensure compliance with RoHS and other environmental regulations.
  • The EBC10DRAS connector is rated for a minimum of 500 mating cycles. However, the actual number of mating cycles may vary depending on the application, environmental conditions, and connector maintenance.
