EBC10MMSD - Sullins

Description: 20 Position Male Connector Fits Female Edgecards Gold 0.100" (2.54mm) Blue

Download EBC10MMSD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

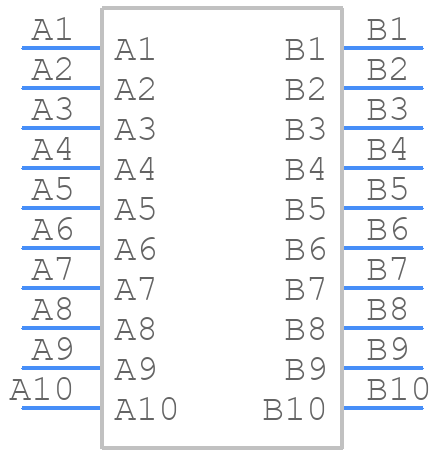

EBC10MMSD - Sullins - PCB symbol
click to zoom
PCB Footprints

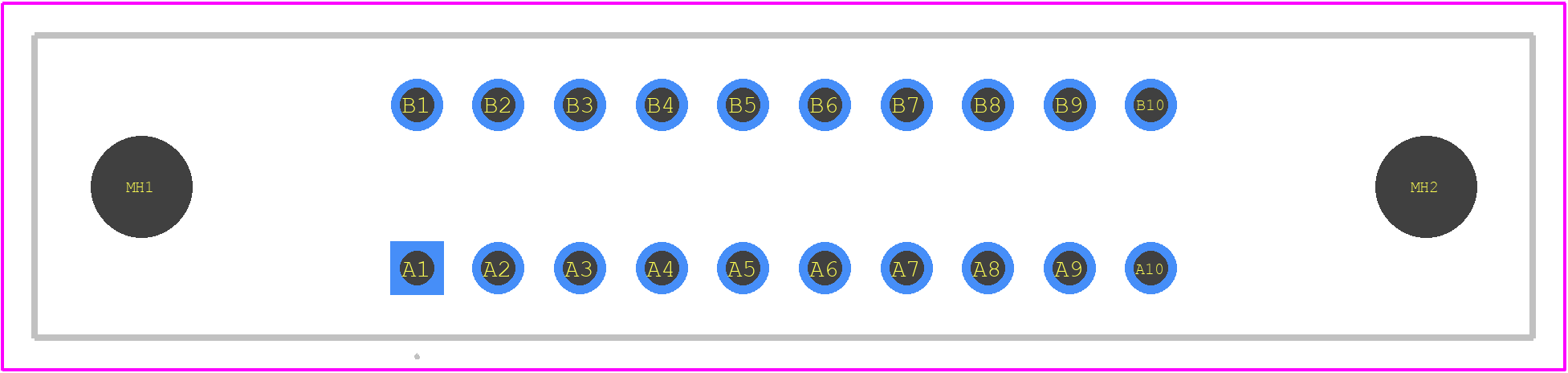

EBC10MMSD - Sullins PCB footprint - Other - Other - EBC10MMSD-1
click to zoom
3D Models
EBC10MMSD - Sullins - 3D model - Other - EBC10MMSD-1
click to zoom

EBC10MMSD Details

  • Manufacturer Part Number:

    EBC10MMSD

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    7

  • Board Mounting Option:

    HOLE .12- .126

  • Body Breadth:

    0.37 inch

  • Body Depth:

    0.54 inch

  • Body Length:

    1.836 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE .115-.125

  • Mounting Option 2:

    FLUSH MOUNTING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.08 mm

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.19 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

EBC10MMSD Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC10MMSD connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBC10MMSD connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G (10 Hz to 2000 Hz). However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • The EBC10MMSD connector has an operating temperature range of -40°C to +125°C (-40°F to +257°F). However, it's essential to note that the temperature range may vary depending on the specific application and the materials used in the connector. Consult with Sullins Connector Solutions or a qualified engineer for specific temperature requirements.
  • Yes, the EBC10MMSD connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The recommended mating cycle for the EBC10MMSD connector is 500 cycles. However, the actual mating cycle may vary depending on the specific application, usage, and environmental conditions. Consult with Sullins Connector Solutions or a qualified engineer for specific mating cycle requirements.
