EBC15DRXN - Sullins

Description: CONN EDGE DUAL FMALE 30POS 0.100

Download EBC15DRXN Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

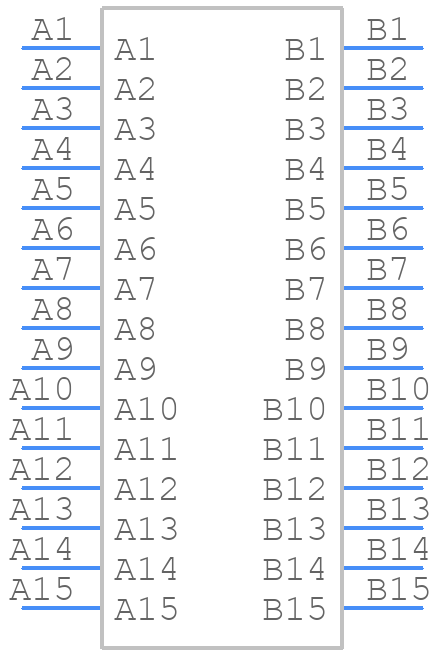

EBC15DRXN - Sullins - PCB symbol
click to zoom
PCB Footprints

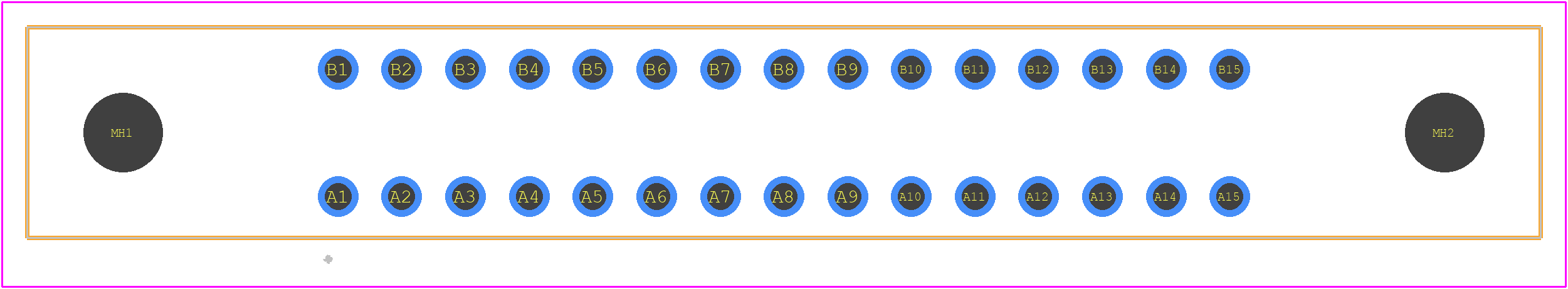

EBC15DRXN - Sullins PCB footprint - Other - Other - EBC15DRXN-2
click to zoom
3D Models
EBC15DRXN - Sullins - 3D model - Other - EBC15DRXN-2
click to zoom

EBC15DRXN Details

  • Manufacturer Part Number:

    EBC15DRXN

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    6.75

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    2.375 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.185 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

EBC15DRXN Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC15DRXN connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBC15DRXN connector is designed to withstand high-vibration environments. It has a ruggedized design and is built with high-quality materials to ensure reliable performance in demanding applications.
  • The EBC15DRXN connector is designed to operate in a wide range of temperatures (-40°C to 105°C) and humidity levels. However, it's essential to follow the recommended operating conditions and take necessary precautions to ensure reliable performance in harsh environments.
  • The EBC15DRXN connector has a mating cycle life of 500-1000 cycles, depending on the application and operating conditions. It's essential to follow the recommended mating and unmating procedures to ensure the connector meets its expected lifespan.
  • The EBC15DRXN connector is designed to be compatible with other connectors that meet the same industry standards (e.g., IEC 61076-2-012). However, it's essential to verify compatibility before using the connector with other products.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBC15DRXN Overview

Use the download button to access the EBC15DRXN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBC15, or try a keyword search, such as Headers and Edge Type Connectors
