EBC22DRAS - Sullins

Description: 44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Blue..

Download EBC22DRAS Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

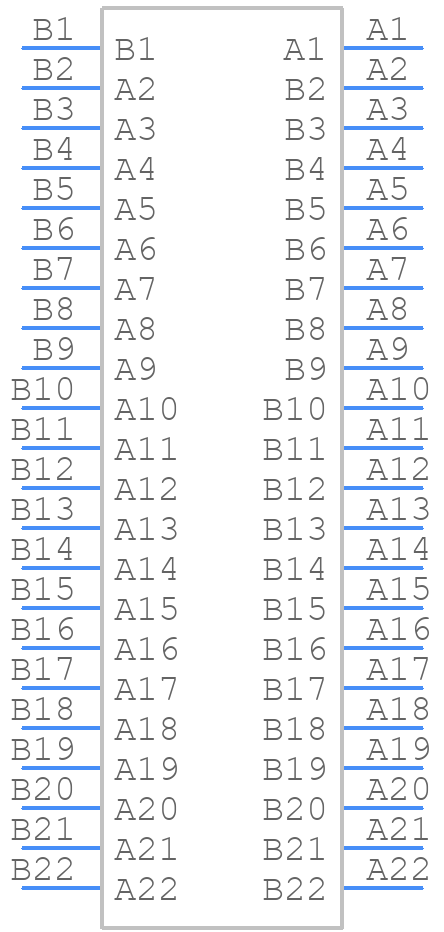

Symbol
EBC22DRAS - Sullins - PCB symbol
click to zoom

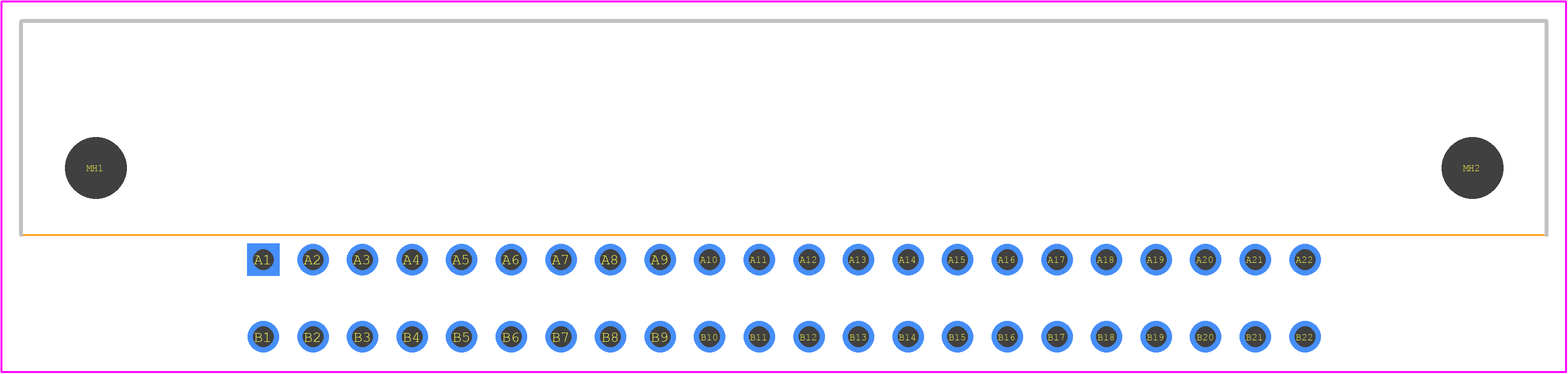

PCB Footprints
EBC22DRAS - Sullins PCB footprint - Other - Other - EBC22DRAS
click to zoom
3D Models
EBC22DRAS - Sullins - 3D model - Other - EBC22DRAS
click to zoom

EBC22DRAS Details

  • Manufacturer Part Number:

    EBC22DRAS

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    6.75

  • Body Breadth:

    0.33 inch

  • Body Depth:

    0.637 inch

  • Body Length:

    3.075 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Filter Feature:

    NO

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • JESD-609 Code:

    e3

  • Mating Contact Pitch:

    0.1 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    LOCKING

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    150 °C

  • Operating Temperature-Min:

    -65 °C

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    3 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.125 inch

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    44

EBC22DRAS Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBC22DRAS connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure proper mating and prevent damage to the connector.
  • Yes, the EBC22DRAS connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G (10 Hz to 2000 Hz). However, it's recommended to consult with Sullins Connector Solutions for specific vibration testing and validation.
  • The EBC22DRAS connector has an operating temperature range of -40°C to +125°C (-40°F to +257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • Yes, the EBC22DRAS connector is compatible with lead-free soldering processes. It's designed to meet the requirements of RoHS (Restriction of Hazardous Substances) and is suitable for use in lead-free soldering applications.
  • The EBC22DRAS connector has a mating cycle life of 500 cycles minimum. This means that the connector can withstand at least 500 mating and unmating cycles without compromising its performance or reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBC22DRAS Overview

Use the download button to access the EBC22DRAS schematic symbol, PCB footprint, and 3D model.
