Technical Content
Part Image

EBDW025A0B41Z - OmniOn Power

Description: Bus converter, 300W Eighth-brick, 36-75 Vin, 5-13.2 Vout, Open frame, Digital comms

Download EBDW025A0B41Z Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

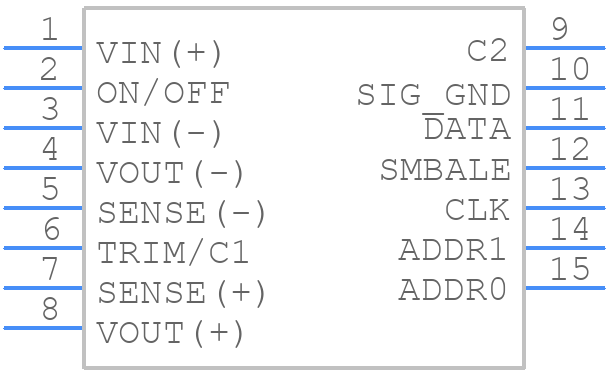

Symbol
EBDW025A0B41Z - OmniOn Power - PCB symbol
click to zoom

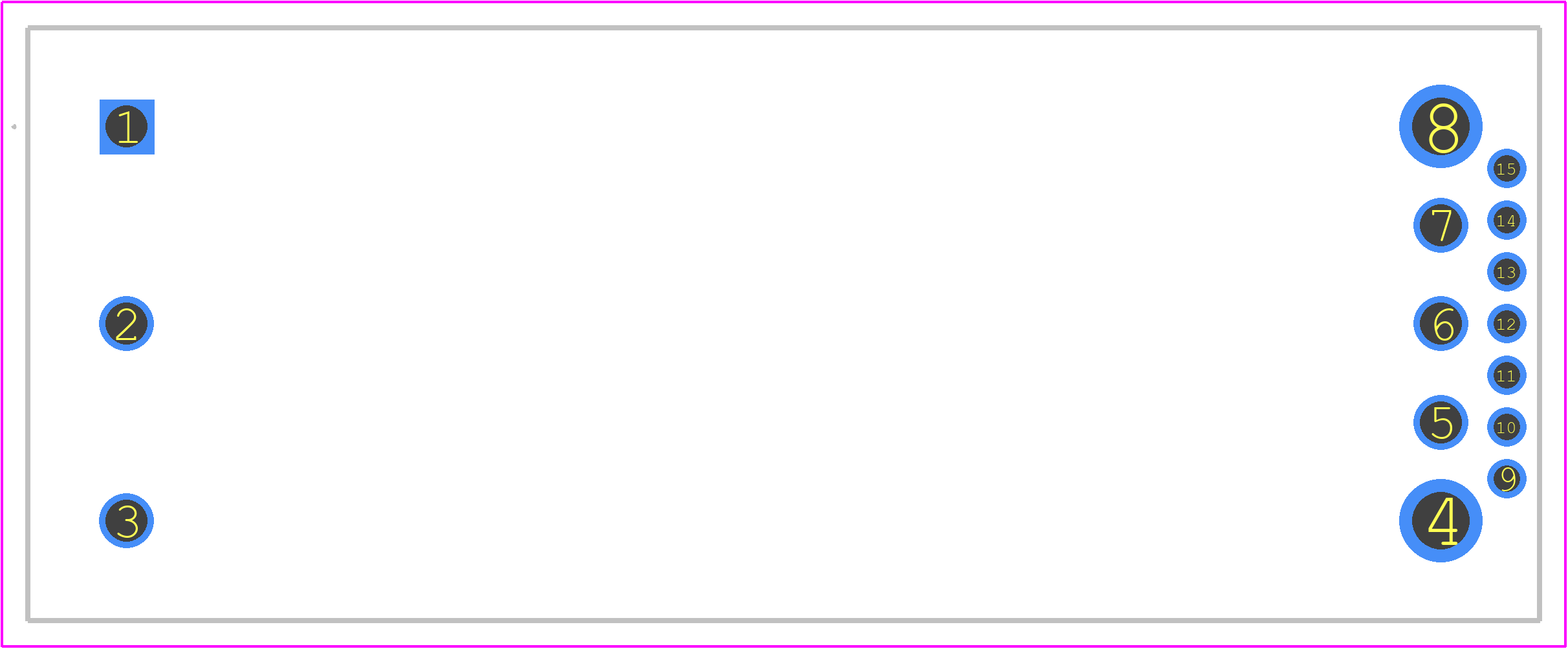

PCB Footprints
EBDW025A0B41Z - OmniOn Power PCB footprint - Other - Other - EBDW025A0B41Z-1
click to zoom
3D Models
EBDW025A0B41Z - OmniOn Power - 3D model - Other - EBDW025A0B41Z-1
click to zoom

EBDW025A0B41Z Details

  • Manufacturer Part Number:

    EBDW025A0B41Z

  • Manufacturer:

    OmniOn Power Inc

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBDW025A0B41Z Overview

Use the download button to access the EBDW025A0B41Z schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBDW0, or try a keyword search, such as Power Supply Modules
