EBM36DRXH - Sullins

Description: CONN EDGE DUAL FMALE 72POS 0.156

Download EBM36DRXH Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EBM36DRXH - Sullins - PCB symbol
click to zoom

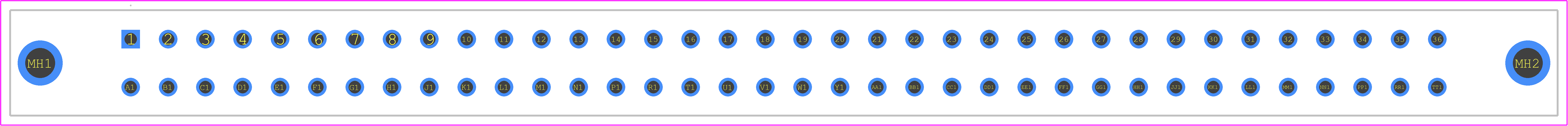

PCB Footprints
EBM36DRXH - Sullins PCB footprint - Other - Other - EBM36DRXH-1
click to zoom
3D Models
EBM36DRXH - Sullins - 3D model - Other - EBM36DRXH-1
click to zoom

EBM36DRXH Details

  • Manufacturer Part Number:

    EBM36DRXH

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    Sullins Connector Solutions

  • YTEOL:

    7

  • Board Mounting Option:

    HOLE 0.125

  • Body Breadth:

    0.438 inch

  • Body Depth:

    0.431 inch

  • Body Length:

    6.462 inch

  • Connector Type:

    CARD EDGE CONNECTOR

  • Contact Gender:

    FEMALE

  • Contact Pattern:

    RECTANGULAR

  • Contact Resistance:

    30 mΩ

  • Contact Style:

    BELLOWED TYPE

  • Durability:

    500 Cycles

  • Filter Feature:

    NO

  • Insertion Force-Max:

    4.448 N

  • Insulation Resistance:

    5000000000 Ω

  • Insulator Color:

    BLUE

  • Insulator Material:

    POLYBUTYLENE TEREPHTHALATE

  • Mating Contact Pitch:

    0.156 inch

  • Mating Contact Row Spacing:

    0.075 inch

  • Mixed Contacts:

    NO

  • Mounting Option 1:

    HOLE 0.125

  • Mounting Option 2:

    LOCKING

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    2

  • Number of Rows Loaded:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -65 °C

  • Option:

    GENERAL PURPOSE

  • PCB Contact Pattern:

    RECTANGULAR

  • PCB Contact Row Spacing:

    5.08 mm

  • Plating Thickness:

    10u inch

  • Rated Current (Signal):

    5 A

  • Reference Standard:

    UL

  • Terminal Length:

    0.137 inch

  • Terminal Pitch:

    3.96 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    72

  • UL Flammability Code:

    94V-0

  • Withdrawl Force-Min:

    0.278 N

EBM36DRXH Frequently Asked Questions (FAQs)

  • The recommended torque for the screws on the EBM36DRXH connector is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow the recommended torque to ensure proper mating and prevent damage to the connector.
  • Yes, the EBM36DRXH connector is designed to withstand high-vibration environments. It has a ruggedized design and is suitable for use in applications with vibrations up to 10G (10 times the force of gravity). However, it's recommended to consult with Sullins Connector Solutions or a qualified engineer to ensure the connector meets the specific vibration requirements of your application.
  • Yes, the EBM36DRXH connector is compatible with lead-free soldering processes. The connector's terminals are made of a lead-free material that meets the requirements of the RoHS (Restriction of Hazardous Substances) directive.
  • The operating temperature range of the EBM36DRXH connector is -40°C to 125°C (-40°F to 257°F). However, it's recommended to consult the datasheet or contact Sullins Connector Solutions for specific temperature ratings and derating information.
  • The EBM36DRXH connector has a sealed design that provides some level of protection against moisture. However, it's not designed for immersion in water or exposure to high-pressure washdowns. If you need a connector for use in humid or wet environments, you should consider a connector with a higher IP (Ingress Protection) rating or consult with Sullins Connector Solutions for a custom solution.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EBM36DRXH Overview

Use the download button to access the EBM36DRXH schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EBM36, or try a keyword search, such as Headers and Edge Type Connectors
