EBTF-6-08-2.0-S-RA-1 footprint, schematic symbol and 3D model by SAMTEC

Symbol

click to zoom

PCB Footprints

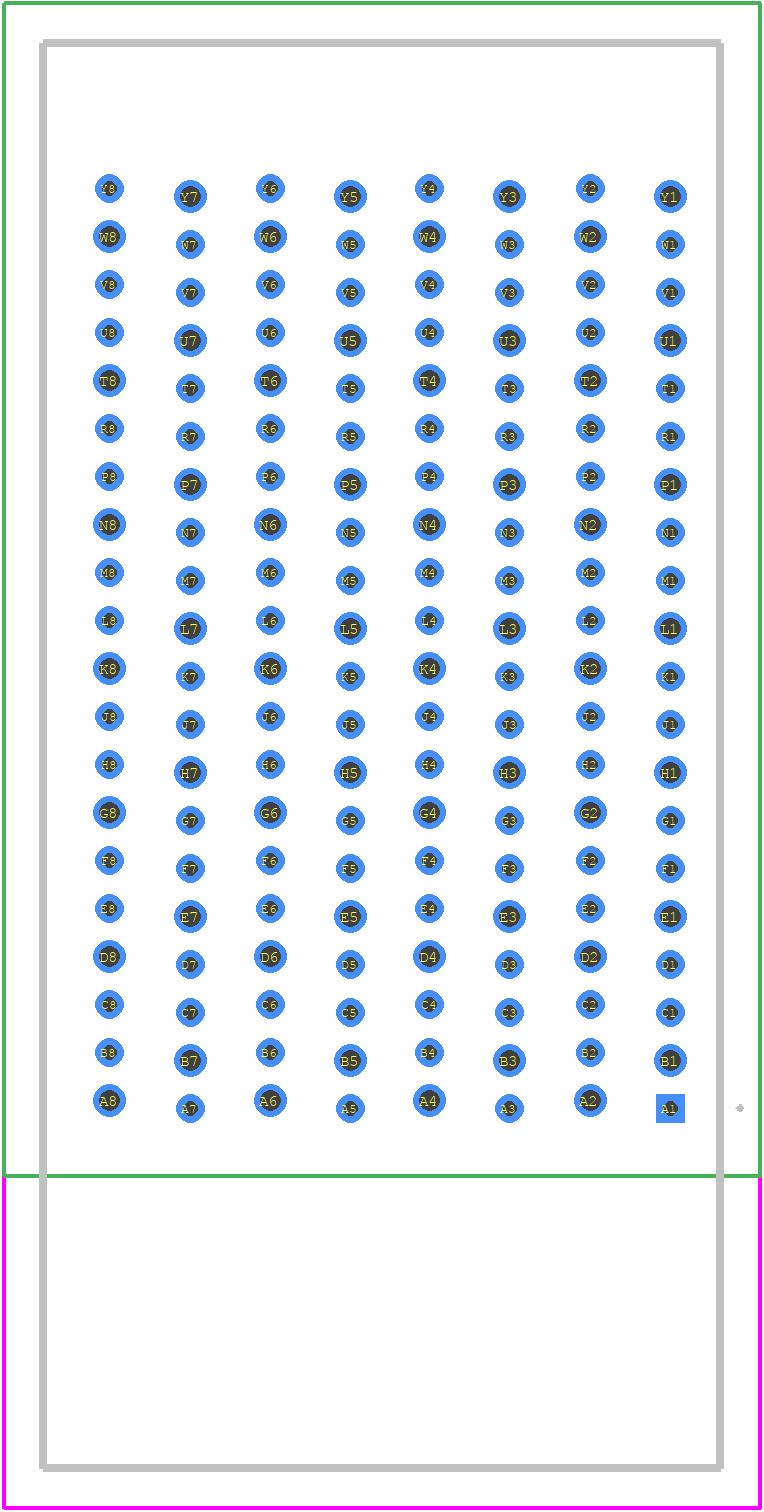

EBTF-6-08-2.0-S-RA-1 - SAMTEC PCB footprint - Other - Other - EBTF-6-08-2.0-S-RA-1-3

click to zoom

3D Models

EBTF-6-08-2.0-S-RA-1 - SAMTEC - 3D model - Other - EBTF-6-08-2.0-S-RA-1-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EBTF-6-08-2.0-S-RA-1
Part Number EBTF-6-08-2.0-S-RA-1
Manufacturer SAMTEC
Pin Count 160
Part Category Connector
Package Category Other
Footprint Name Other - EBTF-6-08-2.0-S-RA-1-3
Released Date Oct 21, 2025
Last Modified Date Oct 21, 2025 2:58 PM UTC
Pinout / Pin List Click Here (Member Only)

EBTF-6-08-2.0-S-RA-1 Details

Manufacturer Part Number:
EBTF-6-08-2.0-S-RA-1
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Malaysia
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Factory Lead Time:
1 Week
Manufacturer:
Samtec Inc
YTEOL:
11
Body Breadth:
1.169 inch
Body Depth:
1.402 inch
Body Length:
0.9 inch
Body/Shell Style:
SOCKET
Connector Type:
BOARD CONNECTOR
Contact Gender:
FEMALE
Contact Pattern:
RECTANGULAR
Contact Resistance:
10 mΩ
Contact Style:
CENTRONIC
Dielectric Withstanding Voltage:
500VAC V
Durability:
200 Cycles
Filter Feature:
NO
Insulation Resistance:
1000000000 Ω
Insulator Color:
BLACK
Insulator Material:
LIQUID CRYSTAL POLYMER
Mating Contact Pitch:
0.079 inch
Mating Contact Row Spacing:
0.039 inch
Mating Information:
MULTIPLE MATING PARTS AVAILABLE
Mixed Contacts:
NO
Mounting Option 1:
LOCKING
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number Of PCB Rows:
20
Number of Rows Loaded:
20
Operating Temperature-Max:
105 °C
Operating Temperature-Min:
-55 °C
Option:
GENERAL PURPOSE
PCB Contact Pattern:
RECTANGULAR
PCB Contact Row Spacing:
1.2 mm
Plating Thickness:
30u inch
Polarization Key:
POLARIZED HOUSING
Rated Current (Signal):
4 A
Reference Standard:
UL
Terminal Length:
0.055 inch
Terminal Pitch:
2 mm
Termination Type:
PRESS FIT
Total Number of Contacts:
160
UL Flammability Code:
94V-0

EBTF-6-08-2.0-S-RA-1 Frequently Asked Questions (FAQs)

The recommended torque is 0.5-1.5 in-lbs (0.056-0.169 Nm) for the screws on the EBTF-6-08-2.0-S-RA-1 connector, as specified in the Samtec application notes.
Yes, the EBTF-6-08-2.0-S-RA-1 connector is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard, which ensures reliable performance in applications with intense vibrations.
Yes, the EBTF-6-08-2.0-S-RA-1 connector is designed to operate in harsh environments. It has a temperature range of -55°C to 125°C and meets the IPC-J-STD-001 standard for solderability and the IEC 60529 standard for ingress protection (IP67 rating).
While the EBTF-6-08-2.0-S-RA-1 connector is optimized for 1.57 mm PCB thickness, it can be used with PCBs of other thicknesses. However, the connector's performance and reliability may be affected. It's recommended to consult with Samtec's technical support team for guidance on using the connector with non-standard PCB thicknesses.
The EBTF-6-08-2.0-S-RA-1 connector has a mating cycle life of 500 cycles, as specified in the Samtec datasheet. This means it can withstand 500 connect/disconnect cycles without compromising its performance or reliability.
