EC12PLRGBSDVBF - TOP UP

Description: Encoder with LED shaft (with 0.5mm Switch travel) Vertical type

Download EC12PLRGBSDVBF Model

Schematic
symbols

PCB
footprints

3D
models

Alert me if there are changes to this EC12PLRGBSDVBF model

Email notifications will be applied after download.

Send part feedback

Symbol

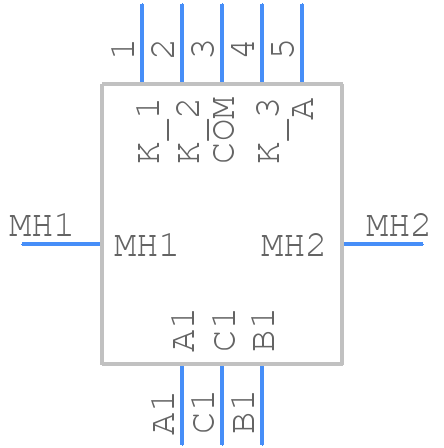

EC12PLRGBSDVBF - TOP UP - PCB symbol

PCB Footprints

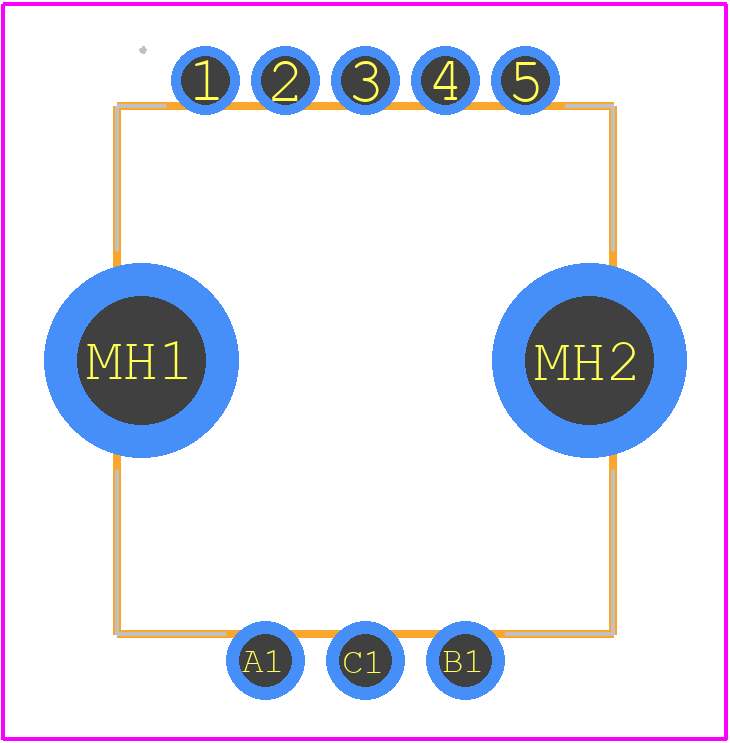

EC12PLRGBSDVBF - TOP UP PCB footprint - Other - Other - EC12PLRGBSDVBF-1

3D Models

EC12PLRGBSDVBF - TOP UP - 3D model - Other - EC12PLRGBSDVBF-1

Datasheet Download Datasheet
Stock & Prices Price & Stock for EC12PLRGBSDVBF
Part Number EC12PLRGBSDVBF
Manufacturer TOP UP
Pin Count 10
Part Category Undefined or Miscellaneous
Package Category Other
Footprint Name Other - EC12PLRGBSDVBF-1
Released Date Apr 23, 2020
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

EC12PLRGBSDVBF Details

Manufacturer Part Number:
EC12PLRGBSDVBF
Manufacturer:
Top-Up Industry Corporation
