EC21EFA-512-STD - Quectel

Description: LTE Category 1 Module 3.8V LCC

Download EC21EFA-512-STD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
EC21EFA-512-STD - Quectel - PCB symbol
click to zoom
PCB Footprints

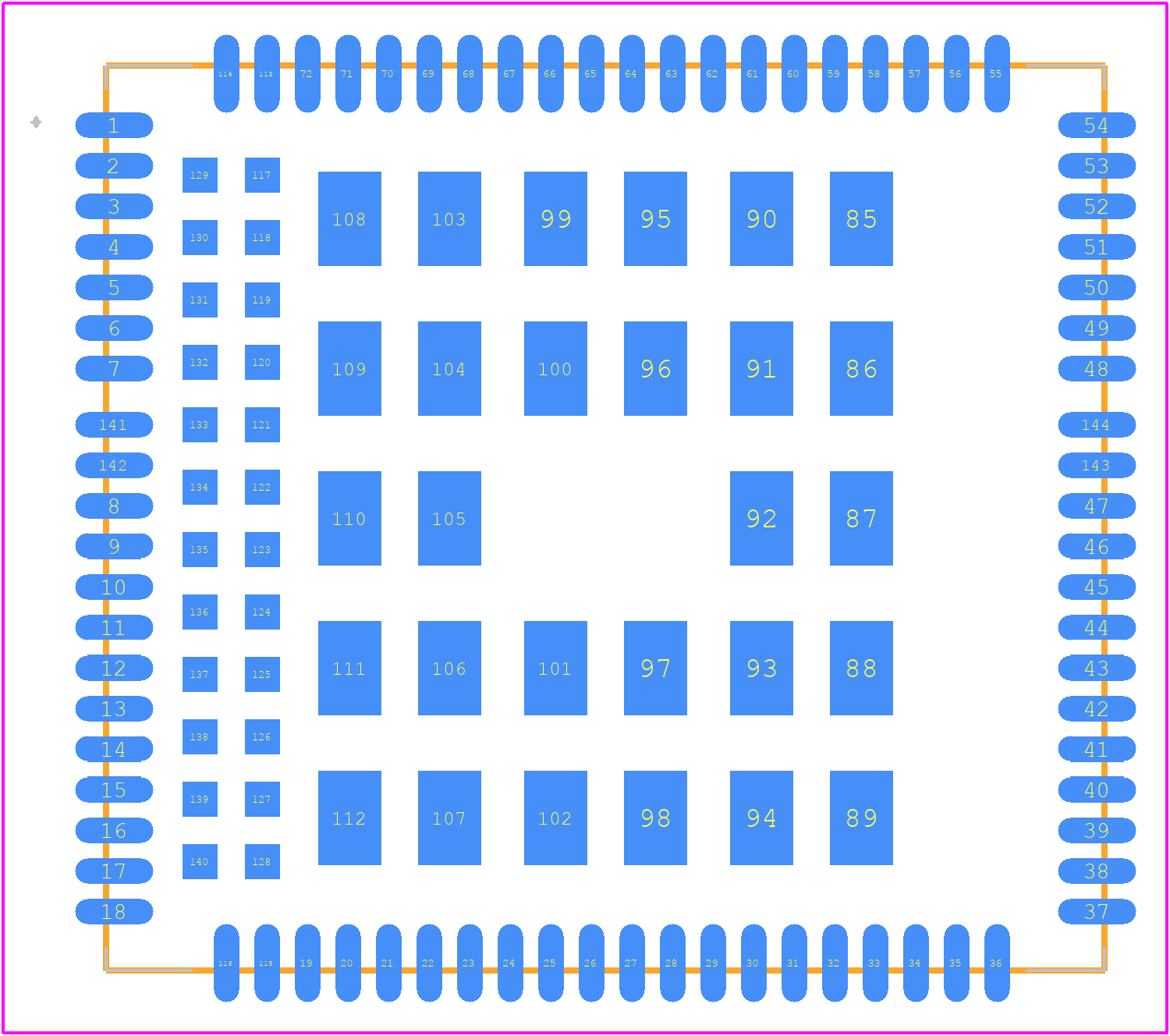

EC21EFA-512-STD - Quectel PCB footprint - Other - Other - EC21EFA-512-STD-1
click to zoom
3D Models
EC21EFA-512-STD - Quectel - 3D model - Other - EC21EFA-512-STD-1
click to zoom

EC21EFA-512-STD Details

  • Manufacturer Part Number:

    EC21EFA-512-STD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Contact Manufacturer

  • Package Description:

    LCC-144

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    Quectel Wireless Solutions Co Ltd

  • JESD-30 Code:

    R-XXMA-N144

  • Length:

    32 mm

  • Number of Terminals:

    144

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    XMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Seated Height-Max:

    2.4 mm

  • Supply Voltage-Max:

    4.3 V

  • Supply Voltage-Min:

    3.3 V

  • Supply Voltage-Nom:

    3.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Terminal Form:

    NO LEAD

  • Terminal Position:

    UNSPECIFIED

  • Width:

    29 mm

  • uPs/uCs/Peripheral ICs Type:

    RFSOC

EC21EFA-512-STD Frequently Asked Questions (FAQs)

  • The maximum power consumption of the EC21EFA-512-STD module is around 2.5W, but it can vary depending on the operating mode and usage scenario.
  • The EC21EFA-512-STD module can be configured for LTE-M or NB-IoT using AT commands. You can use the Quectel AT Command Guide to configure the module for the desired mode.
  • The operating temperature range of the EC21EFA-512-STD module is -40°C to +85°C, making it suitable for use in a wide range of industrial and commercial applications.
  • Yes, the EC21EFA-512-STD module supports multi-band configuration, allowing it to operate on different frequency bands depending on the region and network availability.
  • The maximum data transfer rate of the EC21EFA-512-STD module is up to 10Mbps for LTE-M and up to 27.2Kbps for NB-IoT, depending on the network and usage scenario.
