EC2EE26 - Cincon

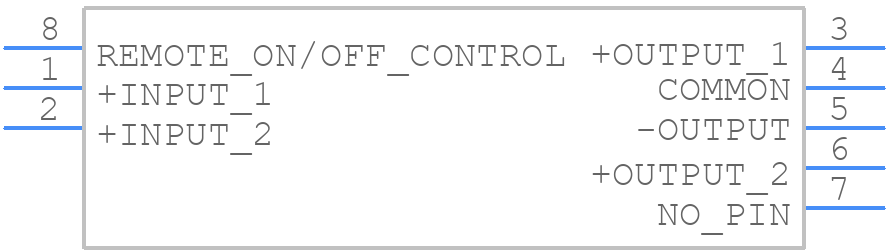

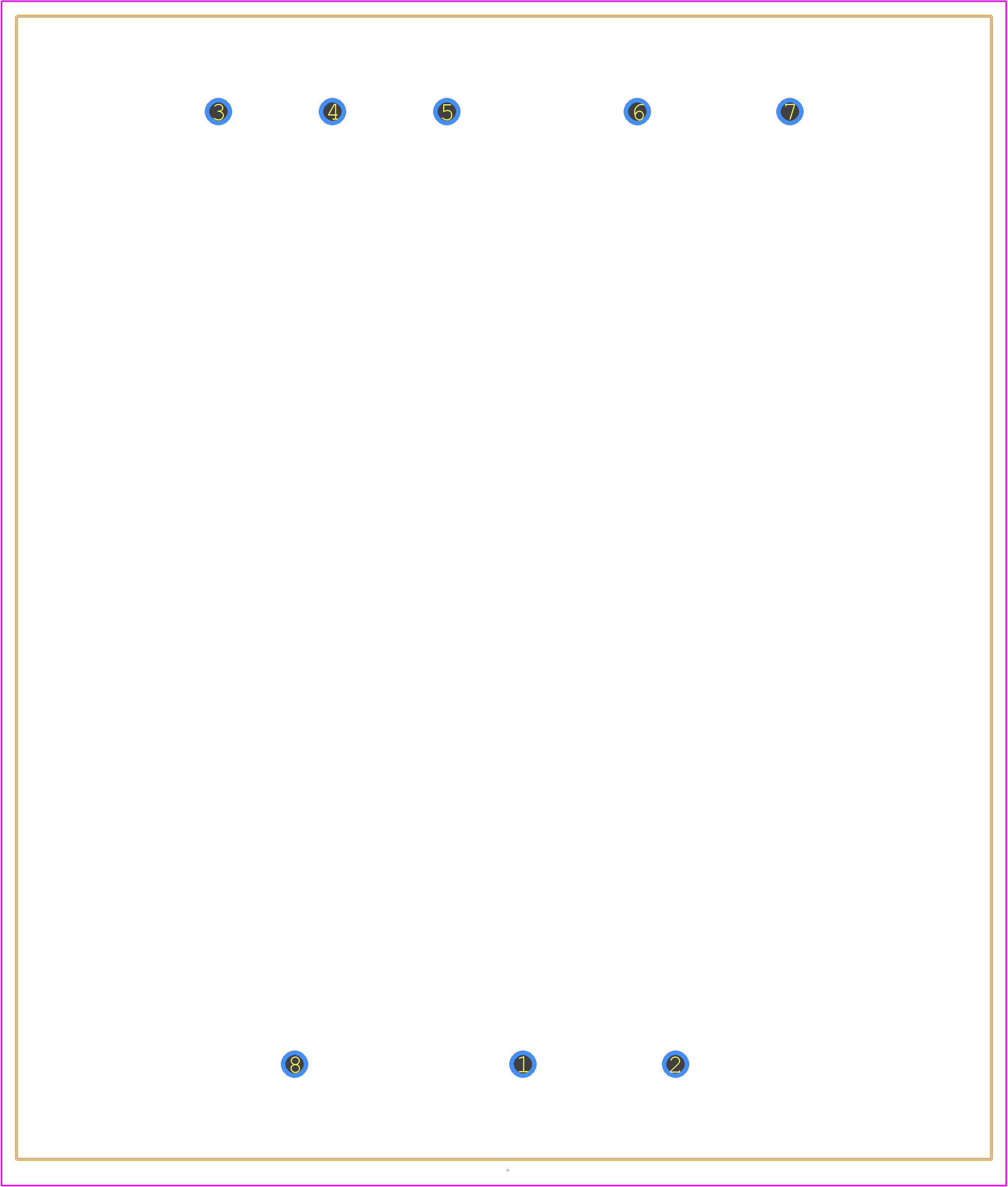

EC2EE26 Details

• Manufacturer Part Number:

  EC2EE26

• Part Life Cycle Code:

  Obsolete

• Package Description:

  PACKAGE-7

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  0

• Additional Feature:

  ALSO 12V AND -12V VOUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Efficiency (Main Output):

  82%

• Input Voltage-Max:

  72 V

• Input Voltage-Min:

  36 V

• Input Voltage-Nom:

  48 V

• JESD-30 Code:

  R-XDMA-P7

• Length:

  76.2 mm

• Line Regulation-Max:

  1%

• Load Regulation-Max:

  5%

• Number of Functions:

  1

• Number of Outputs:

  3

• Number of Terminals:

  7

• Operating Temperature-Max:

  71 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  1.5 A

• Output Voltage-Max:

  5.1 V

• Output Voltage-Min:

  4.9 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  UNSPECIFIED

• Package Code:

  DMA

• Package Equivalence Code:

  MODULE,7/8LEAD,2.5

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.02651 Vrms

• Seated Height-Max:

  22.1 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Total Power Output-Max:

  15 W

• Trim/Adjustable Output:

  NO

• Width:

  65 mm
