EC2SA24NH - Cincon

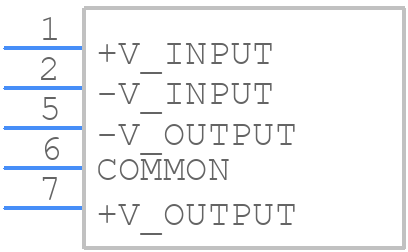

EC2SA24NH Details

• Manufacturer Part Number:

  EC2SA24NH

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  SIP-7/5

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  5

• Additional Feature:

  IT ALSO HAS -12V OUTPUT

• Analog IC - Other Type:

  DC-DC UNREGULATED POWER SUPPLY MODULE

• Approvals:

  CE

• Efficiency (Main Output):

  87%

• Input Voltage-Max:

  26.4 V

• Input Voltage-Min:

  21.6 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PSIP-T5

• Length:

  19.6 mm

• Line Regulation-Max:

  1.2%

• Load Regulation-Max:

  10%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  5

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.083 A

• Output Voltage-Max:

  12.36 V

• Output Voltage-Min:

  11.64 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC

• Package Code:

  SIP

• Package Equivalence Code:

  SIP5/7,.1

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0707 Vrms

• Seated Height-Max:

  10.45 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  SINGLE

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  2 W

• Trim/Adjustable Output:

  NO

• Width:

  7.2 mm
