EC3AE11M - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 3 Watt, 12VDC Input, 5VDC Output, DIP

Download EC3AE11M Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

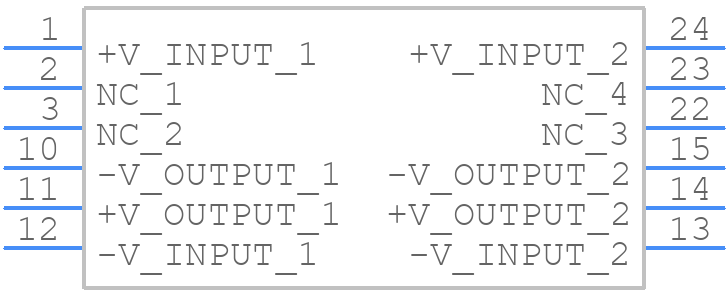

EC3AE11M - Cincon - PCB symbol
click to zoom
PCB Footprints

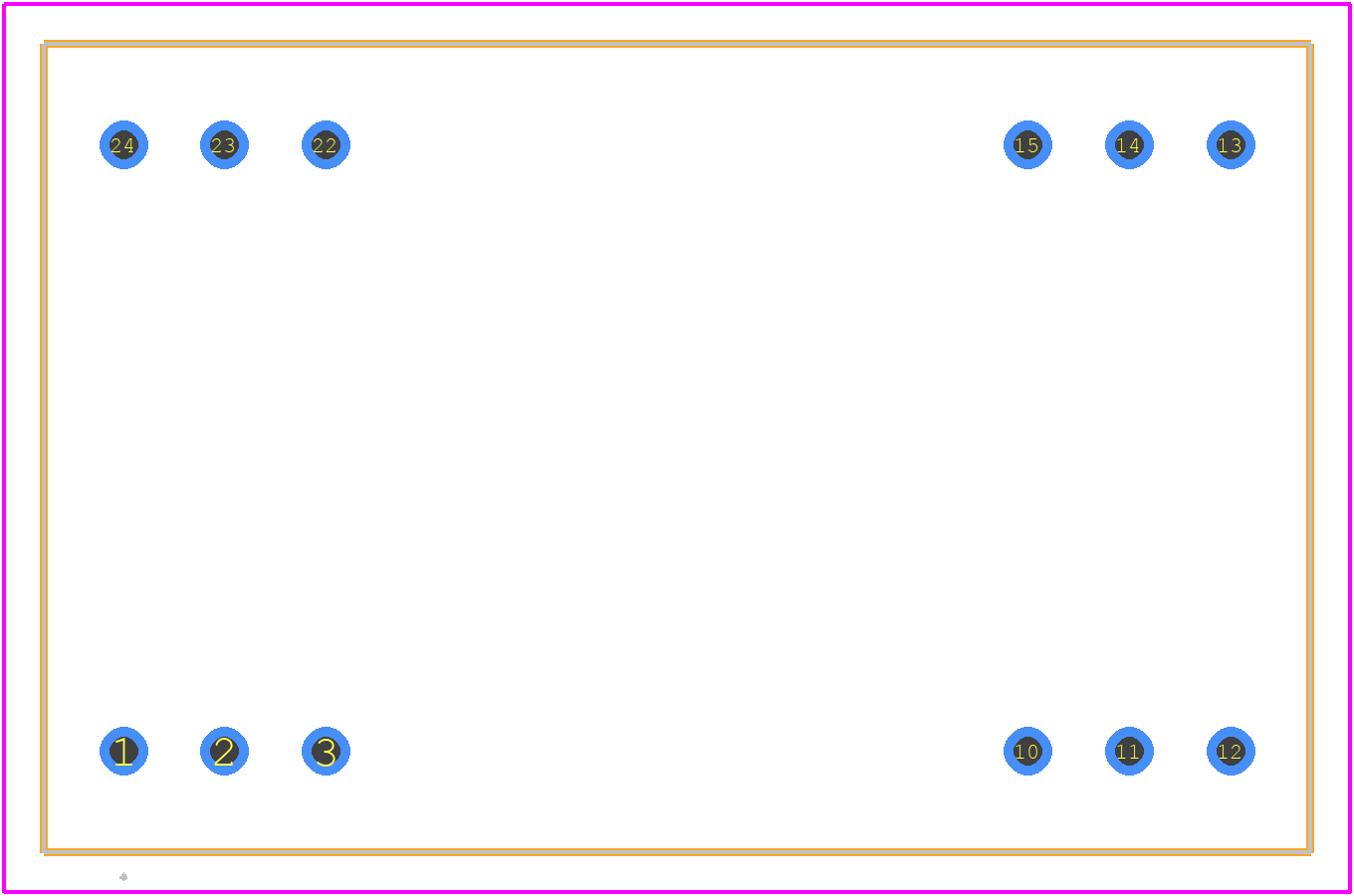

EC3AE11M - Cincon PCB footprint - Other - Other - EC3AE11M-3
click to zoom
3D Models
EC3AE11M - Cincon - 3D model - Other - EC3AE11M-3
click to zoom

EC3AE11M Details

  • Manufacturer Part Number:

    EC3AE11M

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/12

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Efficiency (Main Output):

    61%

  • Input Voltage-Max:

    13.2 V

  • Input Voltage-Min:

    10.8 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-P12

  • Length:

    31.8 mm

  • Line Regulation-Max:

    0.3%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    12

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    0.6 A

  • Output Voltage-Max:

    5.15 V

  • Output Voltage-Min:

    4.85 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP12/24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    SHORT CIRCUIT

  • Qualification Status:

    Not Qualified

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Width:

    15.24 mm

EC3AE11M Frequently Asked Questions (FAQs)

  • Cincon recommends a PCB layout with a solid ground plane and thermal vias under the device to improve heat dissipation. A minimum of 2oz copper thickness is recommended for optimal thermal performance.
  • To ensure reliable startup and shutdown, Cincon recommends a soft-start circuit and a voltage supervisor to monitor the output voltage. Additionally, a minimum input capacitance of 10uF is recommended to reduce startup overshoot.
  • The maximum allowable ripple current on the input capacitors is 1.5A RMS. Exceeding this limit may reduce the lifespan of the capacitors.
  • While it's possible to use a different inductor value, Cincon recommends using the specified inductor value to ensure optimal performance and efficiency. Using a different value may affect the converter's stability and output voltage regulation.
  • To troubleshoot output voltage oscillations or instability, check the PCB layout for noise coupling, ensure proper input and output decoupling, and verify that the recommended component values are used. Additionally, check the output voltage feedback loop for proper compensation and stability.
