EC3AE25M footprint, schematic symbol and 3D model by Cincon

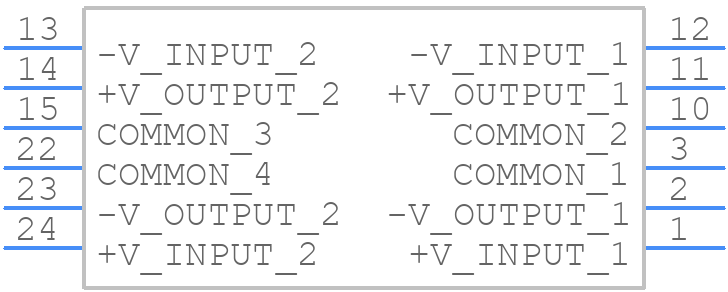

Symbol

click to zoom

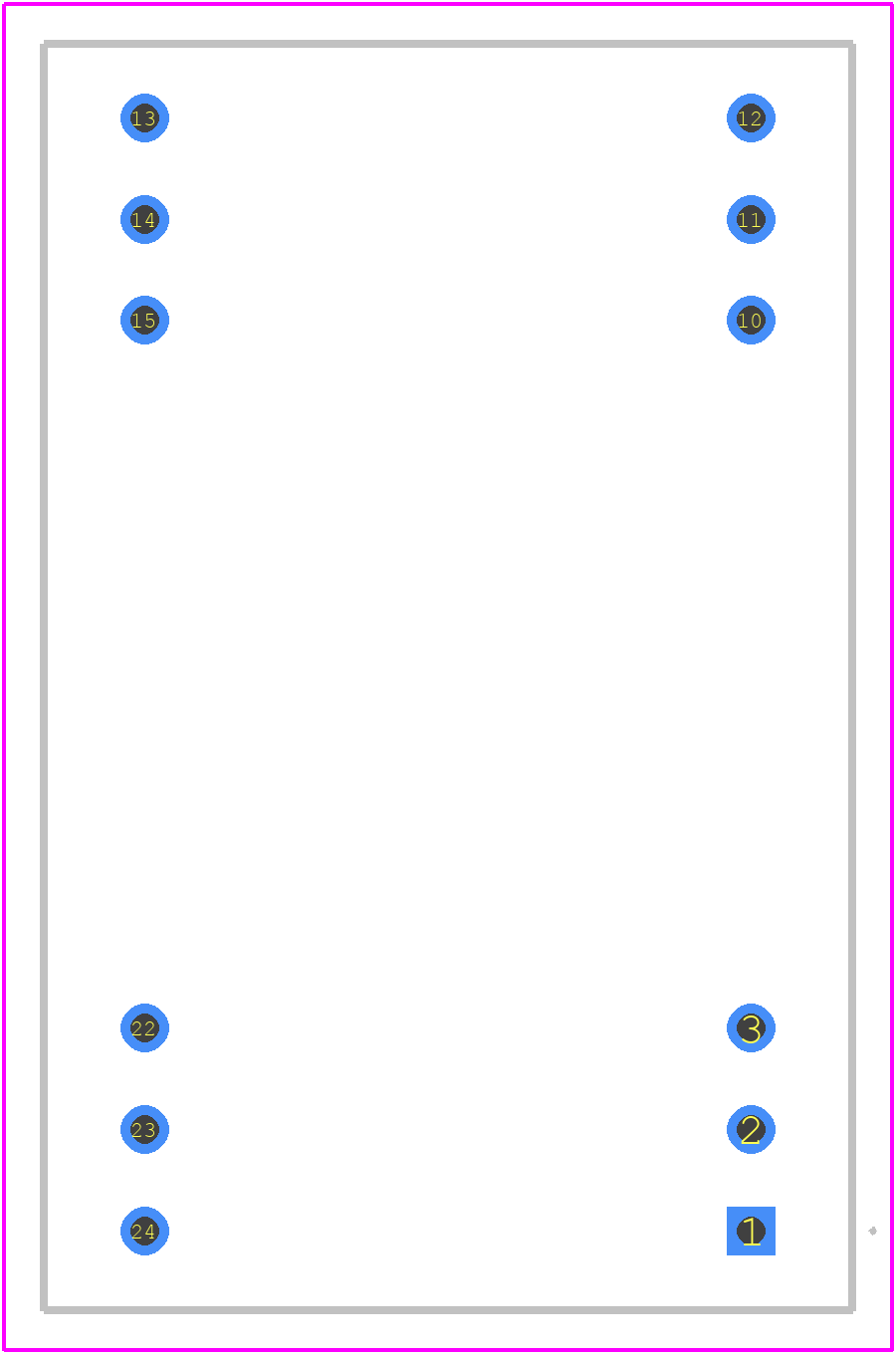

PCB Footprints

EC3AE25M - Cincon PCB footprint - Other - Other - EC3AE25M-6

click to zoom

3D Models

EC3AE25M - Cincon - 3D model - Other - EC3AE25M-6

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for EC3AE25M
Part Number EC3AE25M
Manufacturer Cincon
Pin Count 12
Part Category Power Supply
Package Category Other
Footprint Name Other - EC3AE25M-6
Released Date Sep 23, 2023
Last Modified Date Sep 24, 2023 6:25 AM UTC
Pinout / Pin List Click Here (Member Only)

EC3AE25M Details

Manufacturer Part Number:
EC3AE25M
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
DIP-24/12
ECCN Code:
EAR99
Manufacturer:
Cincon Electronics Corporation
YTEOL:
5
Additional Feature:
-15V ADDITIONAL OUTPUT AVAILABLE
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
Efficiency (Main Output):
61%
Input Voltage-Max:
26.4 V
Input Voltage-Min:
21.6 V
Input Voltage-Nom:
24 V
JESD-30 Code:
R-PDIP-P12
Length:
31.8 mm
Line Regulation-Max:
0.3%
Load Regulation-Max:
1%
Number of Functions:
1
Number of Outputs:
2
Number of Terminals:
12
Operating Temperature-Max:
71 °C
Operating Temperature-Min:
-25 °C
Output Current-Max:
0.1 A
Output Voltage-Max:
15.45 V
Output Voltage-Min:
14.55 V
Output Voltage-Nom:
15 V
Package Body Material:
PLASTIC/EPOXY
Package Code:
DIP
Package Equivalence Code:
DIP12/24,.6
Package Shape:
RECTANGULAR
Package Style:
IN-LINE
Protections:
SHORT CIRCUIT
Qualification Status:
Not Qualified
Ripple Voltage (Main Out):
0.017675 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
3 W
Trim/Adjustable Output:
NO
Width:
15.24 mm

EC3AE25M Frequently Asked Questions (FAQs)

Cincon recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output. The input and output capacitors should be placed as close as possible to the IC pins, and the feedback resistors should be placed close to the output pins.
To ensure stability, Cincon recommends using a minimum output capacitance of 10uF, and a maximum ESR of 1 ohm. Additionally, the input voltage should be well-regulated and the output voltage should be decoupled with a 10nF capacitor.
The EC3AE25M is rated for operation from -40°C to +85°C, but derating is required for temperatures above 70°C. Consult the datasheet for specific derating guidelines.
Yes, the EC3AE25M is AEC-Q100 qualified and suitable for high-reliability and automotive applications. However, additional testing and validation may be required to meet specific industry standards.
The power dissipation of the EC3AE25M can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current.
