EC3AE34M - Cincon

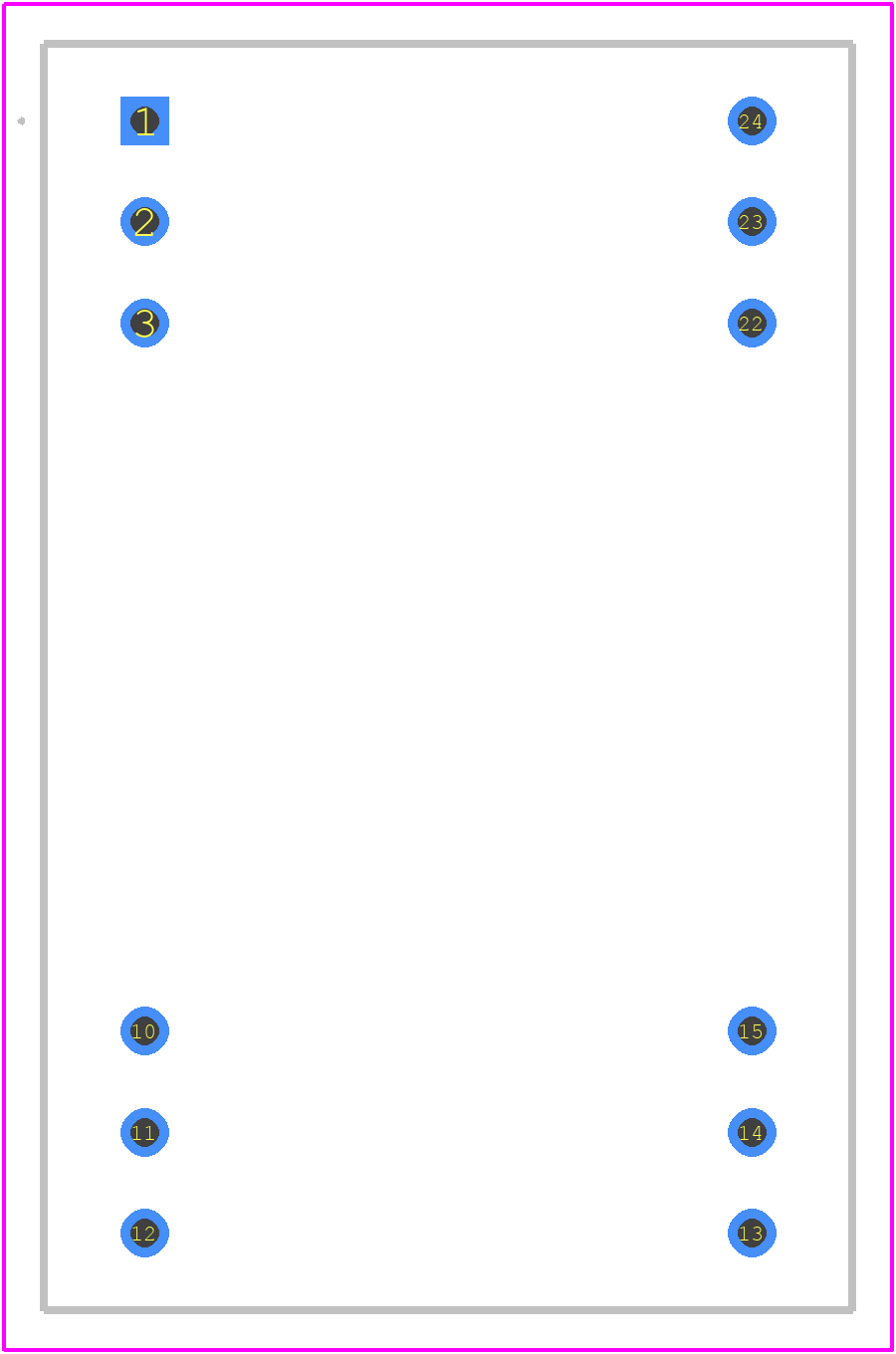

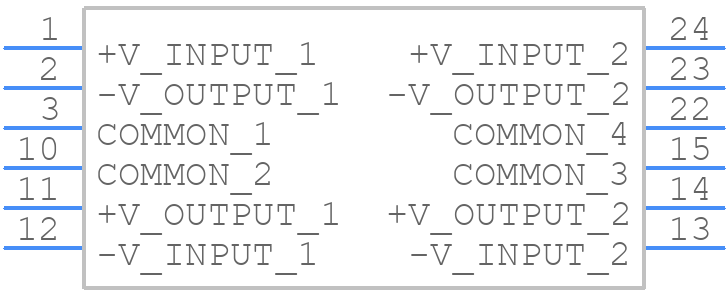

EC3AE34M Details

• Manufacturer Part Number:

  EC3AE34M

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-24/12

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  5

• Additional Feature:

  -12V ADDITIONAL OUTPUT AVAILABLE

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Efficiency (Main Output):

  61%

• Input Voltage-Max:

  30.8 V

• Input Voltage-Min:

  25.2 V

• Input Voltage-Nom:

  28 V

• JESD-30 Code:

  R-PDIP-P12

• Length:

  31.8 mm

• Line Regulation-Max:

  0.3%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  12

• Operating Temperature-Max:

  71 °C

• Operating Temperature-Min:

  -25 °C

• Output Current-Max:

  0.125 A

• Output Voltage-Max:

  12.36 V

• Output Voltage-Min:

  11.64 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  DIP

• Package Equivalence Code:

  DIP12/24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  SHORT CIRCUIT

• Qualification Status:

  Not Qualified

• Ripple Voltage (Main Out):

  0.017675 Vrms

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  15.24 mm
