The recommended PCB layout involves placing the EC3AW04 near the power input, using a solid ground plane, and keeping the input and output traces separate. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC and reduce EMI, use a metal shield around the converter, keep the input and output cables away from each other, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow the recommended layout and grounding guidelines.
The maximum allowable capacitance on the output of the EC3AW04 is 220uF. Exceeding this value may cause instability or oscillation in the converter.
Yes, the EC3AW04 can be used in a redundant or parallel configuration for higher power applications. However, it's essential to ensure proper synchronization and current sharing between the converters to avoid instability or damage.
The typical efficiency of the EC3AW04 is around 85-90%. Efficiency varies with load and input voltage, with higher efficiency at higher loads and lower input voltages. Refer to the datasheet for detailed efficiency curves.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC3AW04 Overview

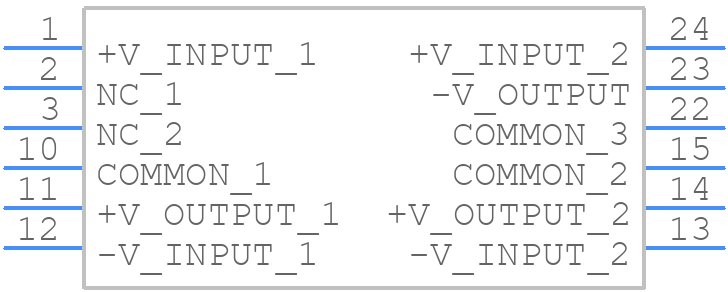

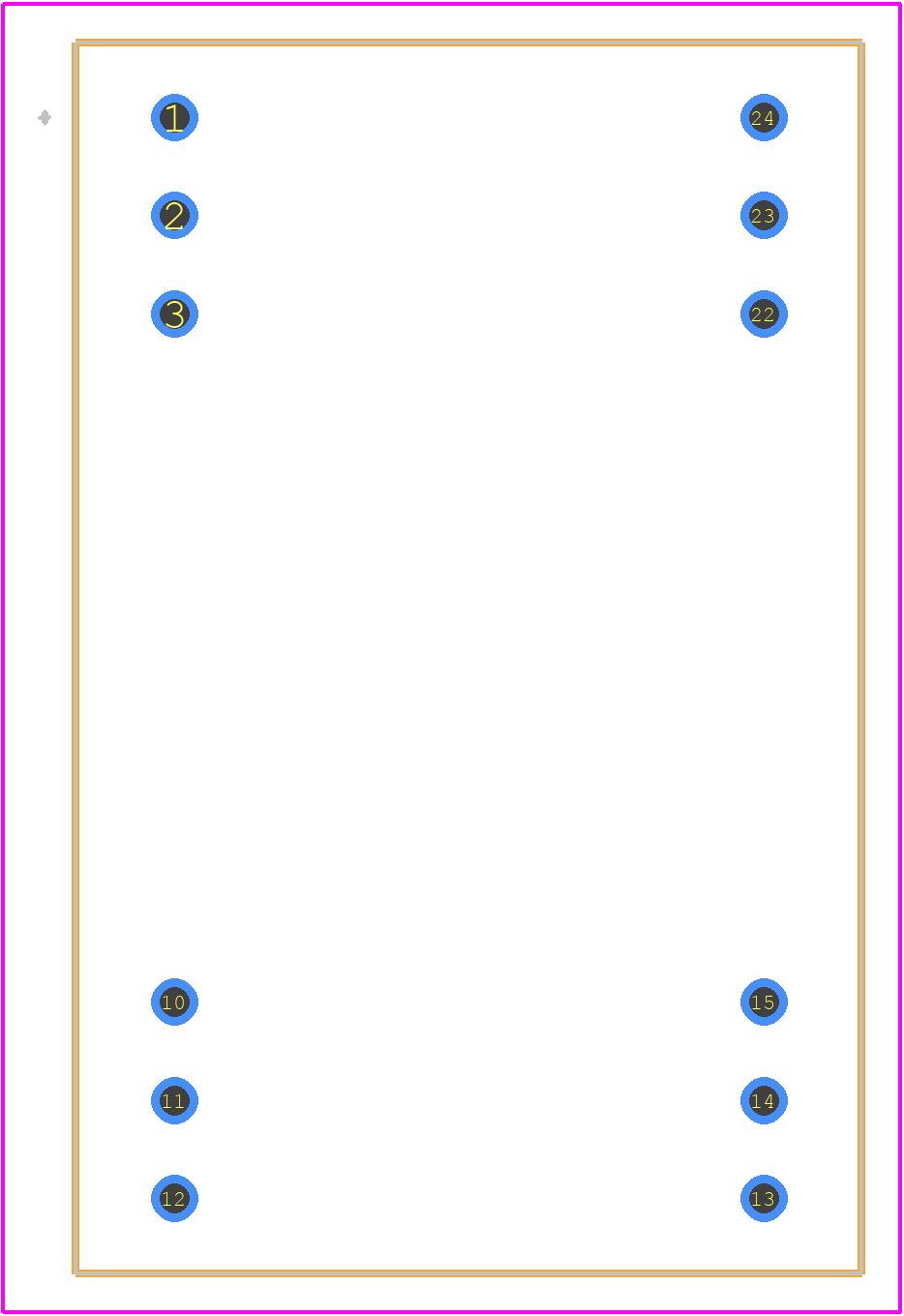

Use the download button to access the EC3AW04 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC3AW,
or try a keyword search, such as Power Supply Modules
