EC3SA-24D05 - Cincon

EC3SA-24D05 Details

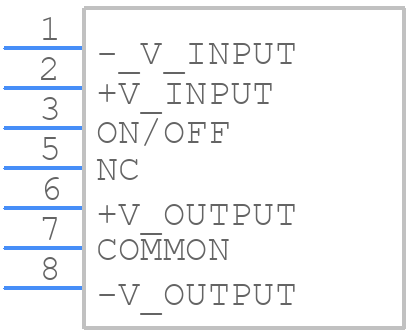

• Manufacturer Part Number:

  EC3SA-24D05

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active Unconfirmed

• Package Description:

  SIP-8/7

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  2

• Additional Feature:

  ALSO HAS -5V OUTPUT

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Efficiency (Main Output):

  80%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  18 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-PSMA-T7

• Length:

  21.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  0.3 A

• Output Voltage-Max:

  5.075 V

• Output Voltage-Min:

  4.925 V

• Output Voltage-Nom:

  5 V

• Package Body Material:

  PLASTIC/EPOXY

• Package Code:

  SMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Protections:

  OUTPUT OVER CURRENT

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Seated Height-Max:

  11.7 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  100 kHz

• Technology:

  HYBRID

• Terminal Form:

  THROUGH-HOLE

• Terminal Pitch:

  2.5 mm

• Terminal Position:

  SINGLE

• Total Power Output-Max:

  3 W

• Trim/Adjustable Output:

  NO

• Width:

  9.1 mm
