A good PCB layout for the EC3SAW-24S05P would involve keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded cable for the input and output connections to reduce EMI.
To ensure reliability and longevity, it's essential to operate the EC3SAW-24S05P within its specified temperature range, avoid overvoltage and overcurrent conditions, and provide adequate cooling. Additionally, using a suitable input filter and ensuring good PCB layout practices can help minimize the risk of electromagnetic interference (EMI) and radio-frequency interference (RFI).
When using the EC3SAW-24S05P, it's essential to ensure that the module is installed and operated in a well-ventilated area, away from flammable materials. Additionally, the module should be handled with care to avoid electrical shock, and the input and output connections should be made with proper insulation to prevent electrical shock or short circuits.
The EC3SAW-24S05P is designed to operate in a variety of environments, including those with high vibration. However, it's essential to ensure that the module is properly secured to the PCB or chassis to prevent mechanical stress and damage. Additionally, the input and output connections should be secured with suitable connectors and cables to prevent damage or disconnection due to vibration.
To troubleshoot issues with the EC3SAW-24S05P, start by checking the input voltage and current, as well as the output voltage and current. Verify that the module is properly installed and connected, and check for any signs of overheating or physical damage. If the issue persists, consult the datasheet and application notes, or contact Cincon Electronics Corporation's technical support for further assistance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC3SAW-24S05P Overview

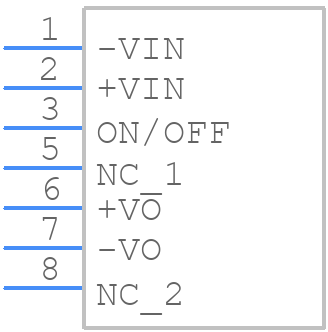

Use the download button to access the EC3SAW-24S05P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC3SA,
or try a keyword search, such as Power Supply Modules
