EC3SAW-24S15P - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 3 Watt, 4:1 Input Range, 9-36VDC Input, 15VDC Output, 1500VDC min. Isolation, Non-Conductive Black Plastic, SIP

Download EC3SAW-24S15P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

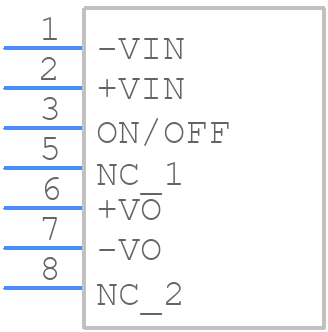

EC3SAW-24S15P - Cincon - PCB symbol
click to zoom
PCB Footprints
EC3SAW-24S15P - Cincon PCB footprint - Other - Other - EC3SAW-24S15P-2
click to zoom
3D Models
EC3SAW-24S15P - Cincon - 3D model - Other - EC3SAW-24S15P-2
click to zoom

EC3SAW-24S15P Details

  • Manufacturer Part Number:

    EC3SAW-24S15P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SIP-8/7

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, UL

  • Efficiency (Main Output):

    84%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PSIP-T7

  • Length:

    21.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    7

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.2 A

  • Output Voltage-Max:

    15.225 V

  • Output Voltage-Min:

    14.775 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SIP

  • Package Equivalence Code:

    SIP7/8,.13

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    INPUT UNDER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.017675 Vrms

  • Screening Level:

    IEC/EN/UL 62368-1

  • Seated Height-Max:

    11.6 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.5 mm

  • Terminal Position:

    SINGLE

  • Total Power Output-Max:

    3 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.005 s

  • Width:

    9.2 mm

EC3SAW-24S15P Frequently Asked Questions (FAQs)

  • Cincon recommends a PCB layout with a solid ground plane and thermal vias under the device to dissipate heat efficiently. A minimum of 2oz copper thickness is recommended for the PCB.
  • To ensure reliable start-up, Cincon recommends a soft-start circuit to limit the inrush current and a sufficient input voltage ramp-up time (typically 10-20ms).
  • The maximum allowed capacitance for the output filter is 10uF to prevent oscillation and ensure stability. Cincon recommends using a low-ESR capacitor with a minimum of 10uF and a maximum of 22uF.
  • While the EC3SAW-24S15P is rated for operation up to 85°C, Cincon recommends derating the output power by 1.5% per degree above 70°C to ensure reliable operation. Additionally, ensure proper thermal design and heat sinking to prevent overheating.
  • To troubleshoot output voltage instability or oscillation, check the input voltage, output capacitance, and PCB layout. Ensure the input voltage is within the specified range, the output capacitance is within the recommended range, and the PCB layout follows Cincon's recommendations. Also, verify that the output voltage is not overloaded.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

EC3SAW-24S15P Overview

Use the download button to access the EC3SAW-24S15P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC3SA, or try a keyword search, such as Power Supply Modules
