EC4A01H - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 5 to 6 Watt, 2:1 Input Range, 9-18VDC Input, 5VDC Output, 3KVDC min. Isolation, Non-Conductive Black Plastic, DIP-24 1.25x0.80x0.40"

Download EC4A01H Model

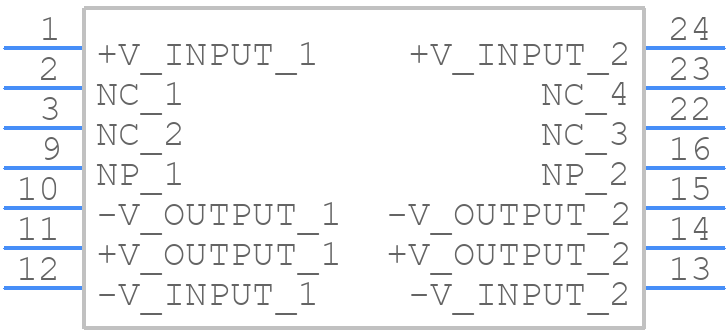

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints

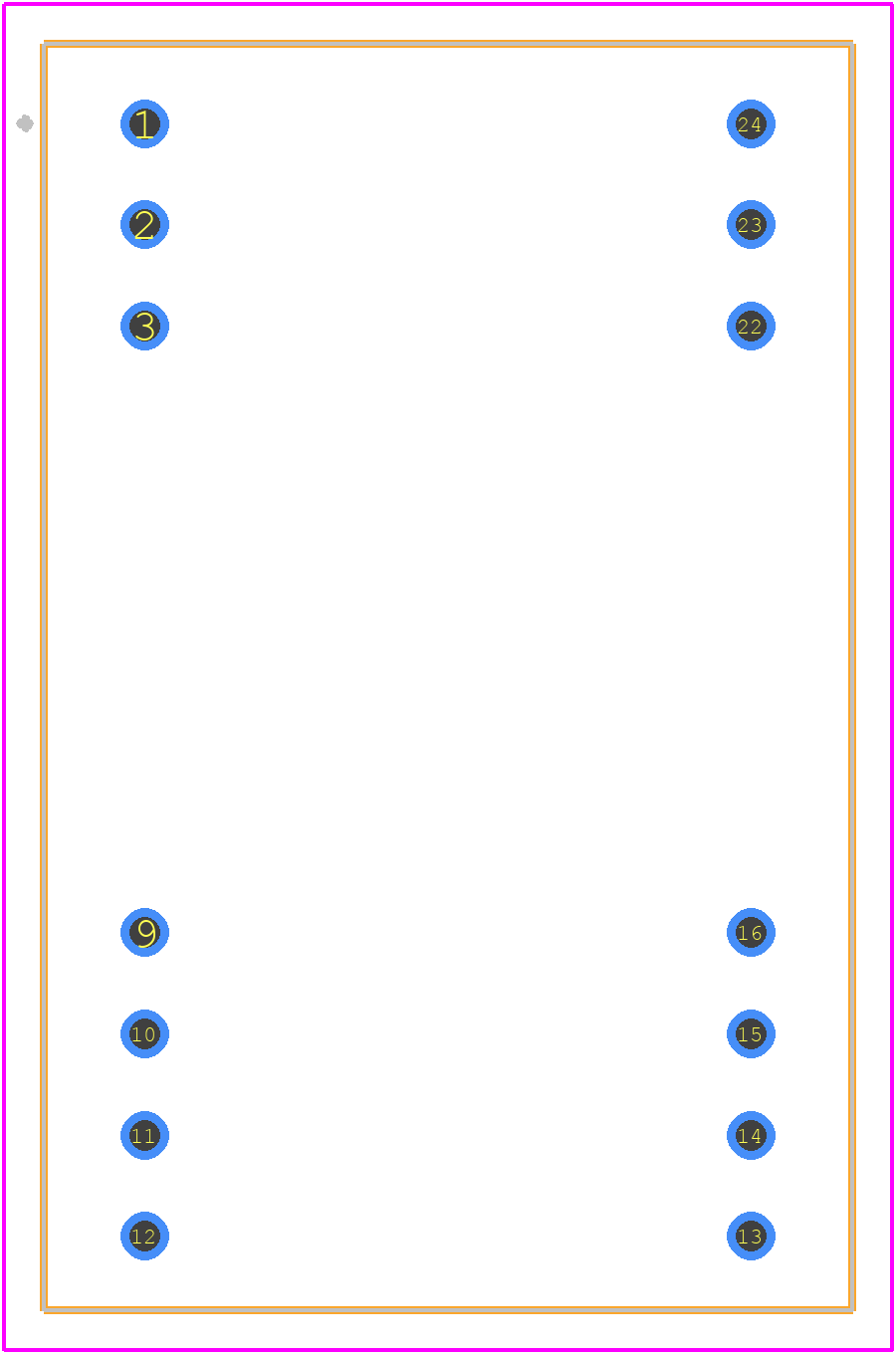

EC4A01H - Cincon PCB footprint - Other - Other - EC4A01H-3
click to zoom
3D Models
EC4A01H - Cincon  - 3D model - Other - EC4A01H-3
click to zoom

EC4A01H Details

  • Manufacturer Part Number:

    EC4A01H

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-10

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    5

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    18 V

  • Input Voltage-Min:

    9 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDIP-T10

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP10/24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Surface Mount:

    NO

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

EC4A01H Frequently Asked Questions (FAQs)

  • A good PCB layout for the EC4A01H should ensure that the input and output capacitors are placed close to the IC, and the high-frequency components are kept away from the low-frequency components. A 4-layer PCB with a solid ground plane is recommended. Additionally, the layout should minimize the loop area of the input and output traces to reduce EMI.
  • To ensure reliability in high-temperature applications, it's essential to follow the recommended derating guidelines for the EC4A01H. The device should be operated within the specified temperature range, and the PCB should be designed to minimize thermal resistance. Additionally, the use of thermal vias and heat sinks can help to dissipate heat effectively.
  • To prevent ESD damage, it's essential to handle the EC4A01H with care. Use an anti-static wrist strap or mat, and ensure that the workspace is ESD-safe. Avoid touching the device's pins or exposed components, and use ESD-safe packaging materials during storage and transportation.
  • No, it's not recommended to use the EC4A01H in a design that requires a higher output current than the specified maximum. Exceeding the maximum output current can lead to overheating, reduced reliability, and even device failure. Instead, consider using a different device that meets the required output current specifications.
  • To troubleshoot issues with the EC4A01H, start by verifying the input voltage, output load, and PCB layout. Check for any signs of overheating, such as excessive temperature rise or thermal shutdown. Use an oscilloscope to monitor the output voltage and current, and check for any signs of oscillation or instability. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
