The recommended PCB layout involves placing the DC-DC converter near the input capacitors and output capacitors, with a solid ground plane and minimal thermal resistance. Thermal management involves providing adequate airflow, using thermal vias, and applying thermal interface materials to ensure the junction temperature remains within the specified range.
To ensure EMC and reduce EMI, use a shielded enclosure, keep the DC-DC converter away from sensitive components, use a common-mode choke, and add EMI filters at the input and output. Additionally, follow proper PCB layout and grounding techniques, and consider using a metal can or shielded package for the converter.
The derating factors for temperature, input voltage, and output current can be obtained from the manufacturer or through testing. As a general guideline, derate the output current by 1-2% per degree Celsius above the recommended operating temperature, and derate the input voltage by 1-2% per volt above the recommended input voltage range.
To troubleshoot common issues, check the input voltage, output load, and PCB layout. Verify that the input capacitors are properly sized and placed, and that the output capacitors are suitable for the application. Check for thermal issues, such as inadequate airflow or poor heat sinking. Consult the datasheet and application notes for specific troubleshooting guidelines.
The reliability and MTBF expectations for the EC4A04HM-E can be obtained from the manufacturer or through testing. As a general guideline, the MTBF is typically in the range of 1-5 million hours, depending on the operating conditions and environment. Consult the manufacturer's reliability report or application notes for specific information.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4A04HM-E Overview

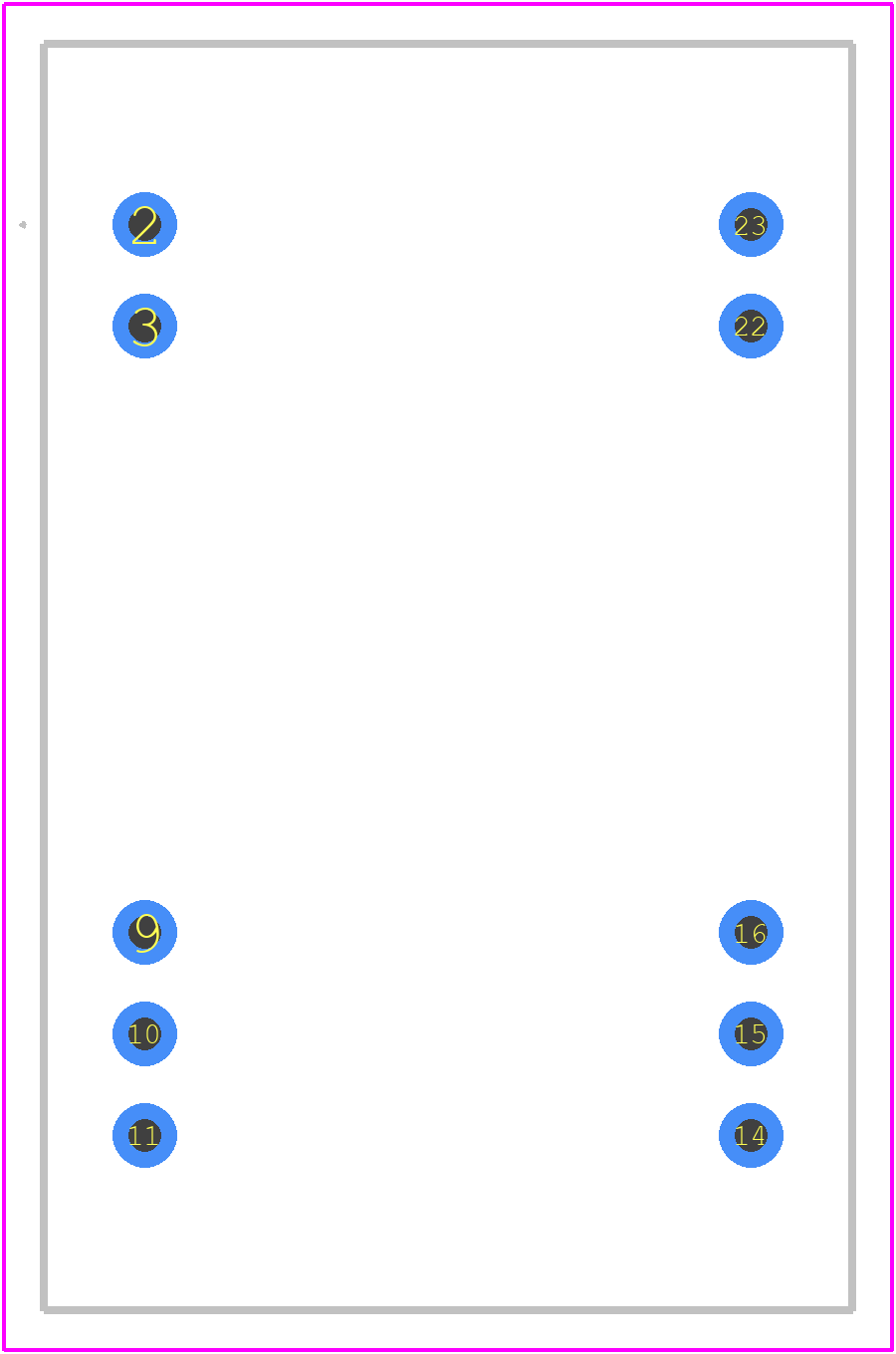

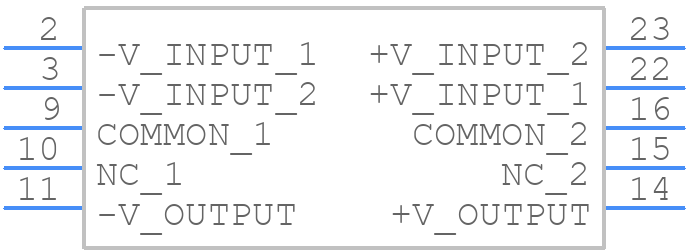

Use the download button to access the EC4A04HM-E schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4A0,
or try a keyword search, such as Power Supply Modules
