EC4A11 - Cincon

Description: Isolated DC/DC Converters DC-DC Converter, 5 to 6 Watt, 2:1 Input Range, 18-36VDC Input, 5VDC Output, 500VDC min. Isolation, Non-Conductive Black Plastic, DIP-24 1.25x0.80x0.40"

Download EC4A11 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

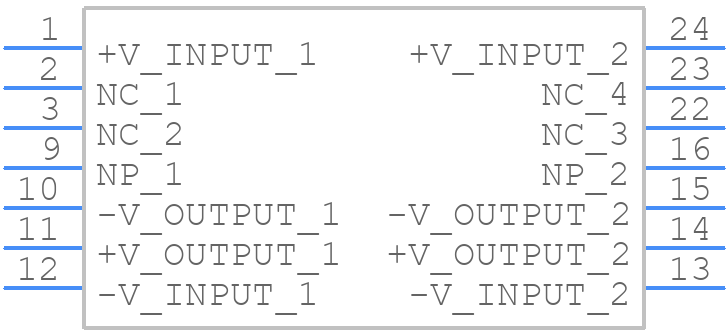

EC4A11 - Cincon - PCB symbol
click to zoom
PCB Footprints

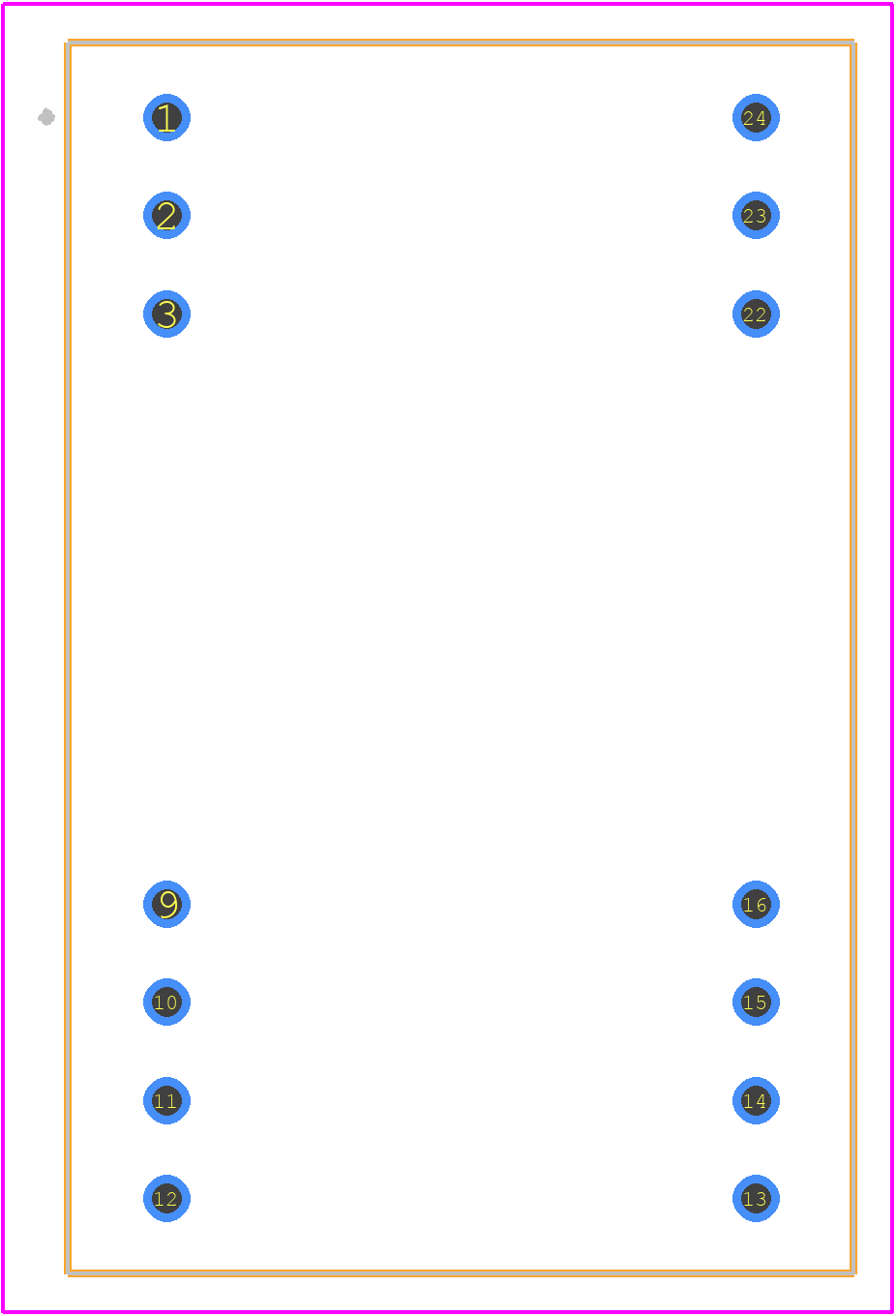

EC4A11 - Cincon PCB footprint - Other - Other - EC4A11-2
click to zoom
3D Models
EC4A11 - Cincon - 3D model - Other - EC4A11-2
click to zoom

EC4A11 Details

  • Manufacturer Part Number:

    EC4A11

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Package Description:

    Module-14

  • Pin Count:

    24/14

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    6

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDMA-T14

  • Length:

    31.81 mm

  • Load Regulation-Max:

    0.5%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    14

  • Operating Temperature-Max:

    71 °C

  • Operating Temperature-Min:

    -25 °C

  • Output Current-Max:

    1 A

  • Output Voltage-Max:

    5.1 V

  • Output Voltage-Min:

    4.9 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP12/24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Temperature Grade:

    COMMERCIAL EXTENDED

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    5 W

  • Trim/Adjustable Output:

    NO

  • Width:

    20.3 mm

EC4A11 Frequently Asked Questions (FAQs)

  • Cincon recommends a 4-layer PCB with a solid ground plane and a separate power plane for the input and output stages. Keep the input and output traces short and away from each other to minimize noise and EMI.
  • Ensure good airflow around the device, and consider using a heat sink if the device is expected to operate in high-temperature environments. Also, follow the recommended thermal design guidelines in the datasheet.
  • The maximum output current of the EC4A11 is 10A, but it's recommended to derate the output current to 8A for continuous operation to ensure reliability and prevent overheating.
  • Yes, the EC4A11 is designed to operate in high-vibration environments, but it's essential to follow proper mounting and soldering techniques to ensure the device remains securely attached to the PCB.
  • Check the input voltage, output load, and PCB layout for any issues. Ensure the device is properly soldered and mounted. Use an oscilloscope to monitor the output voltage and current. Consult the datasheet and Cincon's application notes for troubleshooting guidelines.
