The recommended PCB layout involves placing the EC4AW01 near the power input, using a solid ground plane, and keeping the input and output traces separate. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC and reduce EMI, use a metal shield around the EC4AW01, keep the input and output cables away from each other, and use a common-mode choke or ferrite bead on the input lines. Additionally, follow the recommended layout and grounding guidelines.
The maximum allowable voltage deviation for the EC4AW01 input voltage is ±10% of the nominal input voltage. Exceeding this deviation may affect the converter's performance, efficiency, or reliability.
Yes, the EC4AW01 can be used in a redundant or parallel configuration, but it requires careful design and implementation to ensure proper synchronization, current sharing, and fault tolerance. Consult with Cincon Electronics Corporation or a qualified engineer for guidance.
The recommended input and output capacitors for the EC4AW01 are low-ESR, high-frequency capacitors with a voltage rating that meets or exceeds the maximum input and output voltages. The recommended capacitance values are typically in the range of 10-47 μF for the input and 10-100 μF for the output.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4AW01 Overview

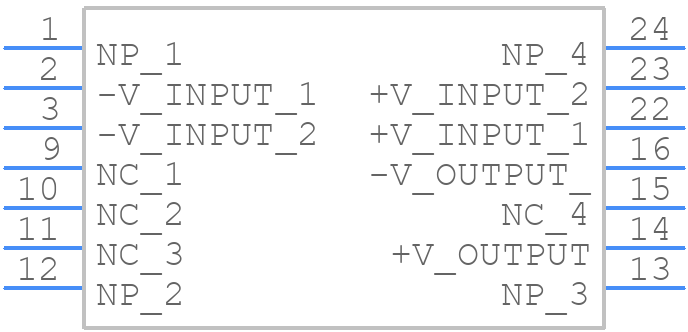

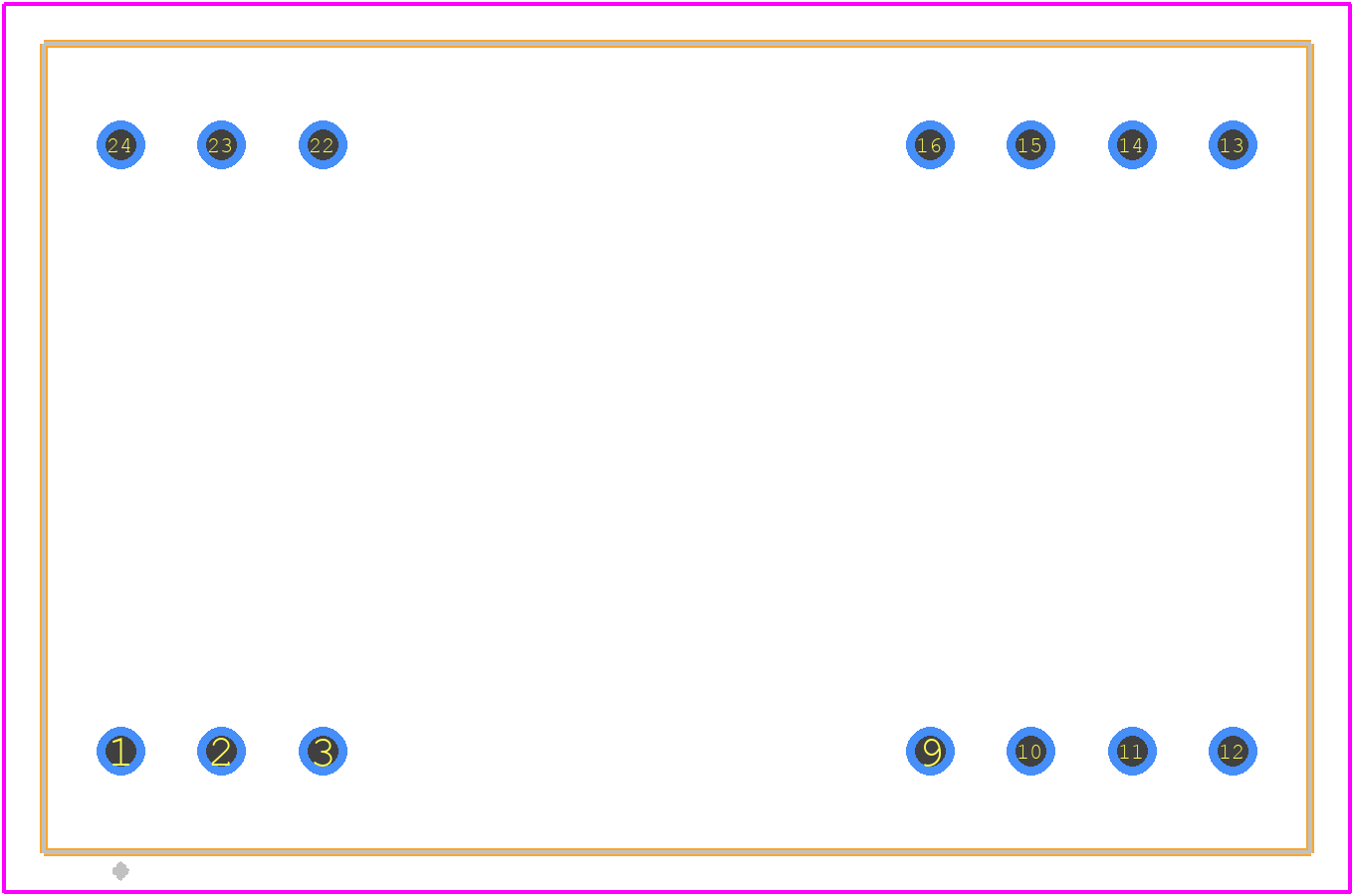

Use the download button to access the EC4AW01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4AW,
or try a keyword search, such as Power Supply Modules
