The recommended PCB layout involves placing the EC4AW07 near the power input, using a solid ground plane, and keeping the input and output traces separate. For thermal management, ensure good airflow, use a heat sink if necessary, and follow the recommended operating temperature range.
To ensure EMC and reduce EMI, use a metal shield around the converter, keep the input and output cables away from each other, and add EMI filters or common-mode chokes if necessary. Also, follow the recommended layout and grounding guidelines.
The maximum allowable capacitance for the input and output capacitors is not explicitly stated in the datasheet. However, as a general rule, it's recommended to use capacitors with a capacitance value of 10-22uF for the input and 10-47uF for the output, with a voltage rating of at least 1.5 times the maximum input voltage.
While the EC4AW07 is a reliable converter, it's essential to evaluate its suitability for high-reliability or high-availability applications. Consider factors like MTBF, failure rates, and derating guidelines. It's recommended to consult with Cincon Electronics Corporation or a qualified reliability engineer for specific guidance.
To troubleshoot common issues, start by verifying the input voltage, output load, and ambient temperature are within the recommended specifications. Check for proper PCB layout, thermal management, and component selection. Use an oscilloscope to monitor the output voltage and current, and consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4AW07 Overview

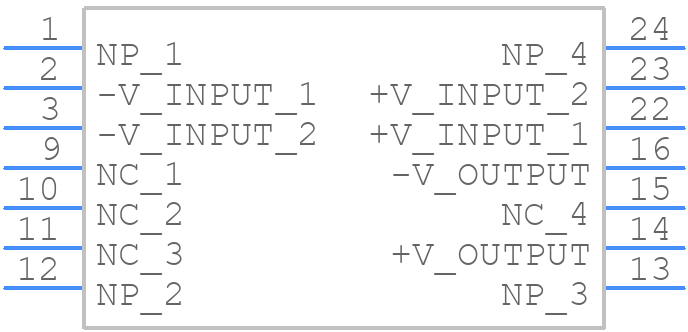

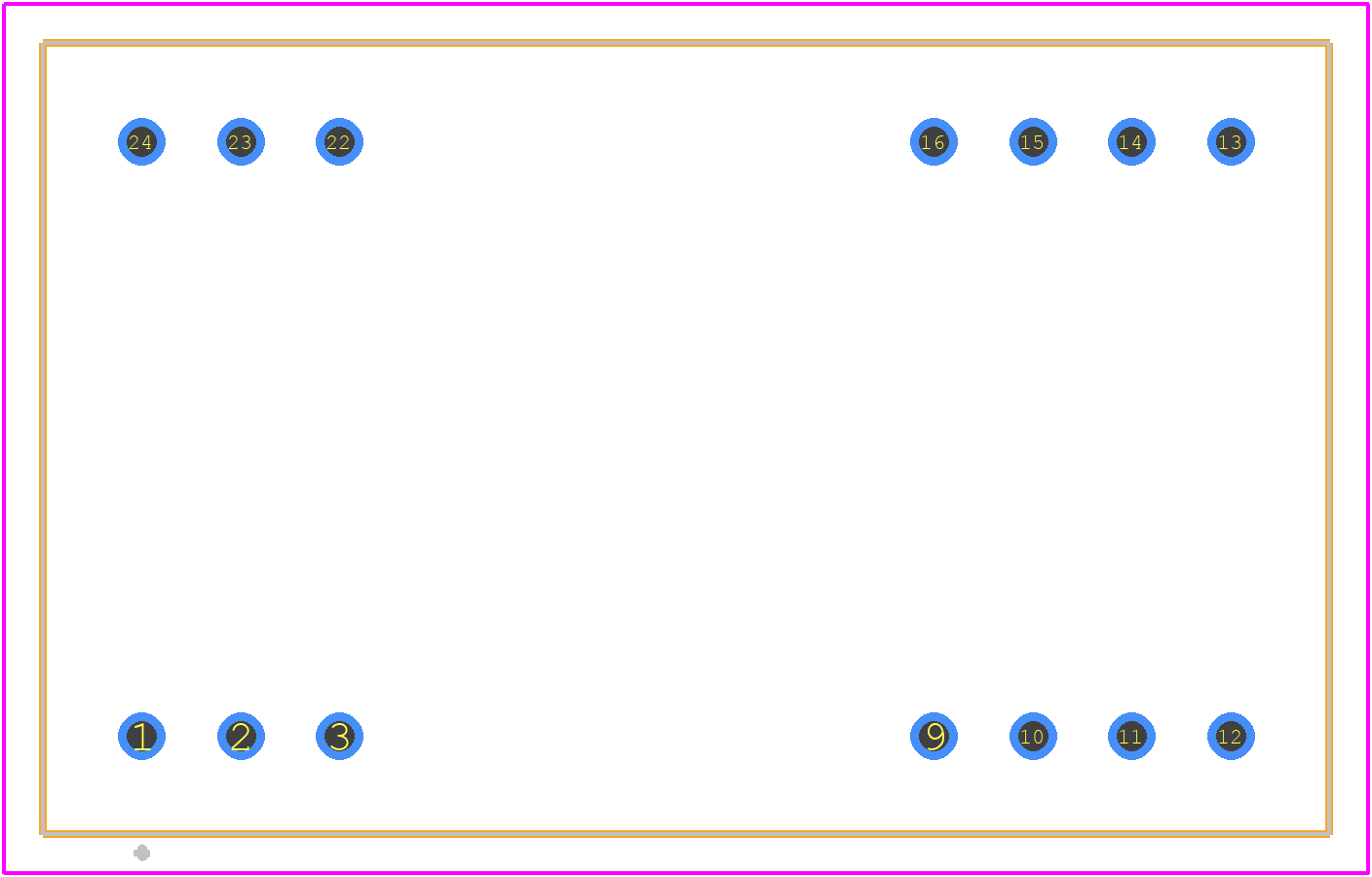

Use the download button to access the EC4AW07 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4AW,
or try a keyword search, such as Power Supply Modules
