The recommended PCB layout for the EC4SAW-24D15HN involves keeping the input and output traces as short as possible, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a shielded inductor and to keep the switching node (pin 3) away from sensitive analog circuits.
To ensure reliable start-up and shutdown of the EC4SAW-24D15HN, it's recommended to add a soft-start circuit to limit the inrush current, and to use a voltage supervisor or reset IC to monitor the output voltage and reset the system if it falls out of spec. Additionally, a proper input voltage sequencing and a sufficient input capacitance are crucial for reliable start-up.
The maximum allowed input voltage ripple for the EC4SAW-24D15HN is typically 1% to 2% of the nominal input voltage. Exceeding this limit may affect the converter's stability and efficiency. It's recommended to use input capacitors with low ESR and to add input filters if necessary to reduce the input voltage ripple.
The EC4SAW-24D15HN is rated for operation up to 85°C ambient temperature. However, the device's performance and reliability may be affected at higher temperatures. It's recommended to derate the output power and to use a heat sink or thermal management system to keep the device temperature within the specified range.
To troubleshoot common issues with the EC4SAW-24D15HN, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly sized and that the PCB layout is correct. Check for signs of overheating, such as excessive temperature rise or burning smells. Use an oscilloscope to monitor the switching node and output voltage waveforms for signs of instability or oscillation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC4SAW-24D15HN Overview

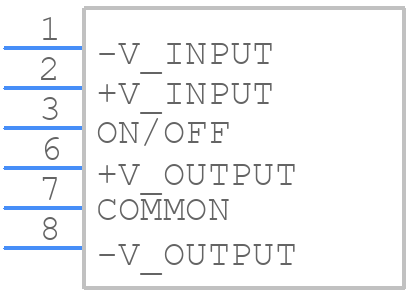

Use the download button to access the EC4SAW-24D15HN schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC4SA,
or try a keyword search, such as Power Supply Modules
