A good PCB layout for the EC5SAW-24S05N would involve keeping the input and output capacitors close to the module, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a shielded cable for the input and output connections to reduce EMI.
To ensure the reliability and longevity of the EC5SAW-24S05N, it's essential to operate it within the recommended temperature range, avoid overvoltage and overcurrent conditions, and provide adequate cooling. Additionally, it's recommended to follow the recommended soldering and handling procedures to prevent damage during assembly.
Yes, the EC5SAW-24S05N is designed to withstand high-vibration environments. However, it's essential to ensure that the module is properly secured to the PCB and that the PCB is designed to withstand the vibration. Additionally, it's recommended to follow the recommended soldering and handling procedures to prevent damage during assembly.
To troubleshoot issues with the EC5SAW-24S05N, start by checking the input voltage and current, as well as the output voltage and current. Verify that the module is properly connected and that the input and output capacitors are properly installed. If the issue persists, consult the datasheet and application notes for troubleshooting guidelines or contact Cincon Electronics Corporation's technical support.
Yes, the EC5SAW-24S05N is compatible with lead-free soldering processes. However, it's essential to follow the recommended soldering profile and procedures to ensure reliable assembly.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC5SAW-24S05N Overview

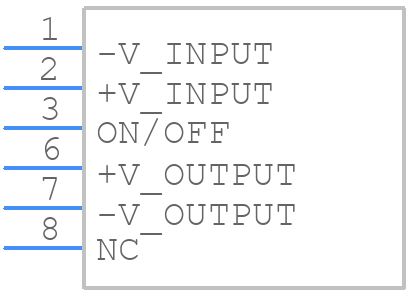

Use the download button to access the EC5SAW-24S05N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC5SA,
or try a keyword search, such as Power Supply Modules
