The recommended PCB layout involves placing the DC-DC converter near the input capacitors, using a solid ground plane, and keeping the output capacitors close to the output pins. Thermal management involves providing adequate airflow, using a heat sink if necessary, and ensuring the ambient temperature is within the specified range.
To ensure EMC and reduce EMI, use a metal shield around the module, keep the input and output cables as short as possible, and use twisted pair cables for input and output connections. Additionally, follow proper PCB layout and grounding techniques, and consider adding EMI filters if necessary.
The derating curve is typically provided by the manufacturer upon request. It shows the reduction in output power as a function of ambient temperature. The derating curve is usually linear, and the output power is reduced by a certain percentage per degree Celsius above the specified operating temperature range.
Yes, the EC5SAW-48S12N can be used in a redundant or parallel configuration, but it requires careful design and consideration of the input and output connections, as well as the thermal management and PCB layout. It's recommended to consult with the manufacturer or a qualified engineer to ensure proper implementation.
The EC5SAW-48S12N is commonly used in industrial control systems, telecommunications, datacom, and computer peripherals. It's also used in medical devices, aerospace, and defense applications where high reliability and efficiency are required.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC5SAW-48S12N Overview

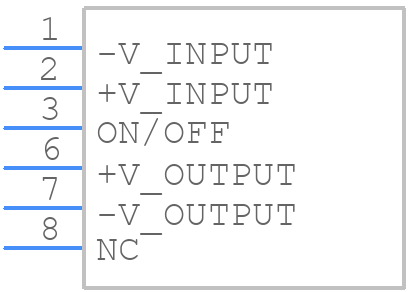

Use the download button to access the EC5SAW-48S12N schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC5SA,
or try a keyword search, such as Power Supply Modules
