A good PCB layout for the EC6A01 should ensure that the input and output capacitors are placed close to the IC, and the high-current paths are kept short and wide. Additionally, a solid ground plane and proper decoupling are essential for noise reduction and stability.
Choose input capacitors with low ESR (Equivalent Series Resistance) and high ripple current rating. For output capacitors, select ones with low ESR, high capacitance, and a voltage rating that meets or exceeds the output voltage. Consult the datasheet for specific recommendations.
The EC6A01 is rated for operation up to 85°C ambient temperature. However, it's recommended to derate the output power and ensure proper heat sinking to maintain a junction temperature below 125°C for reliable long-term operation.
While the EC6A01 is a high-quality component, it may not meet the specific requirements for high-reliability or automotive applications. Consult Cincon Electronics Corporation for availability of automotive-grade or high-reliability versions of the EC6A01, or consider alternative components that meet the necessary standards.
Common issues with the EC6A01 can be troubleshooted by checking the input voltage, output load, and PCB layout. Ensure that the input voltage is within the recommended range, the output load is within the specified current rating, and the PCB layout is optimized for thermal performance. Consult the datasheet and application notes for more detailed troubleshooting guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC6A01 Overview

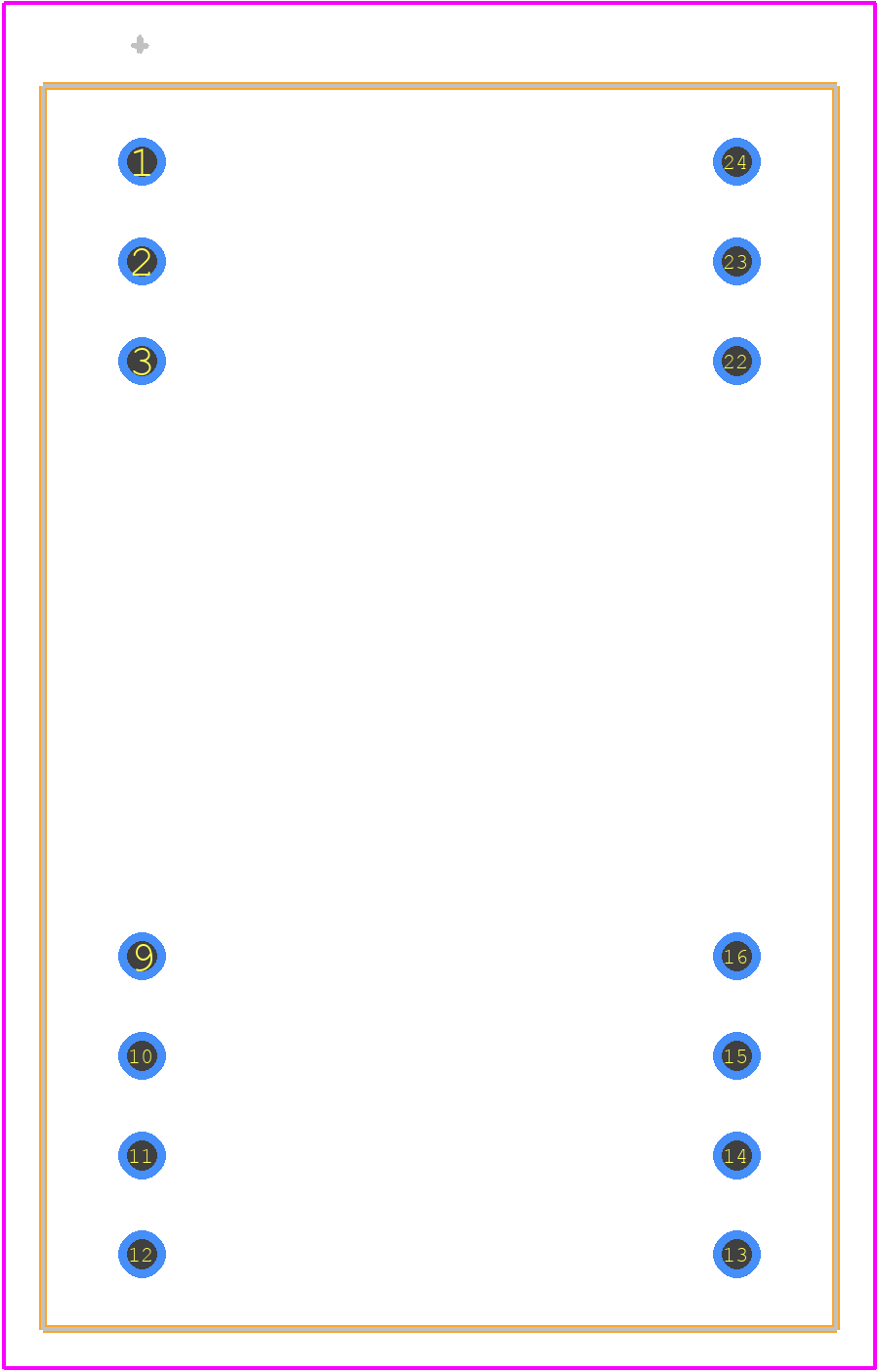

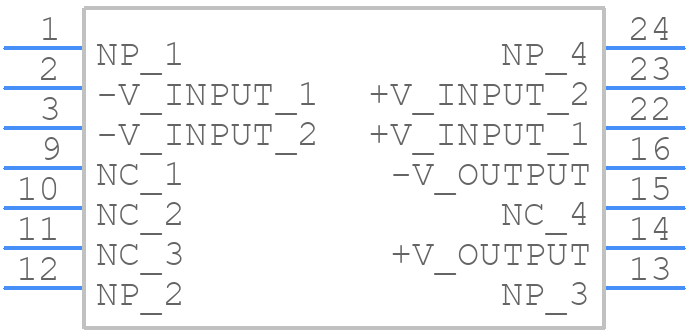

Use the download button to access the EC6A01 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC6A0,
or try a keyword search, such as Power Supply Modules
