- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for EC6A02
- Part Number EC6A02
- Manufacturer Cincon
- Pin Count 14
- Part Category Connector
- Package Category Other

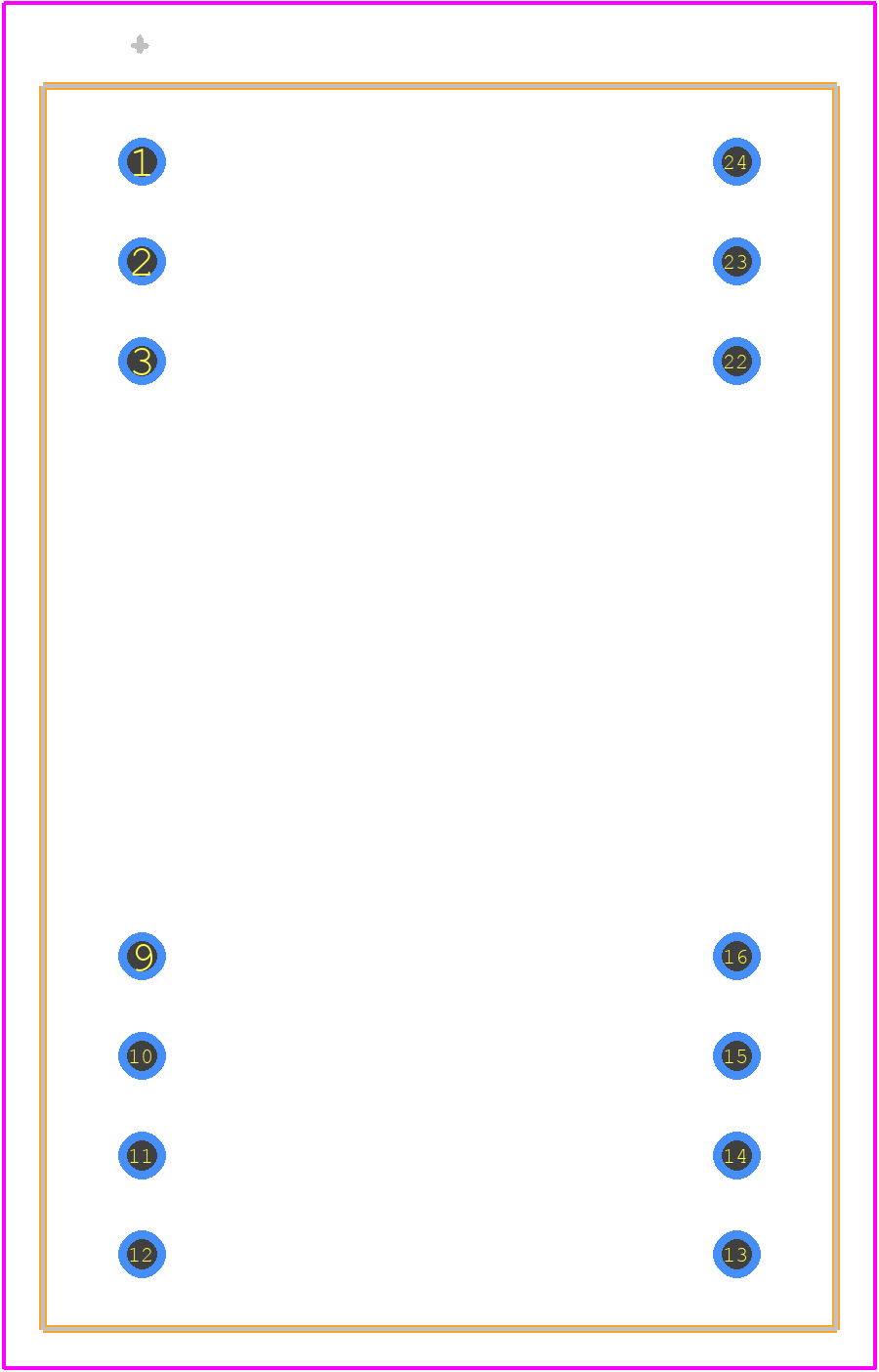

- Footprint Name Other - EC6A02-3
- Released Date Jan 16, 2020
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
EC6A02 Details
-
Manufacturer Part Number:
EC6A02
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
DIP
-
Package Description:
Module-14
-
Pin Count:
24/14
-
ECCN Code:
EAR99
-
Manufacturer:
Cincon Electronics Corporation
-
YTEOL:
6
-
Analog IC - Other Type:
DC-DC REGULATED POWER SUPPLY MODULE
-
Input Voltage-Max:
18 V
EC6A02 Frequently Asked Questions (FAQs)
-
A good PCB layout for the EC6A02 should ensure that the input and output capacitors are placed close to the IC, and the high-frequency components are kept away from the low-frequency components. A 4-layer PCB with a solid ground plane is recommended to reduce EMI and noise.
-
To ensure the stability of the output voltage, it's essential to use a sufficient output capacitor with a low ESR value. The output capacitor should be placed close to the IC, and the feedback resistors should be chosen to ensure a stable feedback loop. Additionally, the input voltage should be well-regulated and filtered to prevent noise and ripple from affecting the output voltage.
-
The maximum ambient temperature for reliable operation of the EC6A02 is 85°C. However, it's recommended to derate the output current and power dissipation at higher temperatures to ensure reliable operation and prevent overheating.
-
The EC6A02 is a commercial-grade component, and it may not meet the requirements for high-reliability or automotive applications. It's recommended to consult with Cincon Electronics Corporation or a qualified engineer to determine the suitability of the EC6A02 for such applications.
-
To troubleshoot issues with the EC6A02, start by checking the input voltage, output voltage, and output current. Verify that the input and output capacitors are properly connected and meet the recommended specifications. Check for any signs of overheating, such as excessive temperature rise or burning smells. Use an oscilloscope to check for noise and ripple on the input and output lines. Consult the datasheet and application notes for guidance on troubleshooting and debugging.
Trust Checks
Expert Contribution
System Verified
Community Approved
EC6A02 Overview

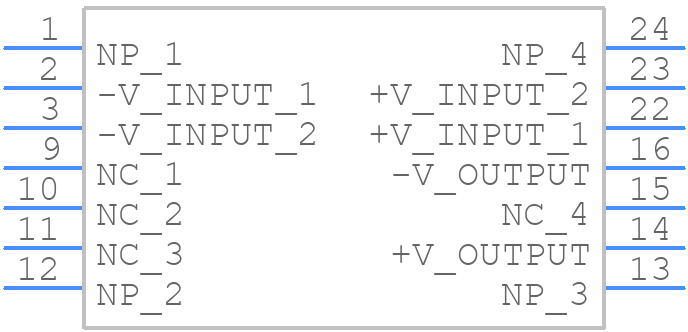

Use the download button to access the EC6A02 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like EC6A0,
or try a keyword search, such as Power Supply Modules
