EC7A-12S25 - Cincon

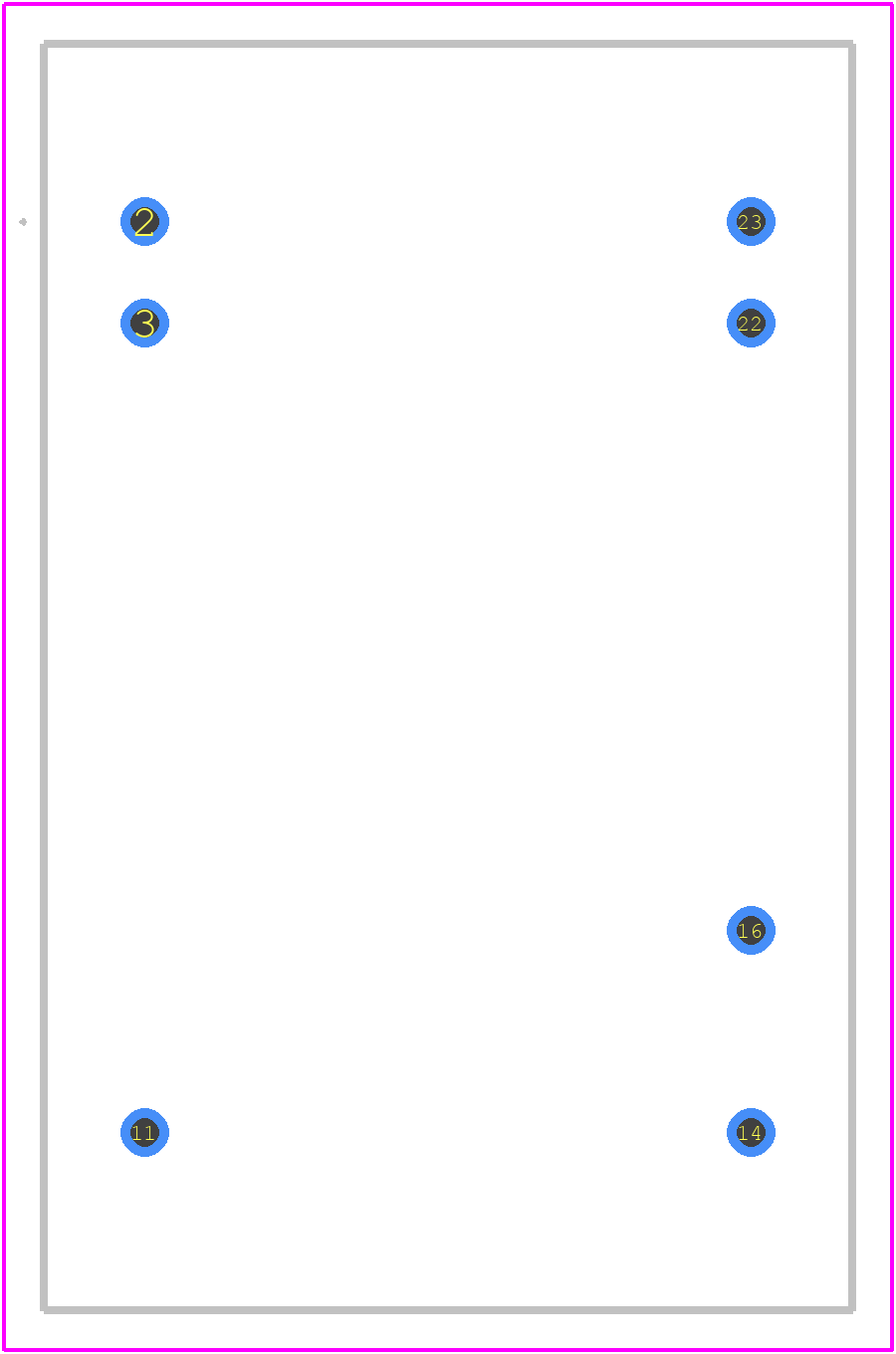

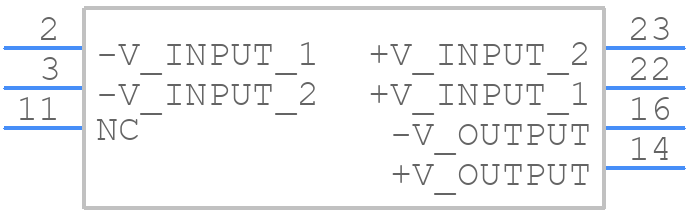

EC7A-12S25 Details

• Manufacturer Part Number:

  EC7A-12S25

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  DIP-24/7

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  5

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  IEC, EN, UL

• Efficiency (Main Output):

  85%

• Input Voltage-Max:

  18 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  12 V

• JESD-30 Code:

  R-MDIP-P7

• Length:

  31.8 mm

• Line Regulation-Max:

  0.2%

• Load Regulation-Max:

  0.5%

• Number of Functions:

  1

• Number of Outputs:

  1

• Number of Terminals:

  7

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  3 A

• Output Voltage-Max:

  2.5375 V

• Output Voltage-Min:

  2.4625 V

• Output Voltage-Nom:

  2.5 V

• Package Body Material:

  METAL

• Package Code:

  DIP

• Package Equivalence Code:

  DIP7/24,.6

• Package Shape:

  RECTANGULAR

• Package Style:

  IN-LINE

• Protections:

  INPUT UNDER VOLTAGE; OUTPUT OVER VOLTAGE; SHORT CIRCUIT

• Ripple Voltage (Main Out):

  0.0265125 Vrms

• Seated Height-Max:

  10.7 mm

• Surface Mount:

  NO

• Technology:

  HYBRID

• Terminal Form:

  PIN/PEG

• Terminal Pitch:

  2.54 mm

• Terminal Position:

  DUAL

• Total Power Output-Max:

  7.5 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.008 s

• Width:

  15.24 mm
