EC7A-24D15 - Cincon

Description: Isolated DC/DC Converters - Through Hole DC-DC Converter, 10 Watt, 2:1 Input Range, 18-36VDC Input, +/-15VDC Output, 1.5KVDC min. Isolation, Black Coated Copper with Non-Conductive Base, DIP-24

Download EC7A-24D15 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

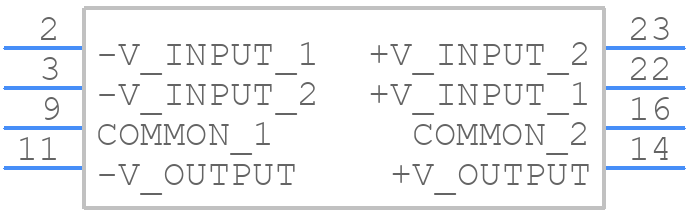

EC7A-24D15 - Cincon - PCB symbol
click to zoom
PCB Footprints

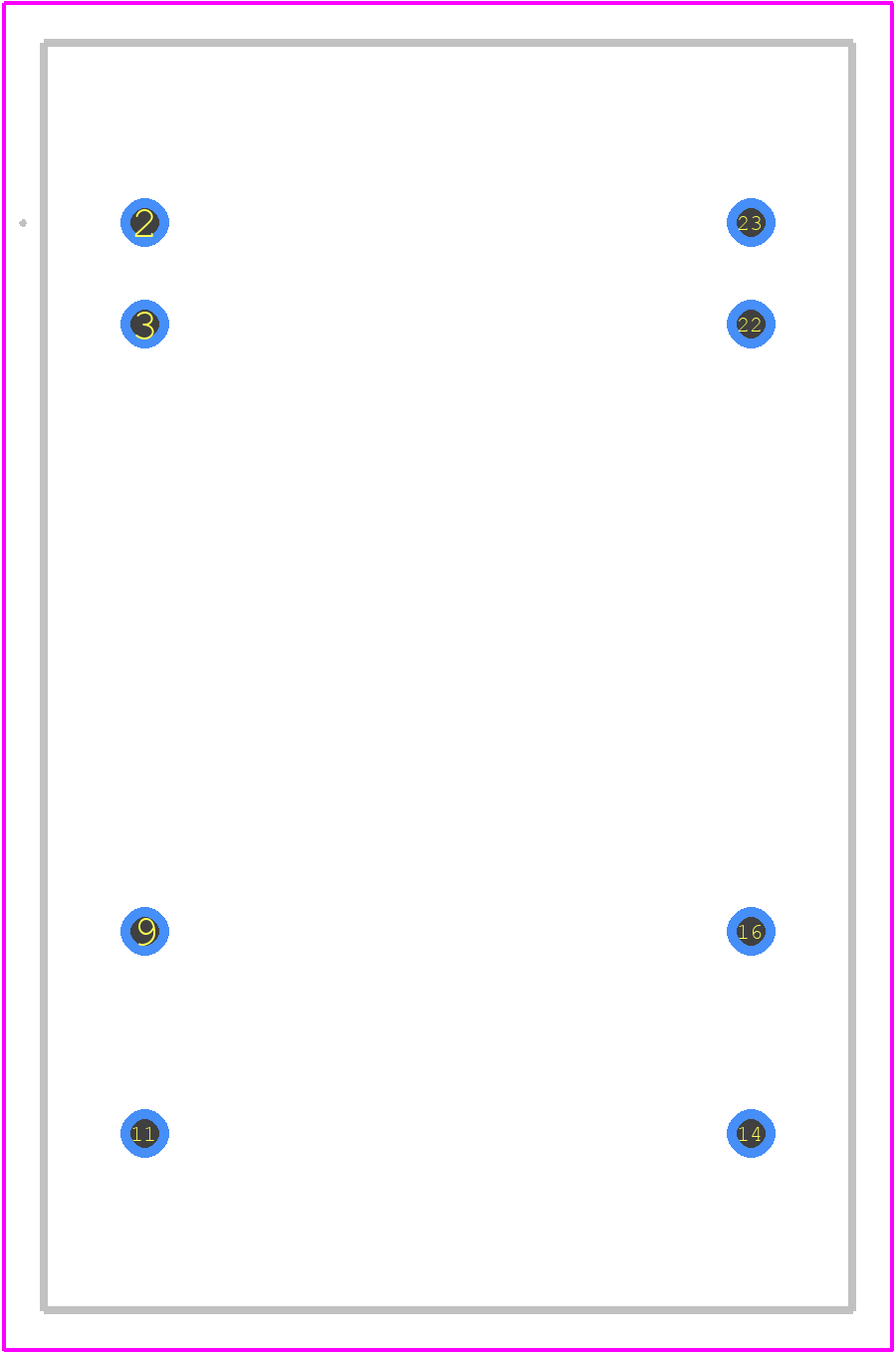

EC7A-24D15 - Cincon PCB footprint - Other - Other - 24-DIP Module, 8 Leads_2025
click to zoom
3D Models
EC7A-24D15 - Cincon - 3D model - Other - 24-DIP Module, 8 Leads_2025
click to zoom

EC7A-24D15 Details

  • Manufacturer Part Number:

    EC7A-24D15

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    DIP-24/8

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    5

  • Additional Feature:

    -15V ADDITIONAL OUTPUT AVAILABLE

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, EN, UL

  • Efficiency (Main Output):

    87%

  • Input Voltage-Max:

    36 V

  • Input Voltage-Min:

    18 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-MDIP-P8

  • Length:

    31.8 mm

  • Line Regulation-Max:

    0.5%

  • Load Regulation-Max:

    1%

  • Number of Functions:

    1

  • Number of Outputs:

    2

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    0.333 A

  • Output Voltage-Max:

    15.225 V

  • Output Voltage-Min:

    14.775 V

  • Output Voltage-Nom:

    15 V

  • Package Body Material:

    METAL

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8/24,.6

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Protections:

    INPUT UNDER VOLTAGE; OUTPUT OVER VOLTAGE; SHORT CIRCUIT

  • Ripple Voltage (Main Out):

    0.03535 Vrms

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    10 W

  • Trim/Adjustable Output:

    NO

  • Warm-up Time:

    0.008 s

  • Width:

    15.24 mm

EC7A-24D15 Frequently Asked Questions (FAQs)

  • Cincon recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal pad on the top layer connected to the heat sink. Ensure a minimum of 1 oz copper thickness and a 10 mils gap between the thermal pad and the surrounding copper.
  • Implement a soft-start circuit to limit the inrush current during start-up. For shutdown, ensure a controlled decrease in input voltage to prevent voltage spikes. Consult Cincon's application notes for specific guidance.
  • Cincon recommends using low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output. Ensure the capacitors are rated for the maximum operating voltage and temperature range.
  • Implement overcurrent protection using a fuse or a current-sensing resistor. For overvoltage protection, use a voltage supervisor or a zener diode to clamp the output voltage. Consult Cincon's application notes for specific guidance.
  • The EC7A-24D15 is rated for operation up to 85°C ambient temperature. However, derating may be necessary for high-power applications or extreme environmental conditions. Consult Cincon's thermal derating curves for specific guidance.
