INPUT UNDER VOLTAGE; OUTPUT OVER VOLTAGE; SHORT CIRCUIT
Ripple Voltage (Main Out):
0.0265125 Vrms
Seated Height-Max:
10.7 mm
Surface Mount:
NO
Technology:
HYBRID
Terminal Form:
PIN/PEG
Terminal Pitch:
2.54 mm
Terminal Position:
DUAL
Total Power Output-Max:
10 W
Trim/Adjustable Output:
NO
Warm-up Time:
0.06 s
Width:
15.24 mm
EC7A-24S05 Frequently Asked Questions (FAQs)
For optimal performance, it's recommended to follow the datasheet's recommended PCB layout and thermal management guidelines. Ensure a minimum of 1-inch clearance around the module, use a 4-layer PCB with a solid ground plane, and implement a thermal pad or heat sink to dissipate heat.
To ensure EMC and reduce EMI, follow the datasheet's guidelines for PCB layout, component placement, and shielding. Use a metal enclosure, and consider adding EMI filters or ferrite beads to the input and output lines.
Derating curves can be obtained from Cincon Electronics Corporation directly or through their authorized distributors. These curves provide information on the module's performance under various operating conditions, such as temperature and load.
Implement OVP and UVP using external components, such as zener diodes or voltage supervisors, to protect the module from voltage fluctuations. Consult the datasheet for specific implementation guidelines.
The recommended input and output capacitors are typically specified in the datasheet. For the EC7A-24S05, use low-ESR capacitors with a minimum capacitance of 10uF for the input and 22uF for the output.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
EC7A-24S05 Overview

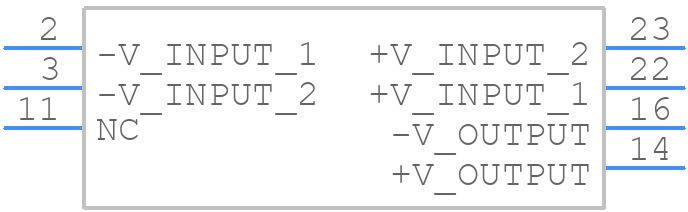

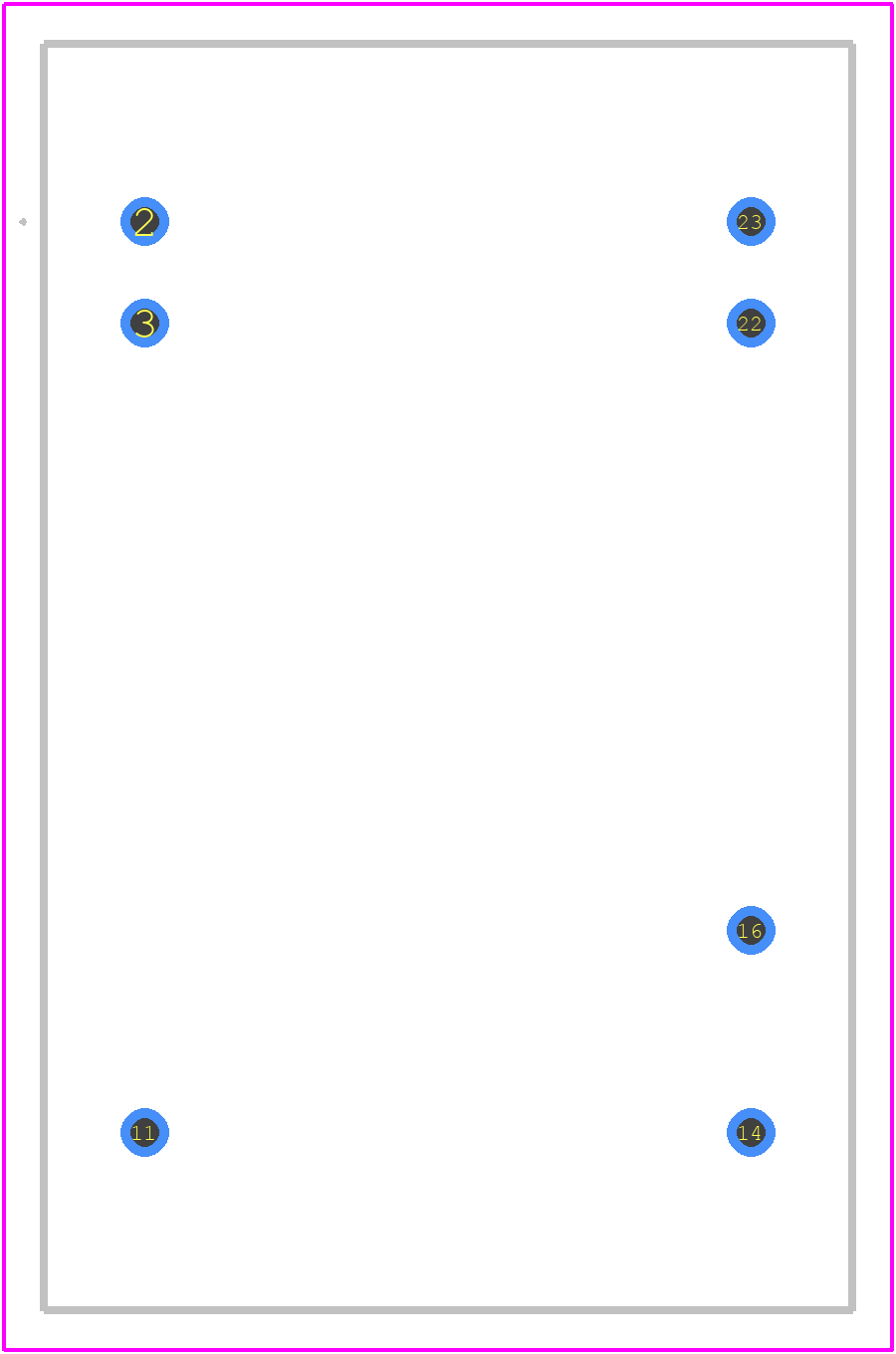

Use the download button to access the EC7A-24S05 schematic symbol, PCB footprint, and 3D model.
