EC7BW18-72S05 - Cincon

Description: Isolated DC/DC Converters 20W 8.5-160Vin 5Vout 4A

Download EC7BW18-72S05 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

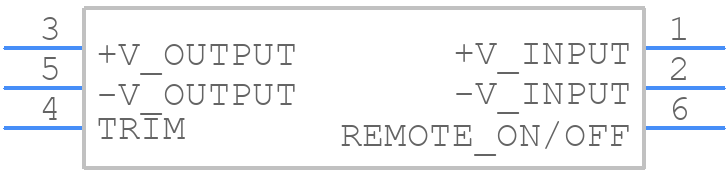

Symbol
EC7BW18-72S05 - Cincon - PCB symbol
click to zoom
PCB Footprints
EC7BW18-72S05 - Cincon PCB footprint - Other - Other - EC7BW18-72S05-3
click to zoom
3D Models
EC7BW18-72S05 - Cincon - 3D model - Other - EC7BW18-72S05-3
click to zoom

EC7BW18-72S05 Details

  • Manufacturer Part Number:

    EC7BW18-72S05

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    PACKAGE-6

  • ECCN Code:

    EAR99

  • Manufacturer:

    Cincon Electronics Corporation

  • YTEOL:

    7

  • Analog IC - Other Type:

    DC-DC REGULATED POWER SUPPLY MODULE

  • Approvals:

    IEC, UL, EN

  • Efficiency (Main Output):

    86%

  • Input Voltage-Max:

    160 V

  • Input Voltage-Min:

    8.5 V

  • Input Voltage-Nom:

    72 V

  • JESD-30 Code:

    R-PDMA-P6

  • Length:

    50.8 mm

  • Line Regulation-Max:

    0.2%

  • Load Regulation-Max:

    0.2%

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    4 A

  • Output Voltage-Max:

    5.75 V

  • Output Voltage-Min:

    4 V

  • Output Voltage-Nom:

    5 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DMA

  • Package Shape:

    RECTANGULAR

  • Package Style:

    MICROELECTRONIC ASSEMBLY

  • Protections:

    OVER VOLTAGE; OVER CURRENT; OVER TEMPERATURE

  • Ripple Voltage (Main Out):

    0.02651 Vrms

  • Screening Level:

    EN-50155

  • Seated Height-Max:

    10.7 mm

  • Surface Mount:

    NO

  • Technology:

    HYBRID

  • Terminal Form:

    PIN/PEG

  • Terminal Position:

    DUAL

  • Total Power Output-Max:

    20 W

  • Trim/Adjustable Output:

    YES

  • Warm-up Time:

    0.015 s

  • Width:

    25.4 mm

EC7BW18-72S05 Frequently Asked Questions (FAQs)

  • The recommended PCB layout and thermal management for optimal performance can be obtained by contacting Cincon Electronics Corporation's technical support team or by referring to their application notes. They can provide guidance on heat sink design, PCB layout, and thermal management to ensure the DC-DC converter operates within its specified temperature range.
  • To ensure EMC and EMI compliance, it is recommended to follow the guidelines provided in the datasheet and application notes. Additionally, Cincon Electronics Corporation can provide guidance on EMI filter design, shielding, and layout considerations to minimize electromagnetic interference.
  • The maximum allowable capacitance for the input and output capacitors is not specified in the datasheet. However, it is recommended to follow the guidelines provided in the application notes or to consult with Cincon Electronics Corporation's technical support team to determine the optimal capacitance values for the specific application.
  • The EC7BW18-72S05 is a commercial-grade DC-DC converter, and its reliability and availability may not meet the requirements of high-reliability or high-availability applications. Cincon Electronics Corporation may offer customized or ruggedized versions of the DC-DC converter for such applications. It is recommended to consult with their technical support team to discuss the specific requirements.
  • The derating curve for the DC-DC converter's output power versus ambient temperature is not provided in the datasheet. However, Cincon Electronics Corporation can provide this information upon request, which can help engineers determine the maximum output power at different ambient temperatures.
