EC9BW-24D12 - Cincon

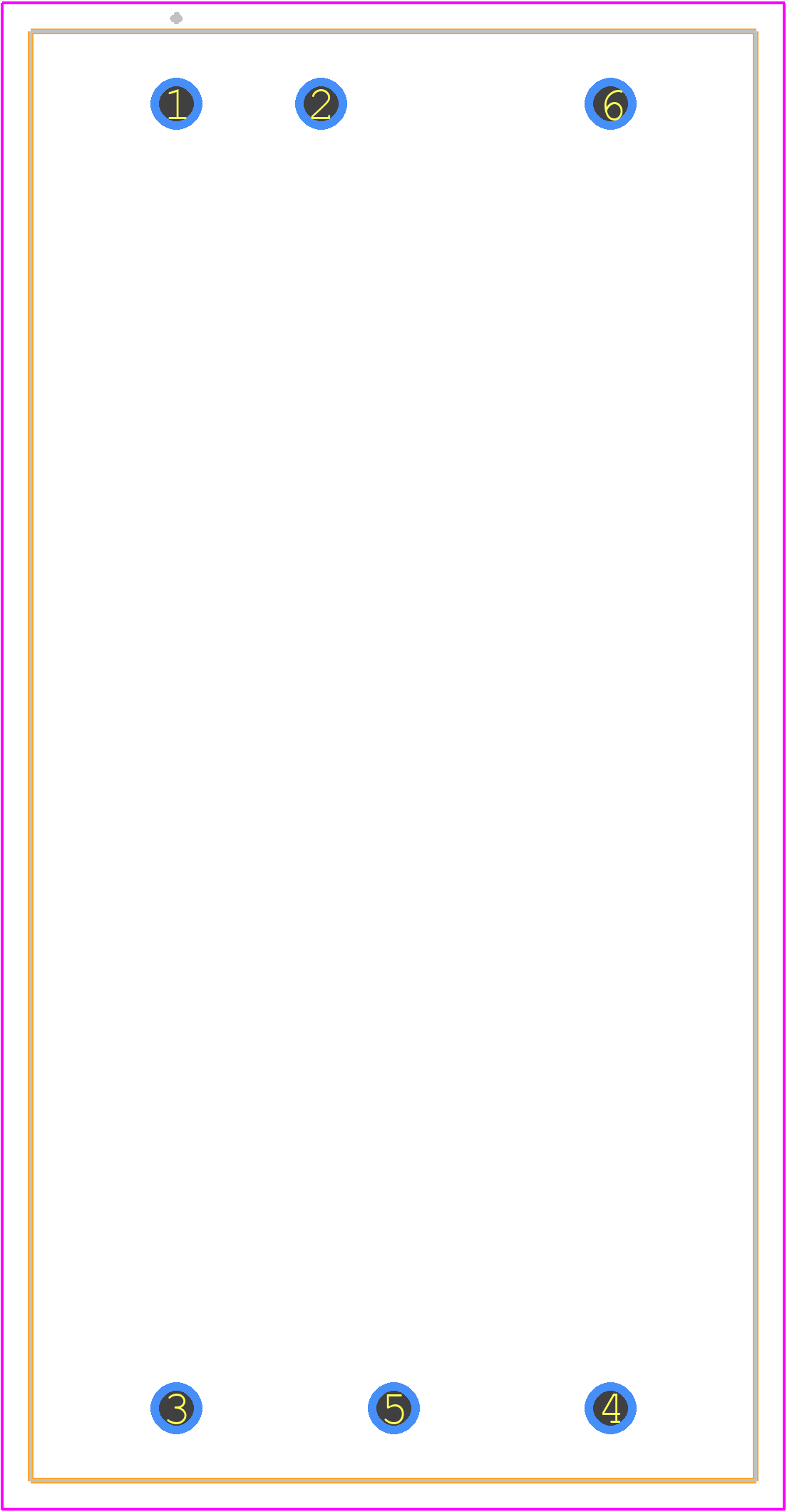

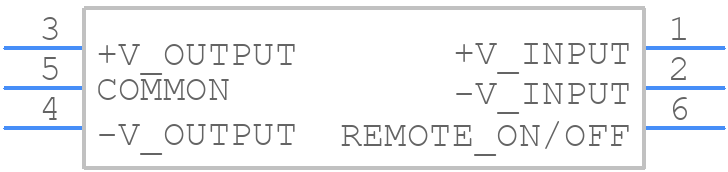

EC9BW-24D12 Details

• Manufacturer Part Number:

  EC9BW-24D12

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Active

• Package Description:

  MODULE-6

• ECCN Code:

  EAR99

• Manufacturer:

  Cincon Electronics Corporation

• YTEOL:

  7

• Additional Feature:

  ALSO HAS -12V OUTPUT

• Analog IC - Other Type:

  DC-DC REGULATED POWER SUPPLY MODULE

• Approvals:

  EN, IEC, UL

• Efficiency (Main Output):

  90.5%

• Input Voltage-Max:

  36 V

• Input Voltage-Min:

  9 V

• Input Voltage-Nom:

  24 V

• JESD-30 Code:

  R-MDMA-P6

• Length:

  50.8 mm

• Line Regulation-Max:

  0.5%

• Load Regulation-Max:

  1%

• Number of Functions:

  1

• Number of Outputs:

  2

• Number of Terminals:

  6

• Operating Temperature-Max:

  85 °C

• Operating Temperature-Min:

  -40 °C

• Output Current-Max:

  1.25 A

• Output Voltage-Max:

  12.12 V

• Output Voltage-Min:

  11.88 V

• Output Voltage-Nom:

  12 V

• Package Body Material:

  METAL

• Package Code:

  DMA

• Package Shape:

  RECTANGULAR

• Package Style:

  MICROELECTRONIC ASSEMBLY

• Peak Reflow Temperature (Cel):

  NOT SPECIFIED

• Protections:

  OUTPUT OVER CURRENT; OUTPUT OVER VOLTAGE

• Ripple Voltage (Main Out):

  0.03535 Vrms

• Seated Height-Max:

  11.2 mm

• Surface Mount:

  NO

• Switching Frequency-Max:

  430 kHz

• Technology:

  HYBRID

• Temperature Grade:

  INDUSTRIAL

• Terminal Form:

  PIN/PEG

• Terminal Position:

  DUAL

• Time@Peak Reflow Temperature-Max (s):

  NOT SPECIFIED

• Total Power Output-Max:

  30 W

• Trim/Adjustable Output:

  NO

• Warm-up Time:

  0.005 s

• Width:

  25.4 mm
