ECC-008-R100-95 - E-TEC

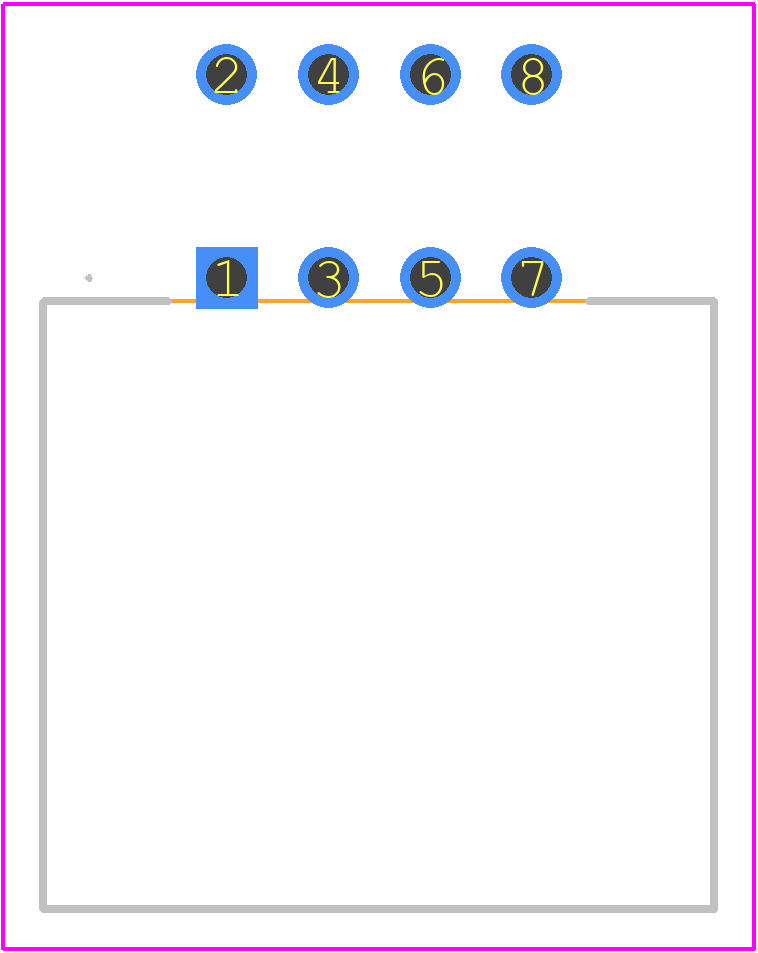

ECC-008-R100-95 Details

• Manufacturer Part Number:

  ECC-008-R100-95

• Rohs Code:

  Yes

• Part Life Cycle Code:

  Contact Manufacturer

• ECCN Code:

  EAR99

• HTS Code:

  8536.69.40.40

• Manufacturer:

  E-tec Interconnect Ltd

• Body Breadth:

  0.358 inch

• Body Depth:

  0.822 inch

• Body Length:

  0.66 inch

• Body/Shell Style:

  PLUG

• Connector Type:

  CARD EDGE CONNECTOR

• Contact Finish Termination:

  TIN

• Contact Material:

  BRASS

• Contact Pattern:

  RECTANGULAR

• Contact Resistance:

  20 mΩ

• Contact Style:

  BELLOWED TYPE

• Dielectric Withstanding Voltage:

  500VAC V

• Filter Feature:

  NO

• Insulation Resistance:

  1000000000 Ω

• Insulator Material:

  POLYBUTYLENE TEREPHTHALATE

• JESD-609 Code:

  e3

• Mating Contact Pitch:

  0.1 inch

• Mating Contact Row Spacing:

  0.2 inch

• Mixed Contacts:

  NO

• Mounting Option 1:

  LOCKING

• Mounting Style:

  RIGHT ANGLE

• Mounting Type:

  BOARD

• Number Of Connectors:

  ONE

• Number Of PCB Rows:

  2

• Number of Rows Loaded:

  2

• Operating Temperature-Max:

  105 °C

• Operating Temperature-Min:

  -40 °C

• PCB Contact Pattern:

  RECTANGULAR

• PCB Contact Row Spacing:

  5.08 mm

• Rated Current (Signal):

  3 A

• Reference Standard:

  UL

• Terminal Length:

  0.13 inch

• Terminal Pitch:

  2.54 mm

• Termination Type:

  SOLDER

• Total Number of Contacts:

  8

• Withdrawl Force-Min:

  .278 N
