ECG.0B.309.CLV footprint, schematic symbol and 3D model by LEMO

Symbol

click to zoom

PCB Footprints

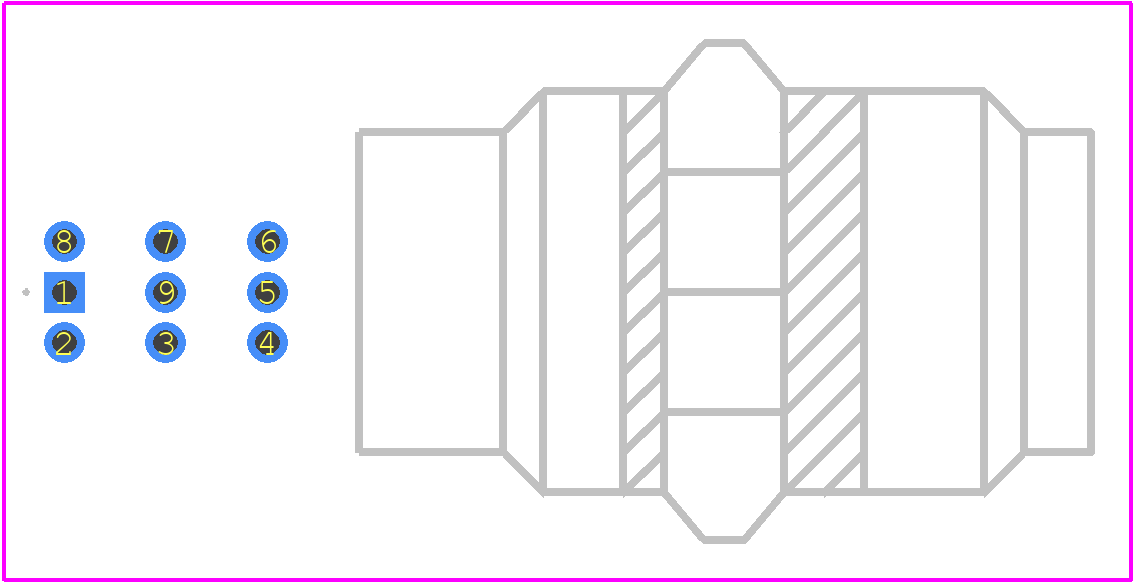

ECG.0B.309.CLV - LEMO PCB footprint - Other - Other - ECG.0B.309.CLV-3

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECG.0B.309.CLV
Part Number ECG.0B.309.CLV
Manufacturer LEMO
Pin Count 9
Part Category Connector
Package Category Other
Footprint Name Other - ECG.0B.309.CLV-3
Released Date Jun 12, 2023
Last Modified Date May 12, 2026 2:59 PM UTC
Pinout / Pin List Click Here (Member Only)

ECG.0B.309.CLV Details

Manufacturer Part Number:
ECG.0B.309.CLV
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Switzerland
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
LEMO connectors
YTEOL:
8.57
Additional Feature:
POLARIZED, SHIELDED
Backshell Type:
SOLID
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
SNAP
DIN Conformance:
NO
Empty Shell:
NO
Environmental Characteristics:
CORROSION/MOISTURE RESISTANT
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
CABLE AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
CHROME PLATED
Shell Material:
BRASS
Termination Type:
SOLDER
Total Number of Contacts:
9

ECG.0B.309.CLV Frequently Asked Questions (FAQs)

The recommended torque for tightening the ECG.0B.309.CLV connector is 0.4 Nm to 0.6 Nm (0.3 in-lbs to 0.5 in-lbs).
Yes, the ECG.0B.309.CLV connector is designed to withstand high-vibration environments and is commonly used in aerospace, defense, and industrial applications.
The ECG.0B.309.CLV connector is designed to operate in temperatures ranging from -55°C to 125°C (-133°F to 257°F) and can withstand humidity up to 95% RH. However, it's recommended to consult with LEMO's technical support for specific environmental requirements.
The ECG.0B.309.CLV connector is rated for up to 500 mating cycles, depending on the application and environmental conditions.
The ECG.0B.309.CLV connector is compatible with certain sterilization methods, but it's recommended to consult with LEMO's technical support to determine the best approach for your specific application.

Trust Checks

Community Provided

System Verified

Community Approved

ECG.0B.309.CLV Overview

Use the download button to access the ECG.0B.309.CLV schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ECG.0, or try a keyword search, such as Other Circular Connectors

About LEMO

LEMO is a global manufacturer of fiber optic connectors used in medical, industrial, telecommunications, defense, test and measurement, and audio/visual applications. LEMO is known for their push-pull self latching connectors. LEMO is headquartered in Switzerland.
