ECG.2B.308.CLV footprint, schematic symbol and 3D model by LEMO

Symbol

click to zoom

PCB Footprints

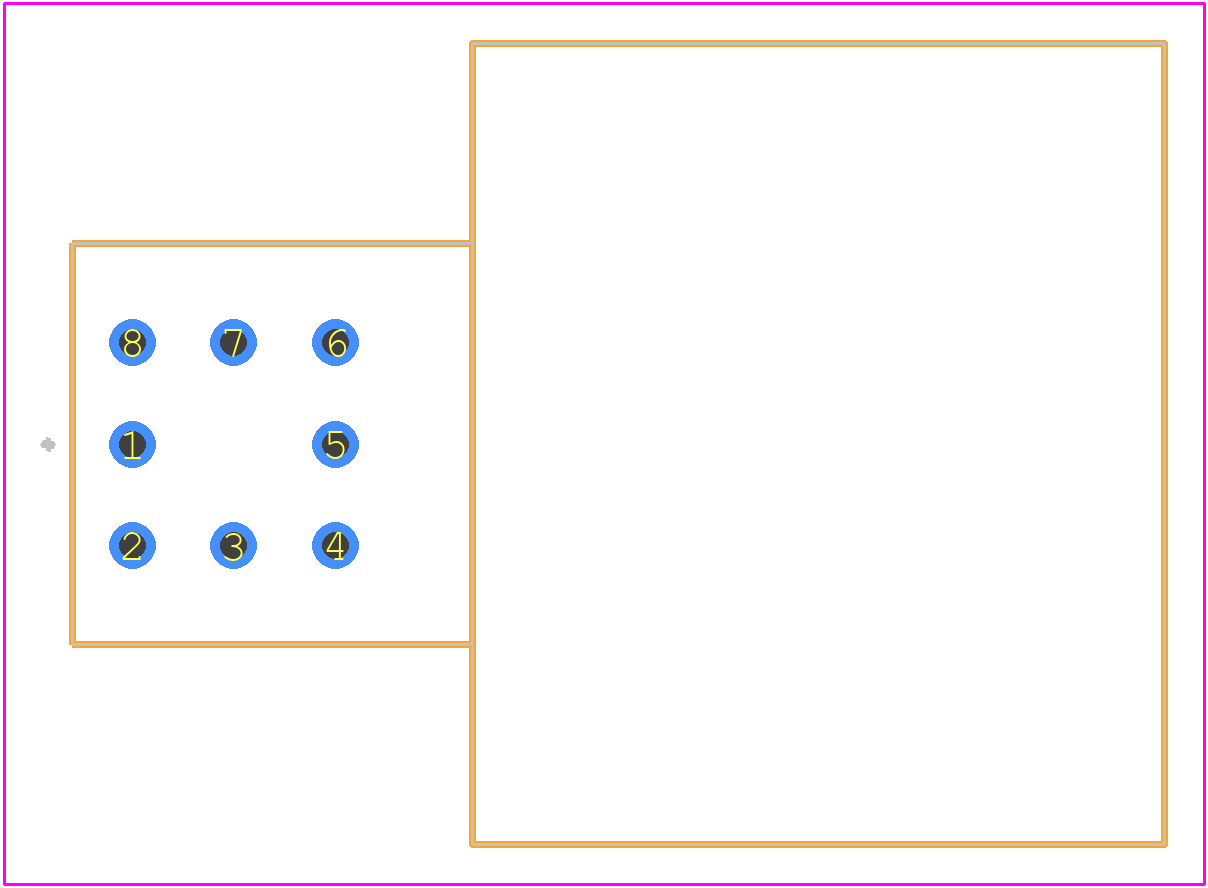

ECG.2B.308.CLV - LEMO PCB footprint - Other - Other - ECG.2B.308.CLV-2

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for ECG.2B.308.CLV
Part Number ECG.2B.308.CLV
Manufacturer LEMO
Pin Count 8
Part Category Connector
Package Category Other
Footprint Name Other - ECG.2B.308.CLV-2
Released Date Dec 3, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

ECG.2B.308.CLV Details

Manufacturer Part Number:
ECG.2B.308.CLV
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Switzerland
ECCN Code:
EAR99
HTS Code:
8536.69.40.20
Manufacturer:
LEMO connectors
YTEOL:
8.38
Additional Feature:
POLARIZED
Backshell Type:
SOLID
Body/Shell Style:
RECEPTACLE
Connector Type:
CIRCULAR CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Gender:
FEMALE
Contact Material:
NOT SPECIFIED
Coupling Type:
THREADED
DIN Conformance:
NO
Empty Shell:
NO
Filter Feature:
NO
IEC Conformance:
NO
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Type:
BOARD AND PANEL
Option:
GENERAL PURPOSE
Shell Finish:
CHROMATE PLATED
Shell Material:
BRASS
Shell Size:
2
Termination Type:
SOLDER
Total Number of Contacts:
8

ECG.2B.308.CLV Frequently Asked Questions (FAQs)

The recommended torque value is 0.4 Nm (3.5 lbf.in) for the ECG.2B.308.CLV connector.
Yes, the ECG.2B.308.CLV connector is designed to withstand high-vibration environments and is suitable for applications where vibration is a concern.
Yes, the ECG.2B.308.CLV connector is designed to operate in harsh environments, including high temperatures (up to 150°C) and high humidity (up to 95% RH).
The maximum cable diameter that can be used with the ECG.2B.308.CLV connector is 2.5 mm (0.098 in).
Yes, the ECG.2B.308.CLV connector is compatible with sterilization processes, including autoclaving and gamma radiation, making it suitable for medical applications.

Trust Checks

Expert Contribution

System Verified

Community Approved

ECG.2B.308.CLV Overview

Use the download button to access the ECG.2B.308.CLV schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like ECG.2, or try a keyword search, such as Other Circular Connectors

About LEMO

LEMO is a global manufacturer of fiber optic connectors used in medical, industrial, telecommunications, defense, test and measurement, and audio/visual applications. LEMO is known for their push-pull self latching connectors. LEMO is headquartered in Switzerland.
