ECH350R-12P - Dinkle

Description: PCB Connector – Socket, Wave soldering, 500MΩ at DC 500V, 320v, 14A, -40°C + 120°C

Download ECH350R-12P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECH350R-12P - Dinkle - PCB symbol
click to zoom
PCB Footprints

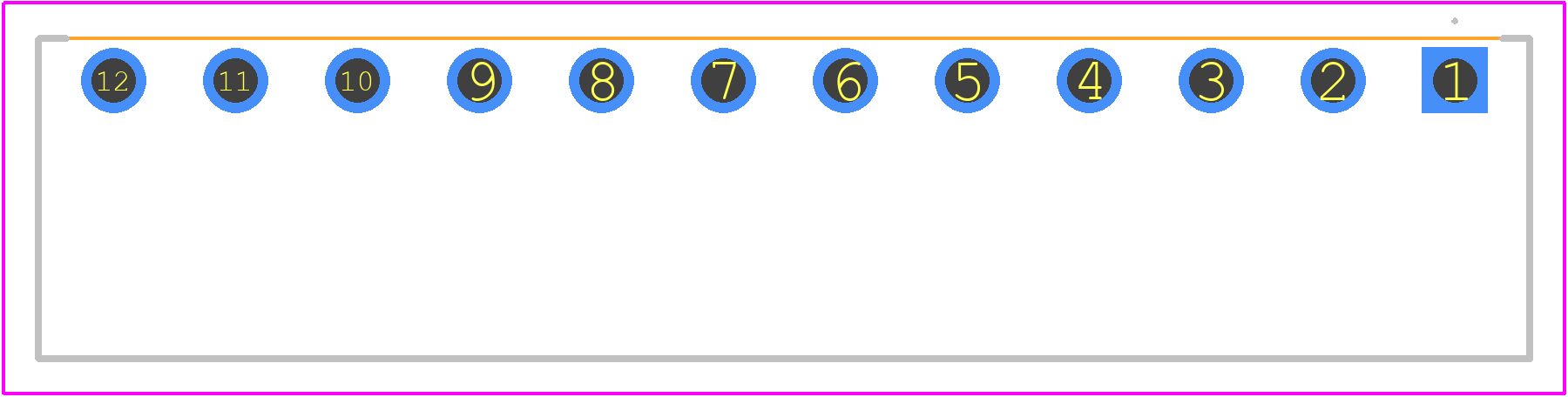

ECH350R-12P - Dinkle PCB footprint - Other - Other - ECH350R-12P-5
click to zoom
3D Models
ECH350R-12P - Dinkle - 3D model - Other - ECH350R-12P-5
click to zoom

ECH350R-12P Details

  • Manufacturer Part Number:

    ECH350R-12P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    7.94

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    12

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

ECH350R-12P Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.8 Nm (5-8 in-lbs) for the screws on the ECH350R-12P connector.
  • Yes, the ECH350R-12P connector is designed for outdoor use and has an IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
  • Yes, the ECH350R-12P connector is designed to withstand vibrations up to 10G (10 Hz to 2000 Hz) and is suitable for use in high-vibration applications.
  • The operating temperature range of the ECH350R-12P connector is -40°C to 125°C (-40°F to 257°F).
  • Yes, the ECH350R-12P connector meets the requirements of UL 1977 and CE IEC 61076-2-012 standards.
