ECH350V-08P - Dinkle

Description: 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical - Through Hole

Download ECH350V-08P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECH350V-08P - Dinkle - PCB symbol
click to zoom
PCB Footprints

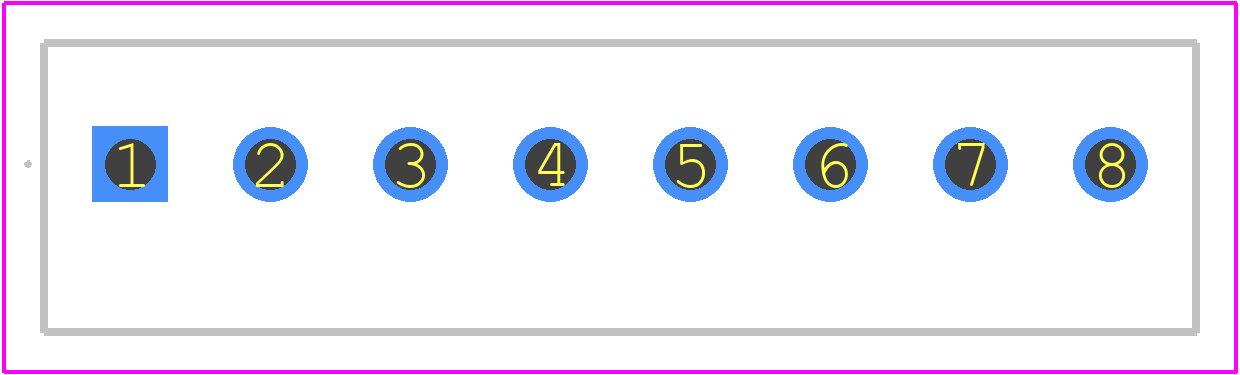

ECH350V-08P - Dinkle PCB footprint - Other - Other - ECH350V-08P-3
click to zoom
3D Models
ECH350V-08P - Dinkle - 3D model - Other - ECH350V-08P-3
click to zoom

ECH350V-08P Details

  • Manufacturer Part Number:

    ECH350V-08P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    7.91

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CE; CUL; IEC; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

ECH350V-08P Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.8 Nm (5-8 in-lbs) for the screws on the ECH350V-08P connector.
  • Yes, the ECH350V-08P connector is designed to be waterproof and dustproof, making it suitable for outdoor use. However, it's essential to follow the recommended installation and sealing procedures to ensure the connector's environmental rating is maintained.
  • Yes, the ECH350V-08P connector is designed to withstand vibrations and shocks. However, it's recommended to follow the manufacturer's guidelines for vibration testing and to ensure proper mounting and securing of the connector to prevent damage.
  • The operating temperature range for the ECH350V-08P connector is -40°C to 125°C (-40°F to 257°F). However, it's essential to note that the connector's performance and lifespan may be affected by extreme temperatures.
  • The ECH350V-08P connector is designed to be compatible with other connectors that meet the same industry standards (e.g., IEC 61076-2-101). However, it's recommended to verify compatibility with the specific connector model and manufacturer before use.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECH350V-08P Overview

Use the download button to access the ECH350V-08P schematic symbol, PCB footprint, and 3D model.
