ECH350V-09P - Dinkle

Description: ECH350V-09P Dinkle Headers for pluggable terminal blocks 3.50mm 300V 8A Share |

Download ECH350V-09P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECH350V-09P - Dinkle - PCB symbol
click to zoom
PCB Footprints

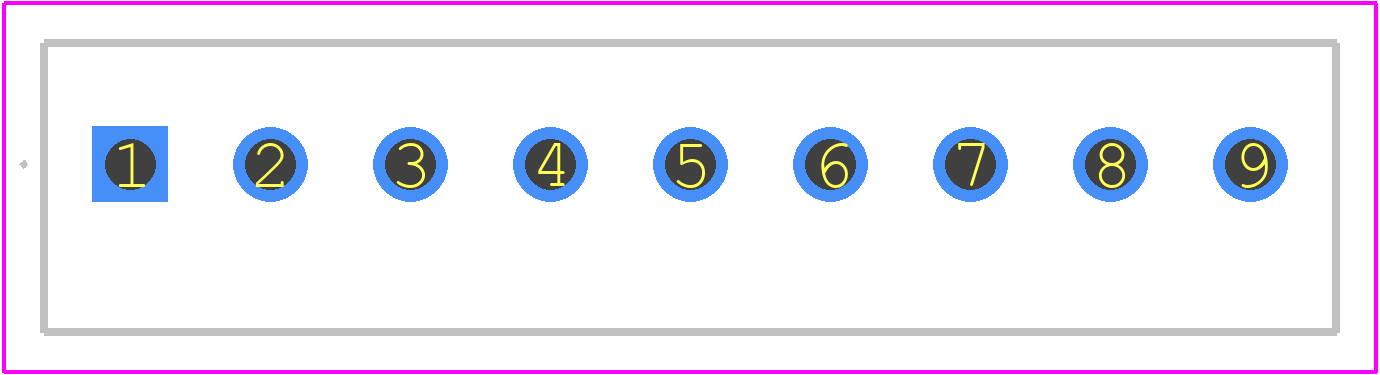

ECH350V-09P - Dinkle PCB footprint - Other - Other - ECH350V-09P-2
click to zoom
3D Models
ECH350V-09P - Dinkle - 3D model - Other - ECH350V-09P-2
click to zoom

ECH350V-09P Details

  • Manufacturer Part Number:

    ECH350V-09P

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    7.94

  • Additional Feature:

    STANDARD: UL 94V-0, POLYAMIDE

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    9

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CE; CUL; IEC; UL; VDE

  • Terminal Gender:

    MALE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK
