- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ECH381R-10P
- Part Number ECH381R-10P
- Manufacturer Dinkle
- Pin Count 10
- Part Category Connector
- Package Category Header, Shrouded - Right Angle PTH Box

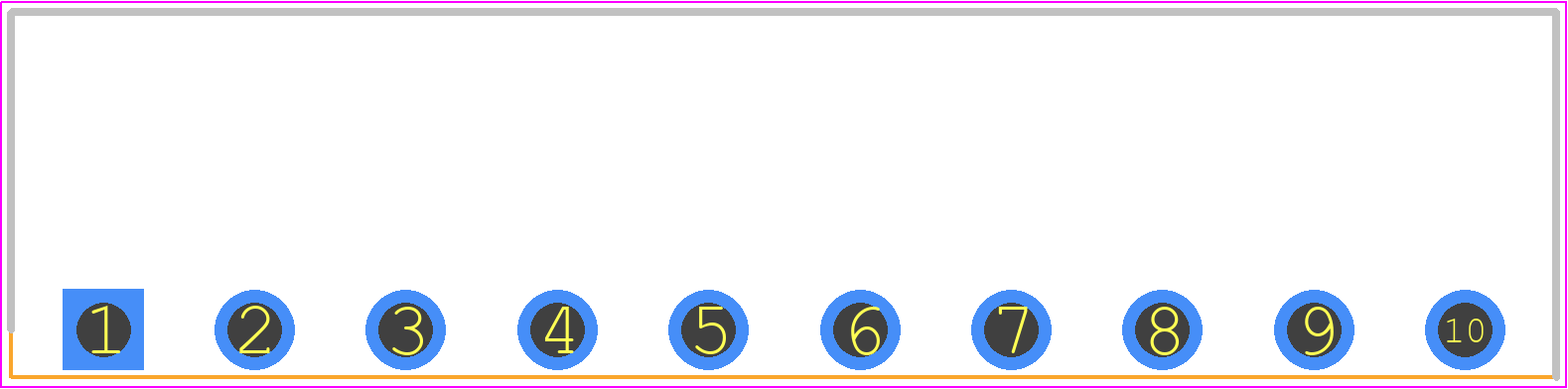

- Footprint Name Header, Shrouded - Right Angle PTH Box - ECH381R-10P
- Released Date Dec 30, 2024
- Last Modified Date Dec 30, 2024 5:11 AM UTC
- Pinout / Pin List Click Here (Member Only)
ECH381R-10P Details
-
Manufacturer Part Number:
ECH381R-10P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Dinkle Enterprises
-
YTEOL:
7.94
-
Additional Feature:
STANDARD: UL 94V-0, POLYAMIDE
-
Fastening Method:
CONNECTOR
-
Mounting Type:
BOARD
ECH381R-10P Frequently Asked Questions (FAQs)
-
The recommended torque value for the screw terminals of ECH381R-10P is 0.5-0.8 Nm (5-8 in-lbs).
-
Yes, the ECH381R-10P is designed to withstand vibrations up to 10G (IEC 60068-2-6) and is suitable for use in high-vibration environments.
-
Yes, the ECH381R-10P meets the UL94-V0 flammability rating, making it suitable for use in applications that require this level of flammability resistance.
-
The ECH381R-10P has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
-
The ECH381R-10P has a IP67 rating, which means it is protected against dust and water ingress, making it suitable for use in humid or wet environments.
Trust Checks
Community Provided
System Verified
Community Approved
ECH381R-10P Overview
Use the download button to access the ECH381R-10P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECH38,
or try a keyword search, such as Terminals and Terminal Blocks
