ECH381V-08P - Dinkle

Description: 8 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole

Download ECH381V-08P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECH381V-08P - Dinkle - PCB symbol
click to zoom
PCB Footprints

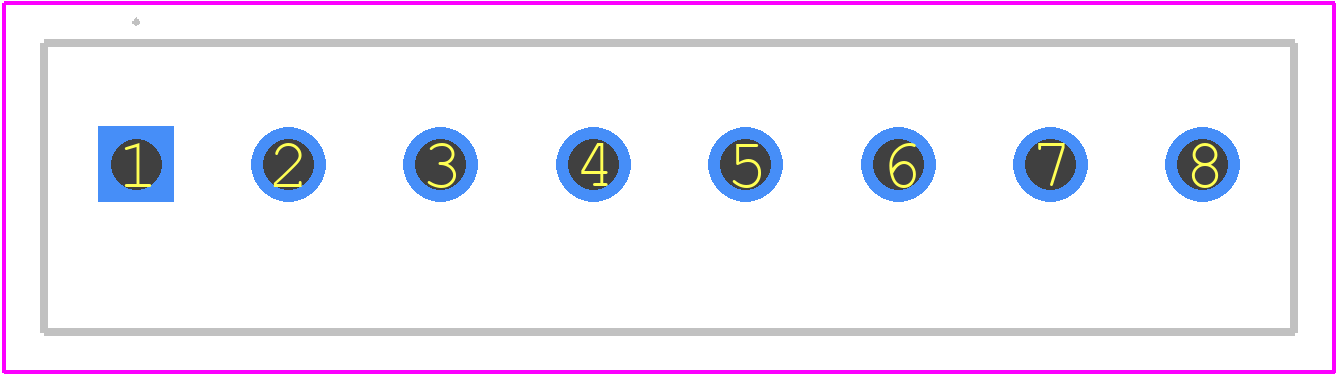

ECH381V-08P - Dinkle PCB footprint - Other - Other - ECH381V-08P-2
click to zoom
3D Models
ECH381V-08P - Dinkle - 3D model - Other - ECH381V-08P-2
click to zoom

ECH381V-08P Details

  • Manufacturer Part Number:

    ECH381V-08P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    7.91

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    8

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

ECH381V-08P Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of ECH381V-08P is 0.5-0.8 Nm (5-8 in-lbs).
  • Yes, the ECH381V-08P is designed to withstand vibrations up to 10G (10-2000Hz) and is suitable for use in high-vibration environments.
  • Yes, the ECH381V-08P meets the UL94-V0 flammability rating, making it suitable for use in applications that require this level of flammability resistance.
  • The ECH381V-08P has an operating temperature range of -40°C to 125°C (-40°F to 257°F), making it suitable for use in a wide range of applications.
  • The ECH381V-08P has a moisture resistance rating of IP67, meaning it can withstand immersion in water up to 1 meter (3.3 feet) for 30 minutes. However, it's recommended to follow proper sealing and installation procedures to ensure optimal performance.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

ECH381V-08P Overview

Use the download button to access the ECH381V-08P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECH38, or try a keyword search, such as Terminals and Terminal Blocks
