ECH381V-10P - Dinkle

Description: 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.150" (3.81mm) Vertical Through Hole

Download ECH381V-10P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
ECH381V-10P - Dinkle - PCB symbol
click to zoom
PCB Footprints

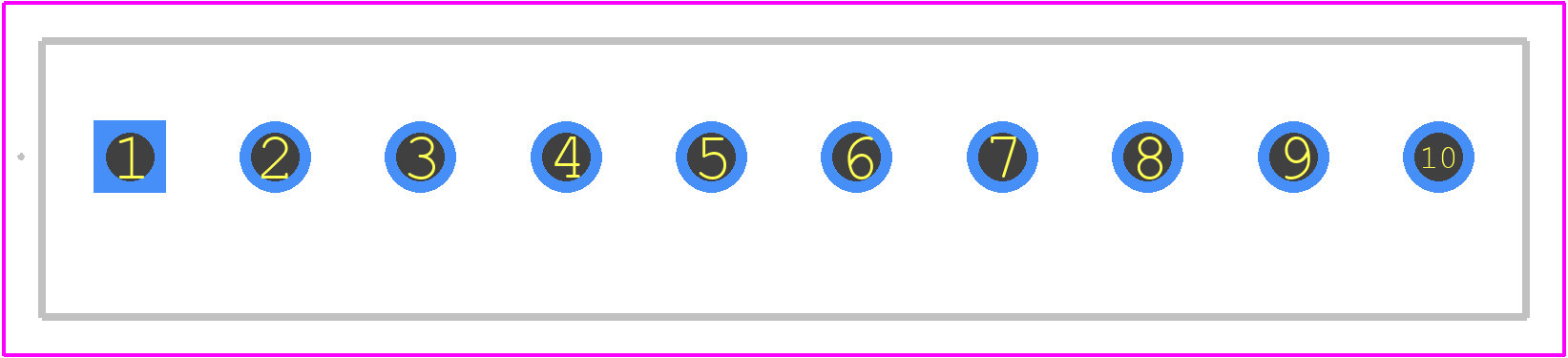

ECH381V-10P - Dinkle PCB footprint - Other - Other - ECH381V-10P-2
click to zoom
3D Models
ECH381V-10P - Dinkle - 3D model - Other - ECH381V-10P-2
click to zoom

ECH381V-10P Details

  • Manufacturer Part Number:

    ECH381V-10P

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.90.40.00

  • Manufacturer:

    Dinkle Enterprises

  • YTEOL:

    7.94

  • Fastening Method:

    CONNECTOR

  • Mounting Type:

    BOARD

  • Number of Decks:

    1

  • Number of Rows:

    1

  • Number of Ways:

    10

  • Rated Current:

    8 A

  • Rated Voltage:

    300 V

  • Safety Approval:

    CUL; UL; VDE

  • Terminal and Terminal Block Type:

    BARRIER STRIP TERMINAL BLOCK

ECH381V-10P Frequently Asked Questions (FAQs)

  • The recommended torque value is 0.5-0.8 Nm (5-8 in-lbs) for the screws on the ECH381V-10P connector.
  • Yes, the ECH381V-10P connector is suitable for outdoor use, as it has an IP67 rating, which means it can withstand dust and water ingress.
  • The operating temperature range of the ECH381V-10P connector is -40°C to 105°C (-40°F to 221°F).
  • Yes, the ECH381V-10P connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G acceleration.
  • Yes, the ECH381V-10P connector meets the requirements of UL (Underwriters Laboratories) and CE (Conformité Européene) standards.
