- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for ECH381V-12P
- Part Number ECH381V-12P
- Manufacturer Dinkle
- Pin Count 12
- Part Category Connector
- Package Category Header, Receptacle - Straight PTH Box

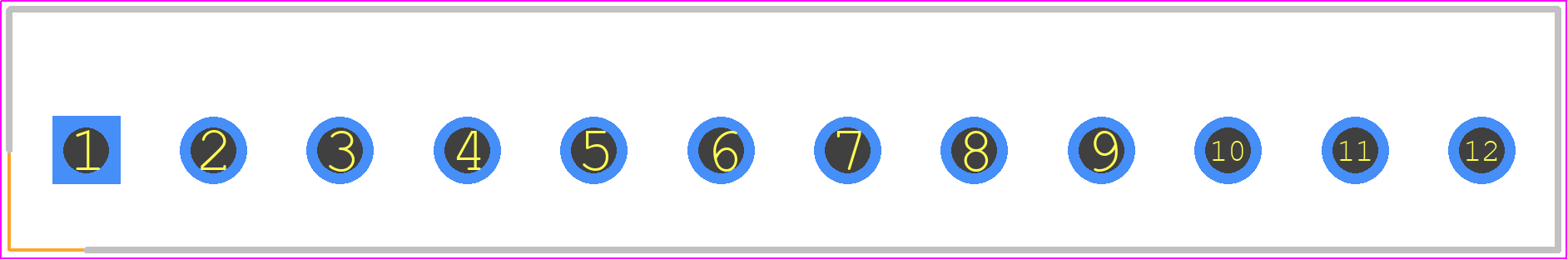

- Footprint Name Header, Receptacle - Straight PTH Box - ECH381V-12P
- Released Date Dec 30, 2024
- Last Modified Date Dec 30, 2024 4:42 AM UTC
- Pinout / Pin List Click Here (Member Only)
ECH381V-12P Details
-
Manufacturer Part Number:
ECH381V-12P
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
ECCN Code:
EAR99
-
HTS Code:
8536.90.40.00
-
Manufacturer:
Dinkle Enterprises
-
YTEOL:
7.94
-
Fastening Method:
CONNECTOR
-
Mounting Type:
BOARD
-
Number of Decks:
1
ECH381V-12P Frequently Asked Questions (FAQs)
-
The recommended torque value is 0.5-0.8 Nm (5-8 in-lbs) for the screws on the ECH381V-12P connector.
-
Yes, the ECH381V-12P connector is designed for outdoor use and has an IP67 rating, which means it can withstand dust and water immersion up to 1 meter for 30 minutes.
-
The operating temperature range of the ECH381V-12P connector is -40°C to 105°C (-40°F to 221°F).
-
Yes, the ECH381V-12P connector is designed to withstand high-vibration applications, with a vibration resistance of 10-2000 Hz, 10G acceleration.
-
Yes, the ECH381V-12P connector meets the requirements of UL (Underwriters Laboratories) and CE (Conformité Européene) standards for safety and performance.
Trust Checks
Community Provided
System Verified
Community Approved
ECH381V-12P Overview
Use the download button to access the ECH381V-12P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like ECH38,
or try a keyword search, such as Terminals and Terminal Blocks
